VESR4x4 Serial Server Model Numbering
VESR4x4 Serial Servers are a growing family of products. All models
incorporate four serial connections and, depending on the model, may have
one or two Ethernet connections with an optional fiberoptic connection.

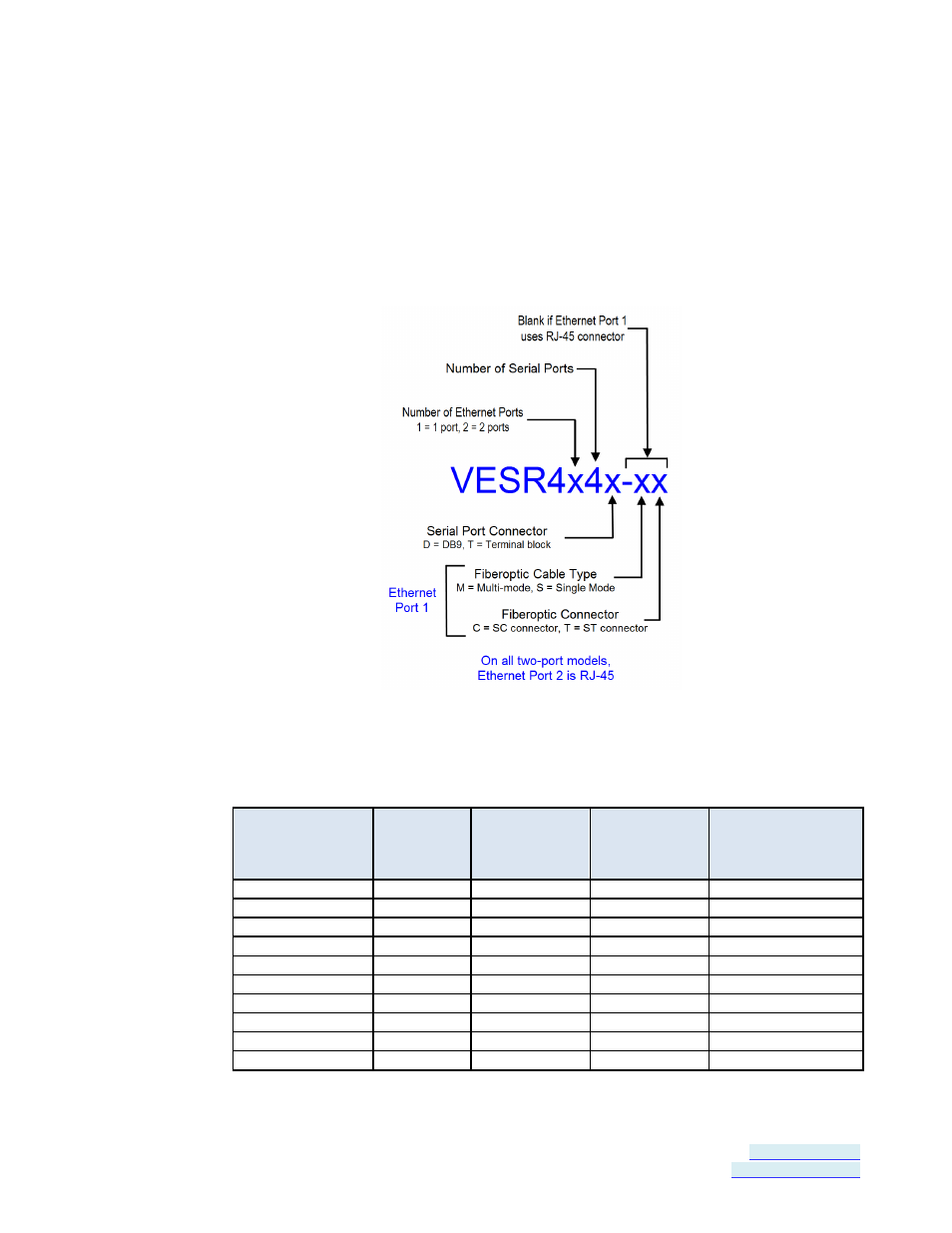

The following diagram shows the model numbering scheme:
List of VESR4x4 Serial Server Models
The following table lists the various VESR4x4 models available.
Model Number Ethernet Ports
Ethernet
Connector 1
Ethernet
Connector 2
Serial Connector (x4)
VESR424D 2 RJ-45 RJ-45 DB9 Male
VESR424D-MC 2 Multi-mode SC RJ-45 DB9 Male
VESR424D-MT 2 Multi-mode ST RJ-45 DB9 Male
VESR424D-SC 2 Single-mode SC RJ-45 DB9 Male
VESR424D-ST 2 Single-mode ST RJ-45 DB9 Male
VESR424T 2 RJ-45 RJ-45 Terminal Block
VESR424T-MC 2 Multi-mode SC RJ-45 Terminal Block
VESR424T-MT 2 Multi-mode ST RJ-45 Terminal Block
VESR424T-SC 2 Single-mode SC RJ-45 Terminal Block
VESR424T-ST 2 Single-mode ST RJ-45 Terminal Block
