Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 30 of 70
www.bb-elec.com/
www.bb-europe.com/
The status of whether the serial server is in use is updated periodically.
When a serial server's IP address is configured for a network that is not within
the local network's range, the serial server's information is displayed in a
different color (yellow)
Configuration Pane
The configuration pane is essentially a web browser.

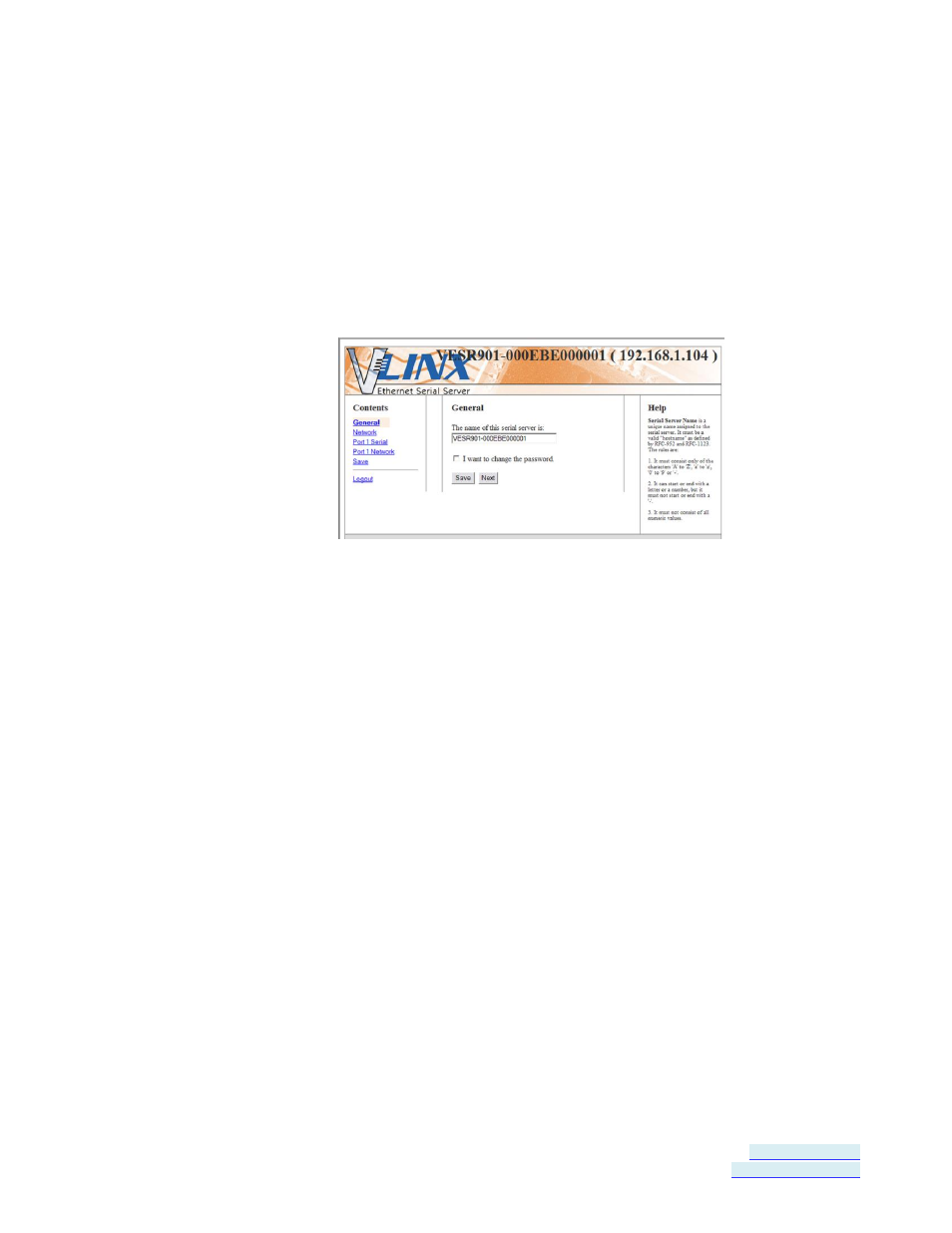

Figure 24. Configuration Pane
It includes the following:
 Masthead with the name and IP address of the currently selected serial
server
 Contents sidebar (on the left side) containing hyperlinks to the following
configuration pages:

General

Network
 Port x Serial (x = port number; each serial port connection is
represented by a hyperlink)
 Port x Network (x = port number; each serial port connection is
represented by a hyperlink)

Save

Login/Logout
 Configuration settings area in the middle of the pane where you can
select the settings desired for operation of the serial server
 Help sidebar (on the right side) containing helpful descriptions,
explanation and suggestions for configuring the serial server
