Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 40 of 70
www.bb-elec.com/
www.bb-europe.com/

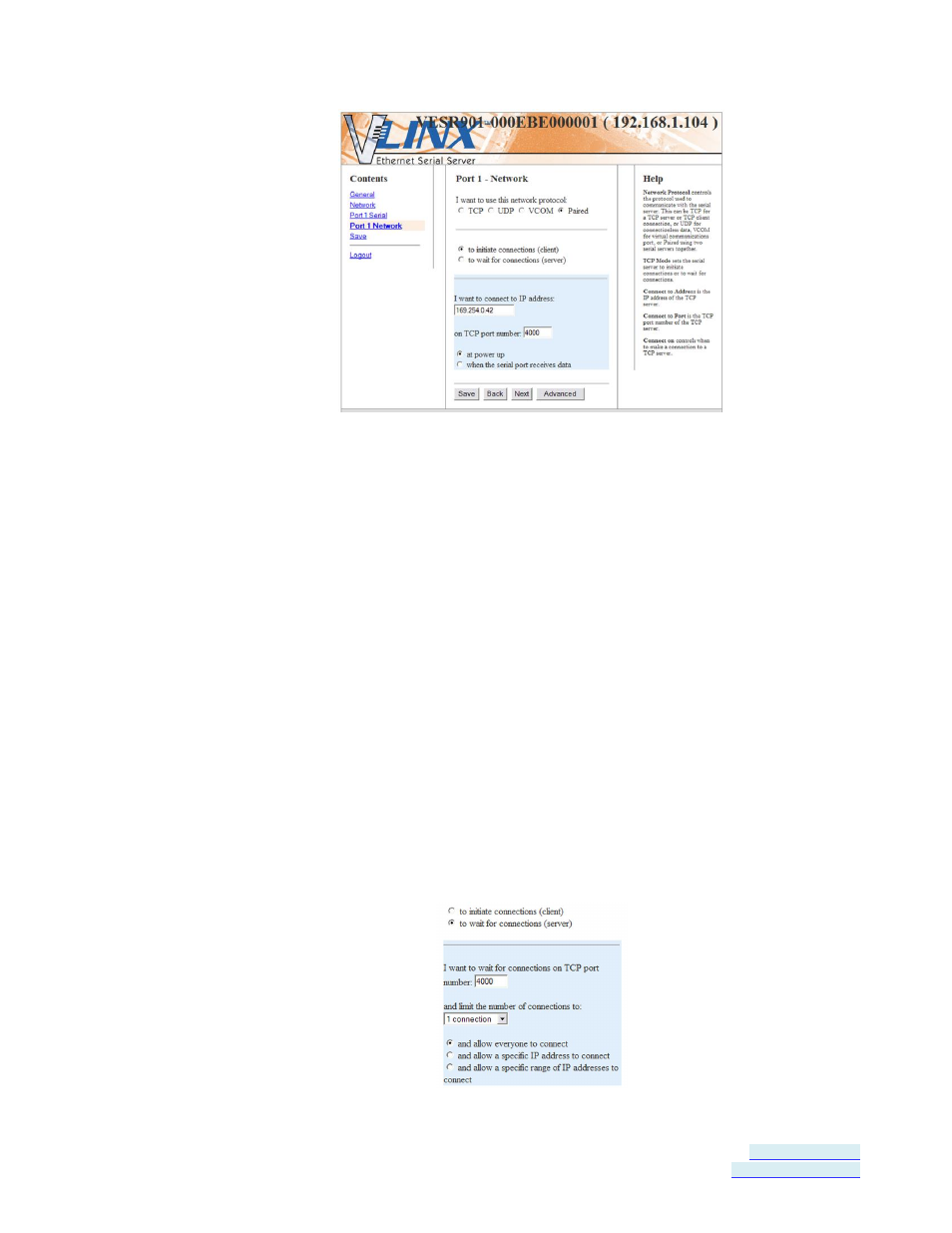

Figure 35. Paired Mode Configuration
Setting the serial server to operate in Paired Mode as a client
1. Select Paired protocol.
2. Select to initiate connections (client)
3. Type the IP address and TCP port numbers of the server in the appropriate
text boxes.
4. Select:
 at power up - if you want the serial server to always be connected

when the serial port receives data
- if you only want to establish a
connection when there is data to be sent.
Setting the serial server to operate in Paired Mode as a server
1. Select
Paired
protocol.
2. Select to wait for connections (server).
Figure 36. Paired Mode Settings
