Using the Reset Switch to Reload Factory Default Settings
Hold the Reset switch for more than ten seconds. The P1 LED illuminates for
the first two seconds; then the P2 LED illuminates. After 10 seconds the P1
and P2 LEDs will illuminate. When the switch is released, both the P1 and P2
LEDs will go out. The Ready LED will flash quickly while the serial server re-
initializes to factory default settings, and then the server will re-boot.
Ethernet Connector
Serial server models equipped with 10BaseT/100BaseTX network connections
use an RJ45 receptacle. The serial server is connected to a standard Ethernet
network drop using a straight-through RJ45 (male) Ethernet cable. Models
with a second RJ45 receptacle act as an Ethernet switch enabling the
connection of other devices to the network.

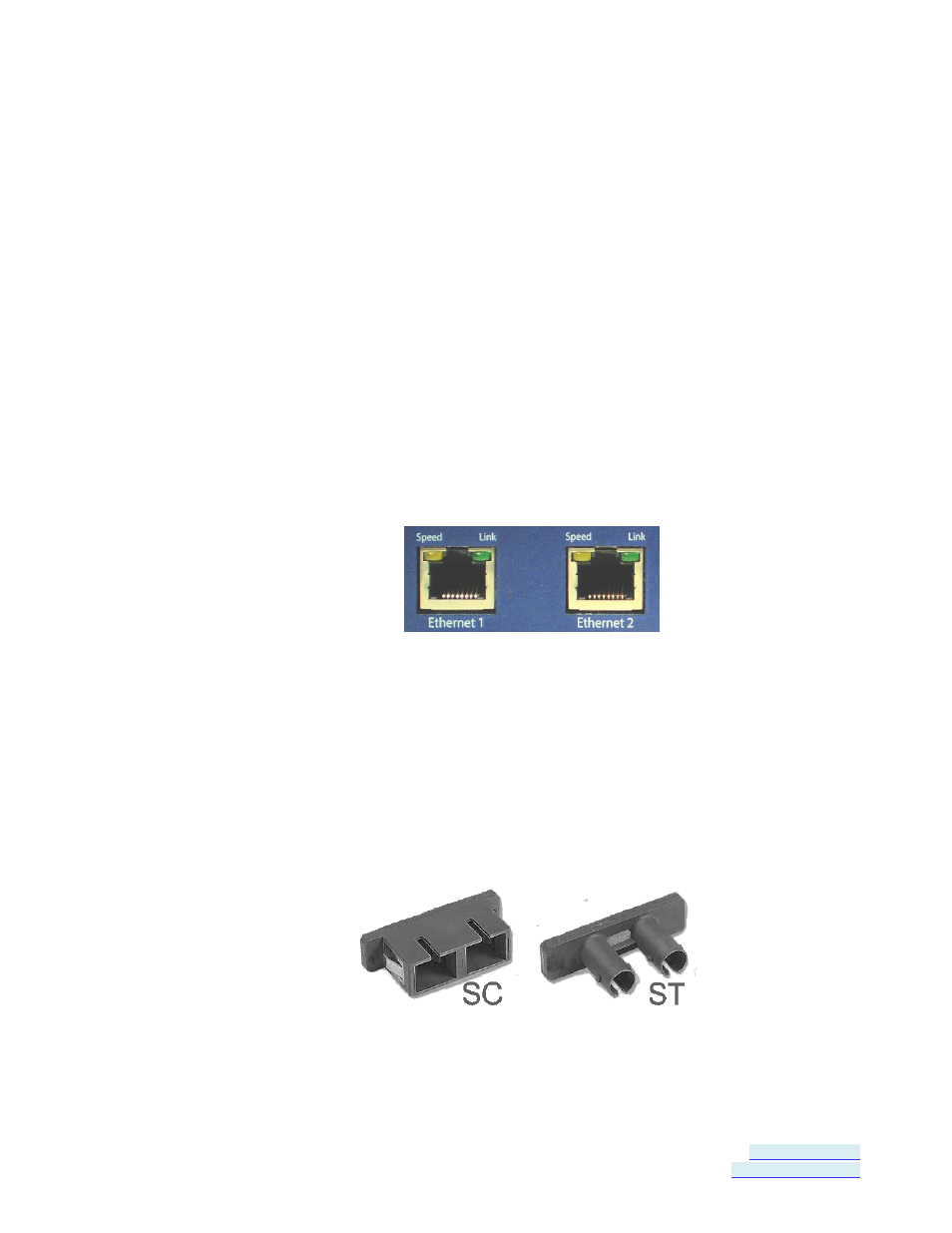

Figure 5. Ethernet Connectors
Note: Refer to Appendix D for connector pinouts.
Fiber Optic Connectors
Serial server models equipped with fiber-optic network connections use either
SC or ST connectors, depending on the specific model.
Figure 6. SC and ST Fiber Optic Cable Connectors
