Section 7 - Listing/Descriptions of Serial Server Settings Vlinx VESR4x4 Serial Server
Page 57 of 70
www.bb-elec.com/
www.bb-europe.com/
1. Method One: Change your PC Network to Match the Serial Server
a. Open the network connection on your PC

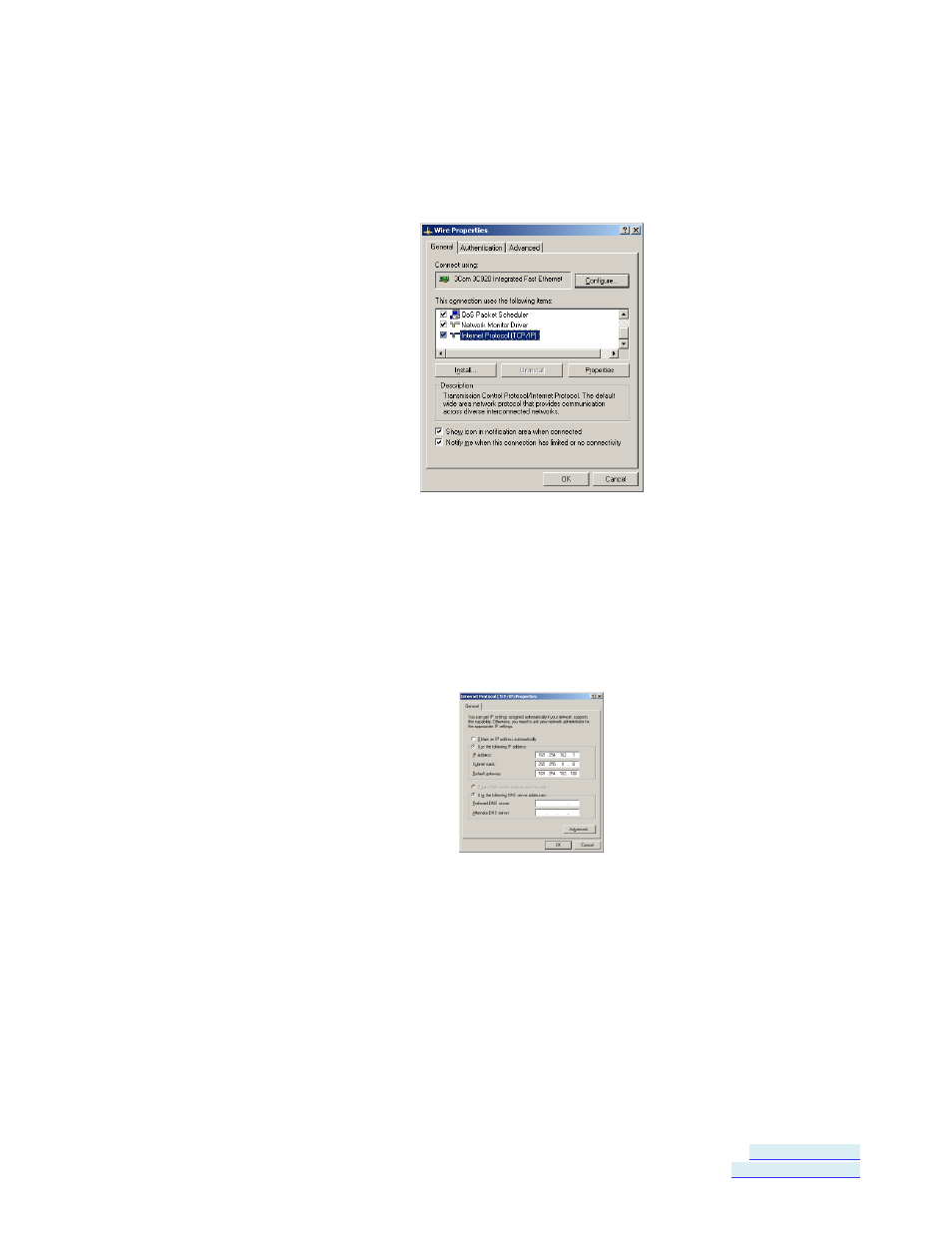

Figure 49. Network IP Properties
b. Click Internet Protocol (TCP/IP) and then click Properties . Change
the parameters to the following:
 IP Address = 169.254.102.1
 Subnet Mask = 255.255.255.0
 Default Gateway = 169.254.102.100
Figure 50. TCP/IP Properties
c. Use the Vlinx Manager Software to search for, discover, and configure
the unit.
2. Method Two: Change the serial server’s network setting to match your PC
using Console Mode
a. Connect a null modem serial cable (crossover cable) from any port on
the serial server to an available COM port on your PC.
b. Open Vlinx Manager Software and connect to the COM port used
in the previous step. Ensure the port is configured to 115,200 baud, 8
data bits, and 1 stop bit.
