Setting up Serial Ports
On the Serial Port Configuration page you can configure the communications
parameters of the current serial port. Parameters include the port mode, baud
rate, data bits, parity, stop bits and type of flow control.

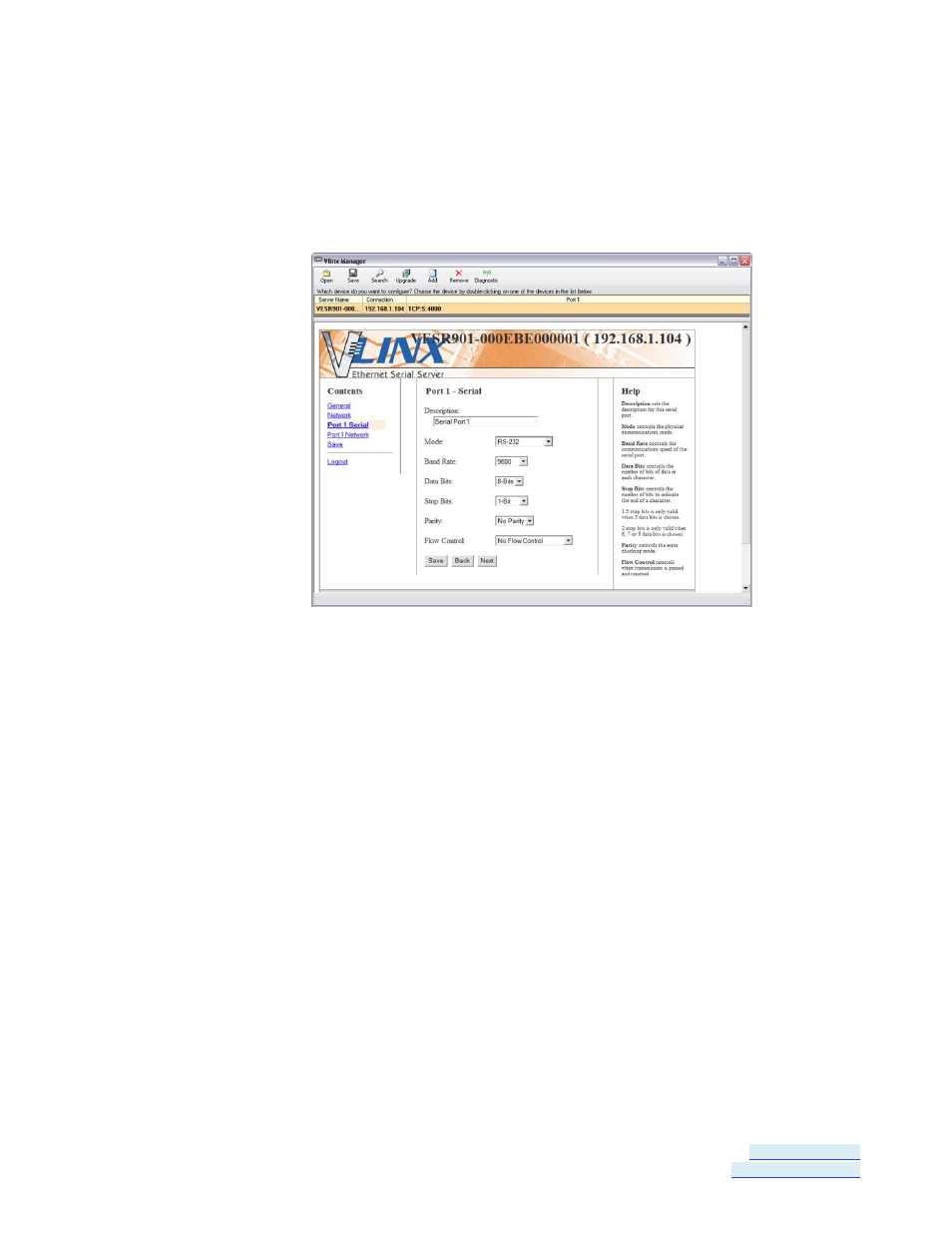

Figure 30. Serial Port Configuration Page
1. Mode - select the type of serial connection (RS-232, RS-422, RS-485 2-
wire or RS-485 4-wire) required by the serial device.
2.
Baud Rate
- select the Baud Rate (between 75 baud and 230,400 baud)
required to communicate with the serial device.
3. Data Bits - select the number of Data Bits (5, 6, 7 or 8) required to
communicate with the serial device.
4. Stop Bits - select the number of Stop Bits (1, 1.5, or 2) required to
communicate with the serial device.
5. Parity - select the Parity setting (None, Even, Odd, Mark or Space)
required to communicate with the serial device.
6. Flow Control - select the Flow Control setting (None, RTS/CTS or
XON/XOFF) required to communicate with the serial device.
Setting up Port Network Parameters
On the Port Network Parameters Configuration page you can configure the
port to use UDP, TCP. VCOM or Paired protocols in several different modes.
