Section 2 - VESR4x4 Hardware Vlinx VESR4x4 Serial Server
Page 16 of 70
www.bb-elec.com/
www.bb-europe.com/

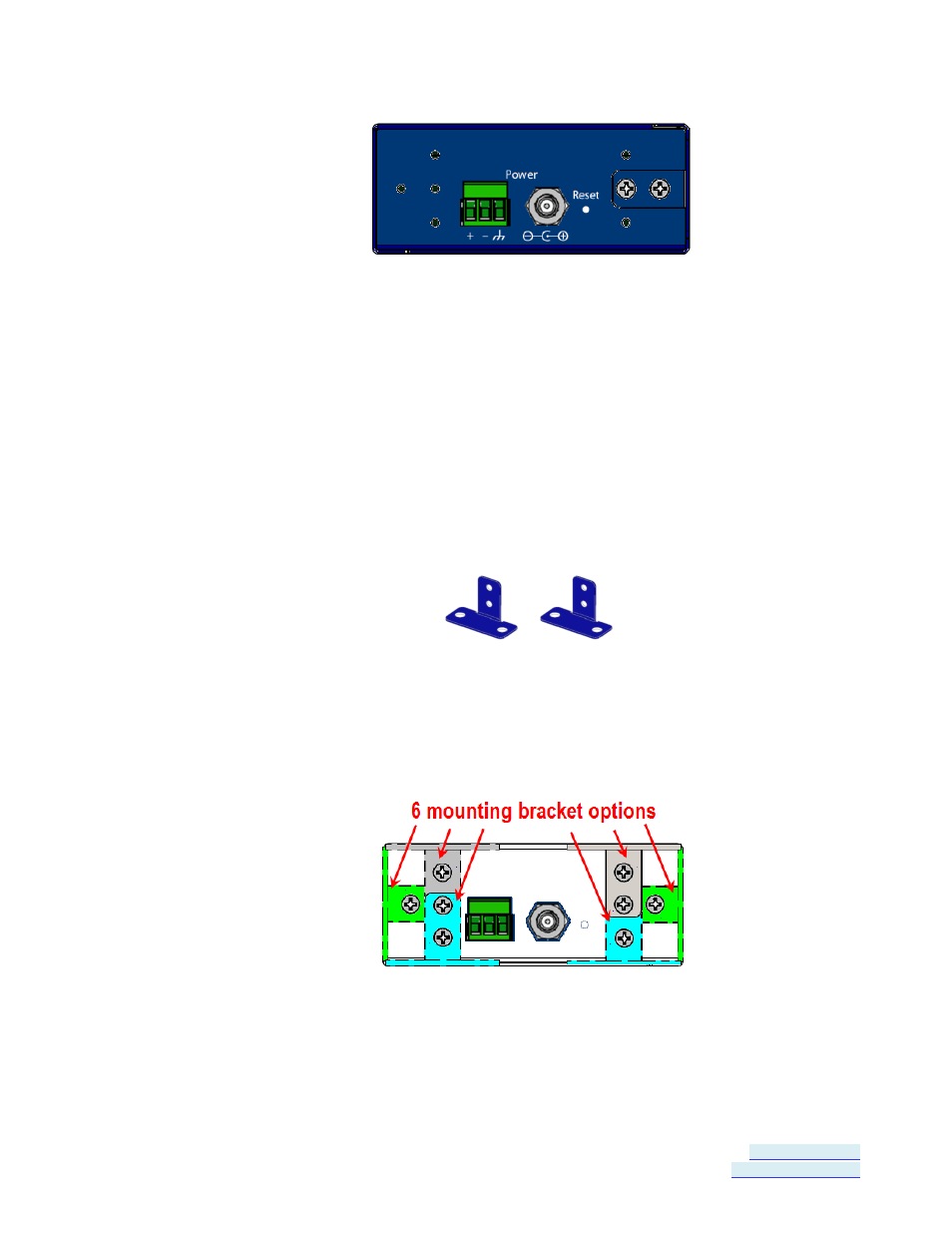

Figure 9. Power Connectors
NOTE: the terminal block must be used for Class 1 Division 2 applications; the barrel jack
cannot be used for these applications. See the specification tables for further information.
Mounting Hardware
VESR4x4 Serial Servers can be DIN rail or panel mounted. The necessary
hardware is included in the accessory kit, which also includes the screws for
attaching the mounting hardware. Two brackets are provided for mounting the
serial server flush to a panel or behind a rack-mount instrument panel.
Figure 10. Panel Mount Brackets
Each bracket is mounted using two 4-40 flat-head screws (included). The
additional threaded holes on the side of the serial server allow the unit to be
mounted in six different configurations.
Figure 11. VESR4x4 showing Panel Mount Bracket options
If extra mounting brackets are needed, they can be ordered from B&B
Electronics as Kit Number #9030.
