Section 6 - Diagnostics Vlinx VESR4x4 Serial Server
Page 52 of 70
www.bb-elec.com/
www.bb-europe.com/

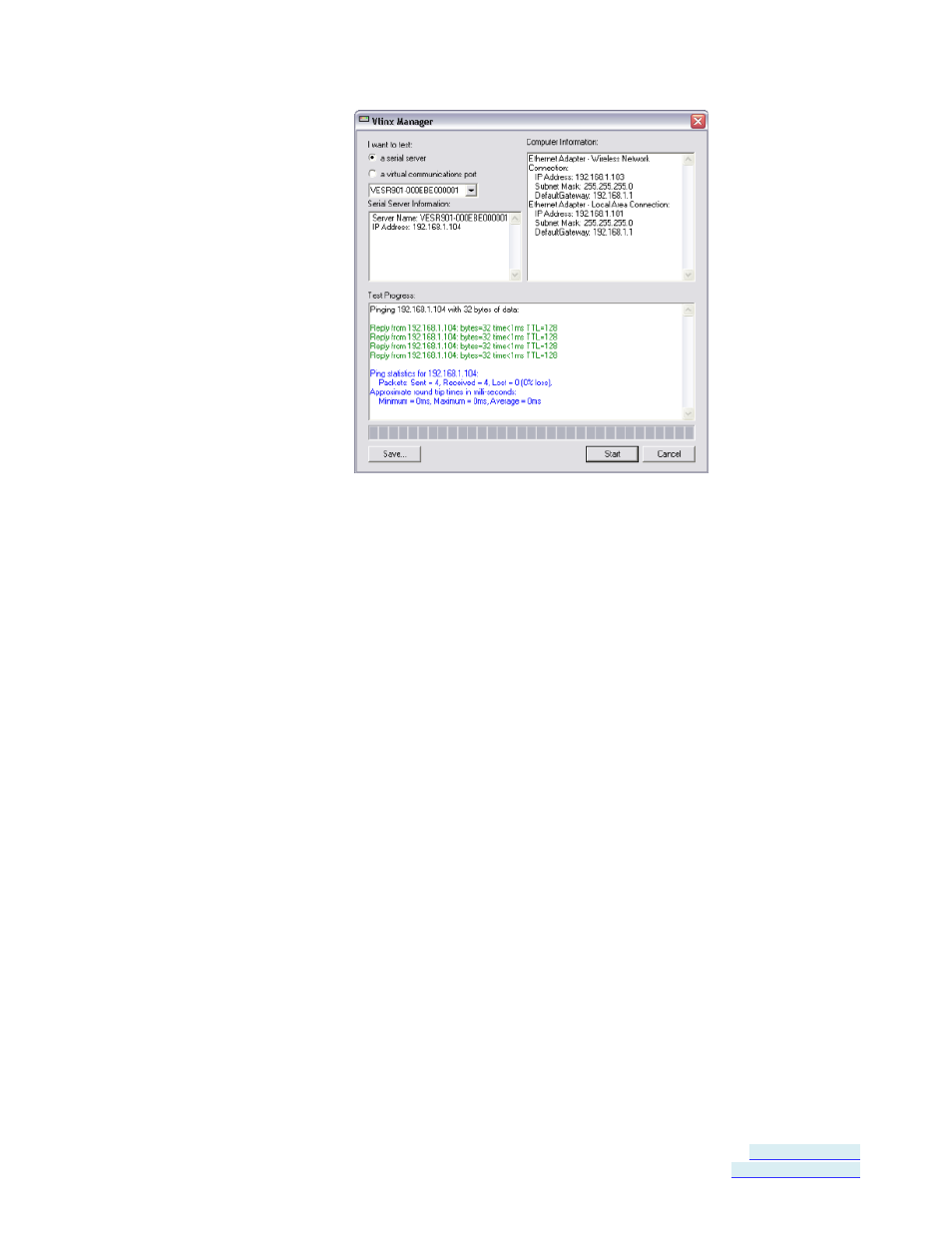

Figure 47. Testing a Serial Server Connection
Testing a Virtual COM Port
1. Click the Diagnostics icon.
The Diagnostics dialog box appears.
2. Select the option: a virtual communications port
3. In the drop down box select the specific COM port you want to check.
4. Click the Start button
Information about the progress of the pinging process is displayed in the
Test Progress box.
