Removing Virtual COM Ports
Clicking the
Remove
icon (located at the top of the Vlinx Manager
Configuration window) opens the Remove Virtual COM Port dialog box.

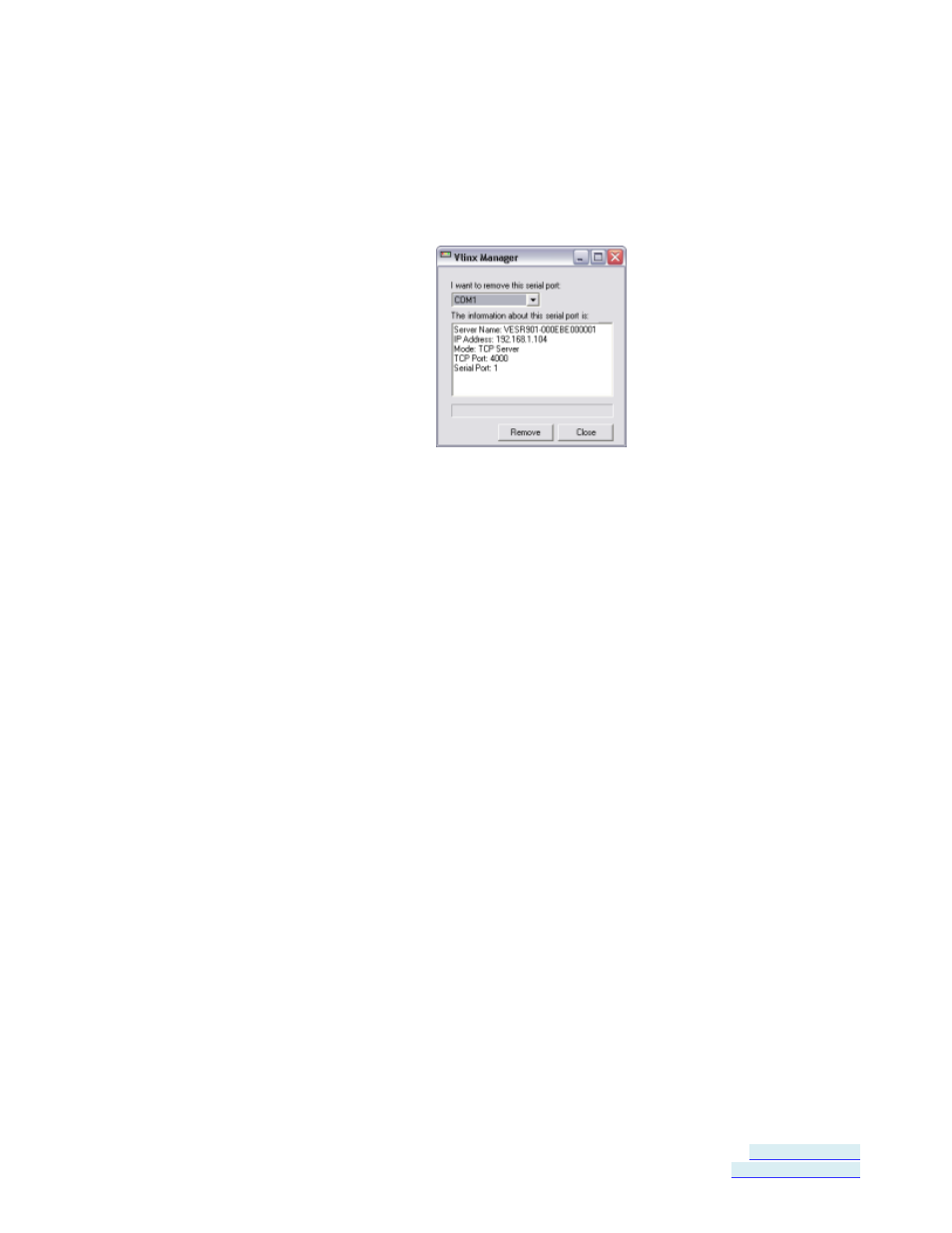

Figure 44. Remove Virtual COM Port Dialog Box
Using the drop down box you can select the virtual COM port on the local
computer. The information box displays the server name, its IP address,
operating mode and TCP port.
1. Click the Remove icon.
The Remove Virtual COM Port dialog box appears.
2. Select the COM port number you want to remove from the local computer.
3. Click the Remove button.
When the process of removing the virtual COM port is complete (indicated
by the progress bar), the
Serial port is successfully deleted dialog box
appears.
4. Click OK
