Section 3 - Installation and Initial Setup Vlinx VESR4x4 Serial Server
Page 27 of 70
www.bb-elec.com/
www.bb-europe.com/

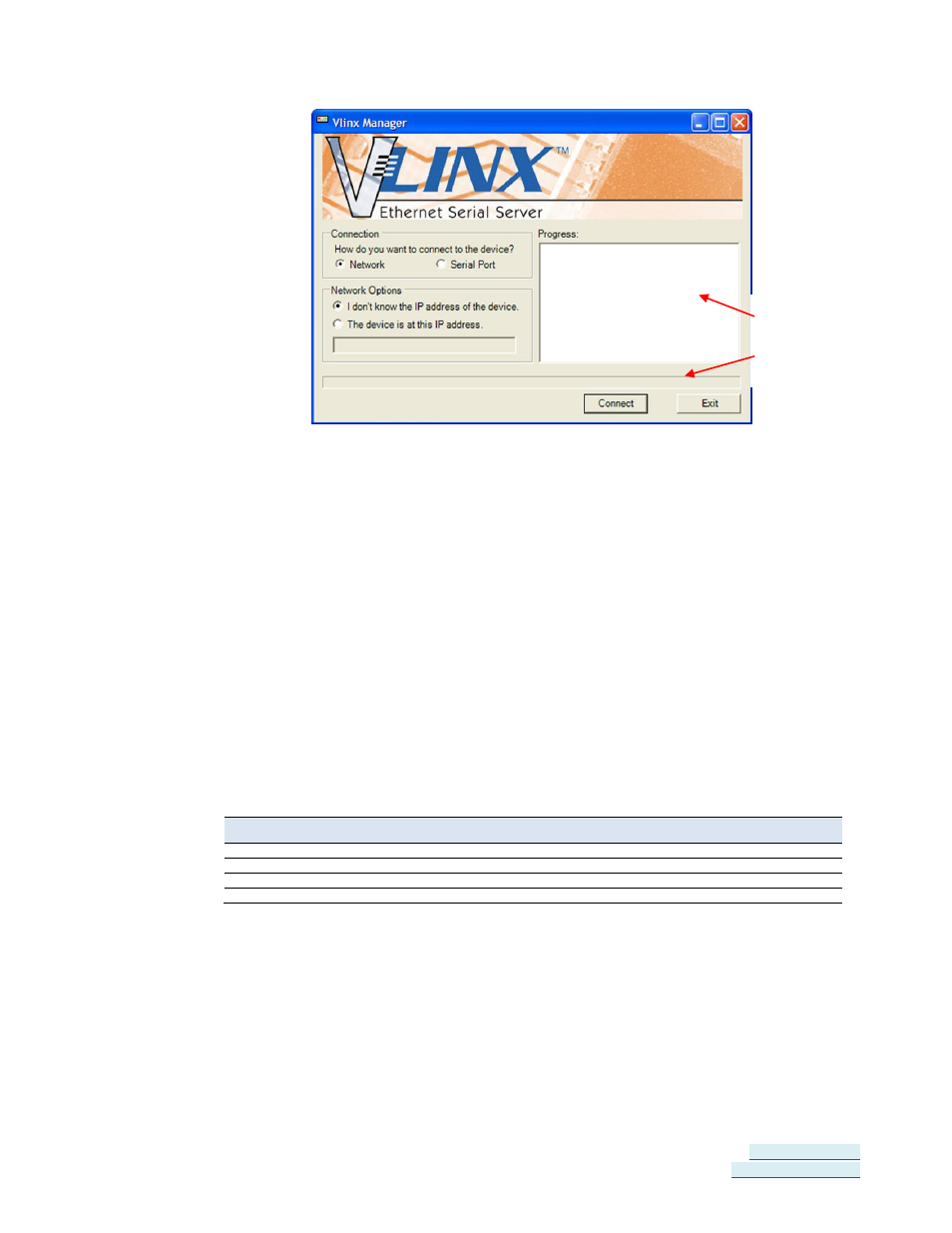

Figure 20. Discovery Window
Discovering Serial Servers
If you are configuring the serial server via the network, select
Network
; if you
are configuring it via the serial port, select Serial Port .
If you already know the IP address of the serial server, click The device is at
this IP address ; if not, leave I don’t know the IP address of the device
selected.
Click Connect . The Progress text box and bar graph provide information to
indicate whether serial servers are detected and how far along the process is.
The text in the Progress box appears in various colors, depending on the
message type.
Color Description
Black A step in the discovery process.
Dark Blue A device was not found.
Dark Green A device was found.
Dark Red An error occurred.
If one or more devices are found, the discovery window closes automatically
and the Configuration window appears.
Progress Box
Progress Bar
