6. PIN CONFIGURATION SOIC 300-MIL

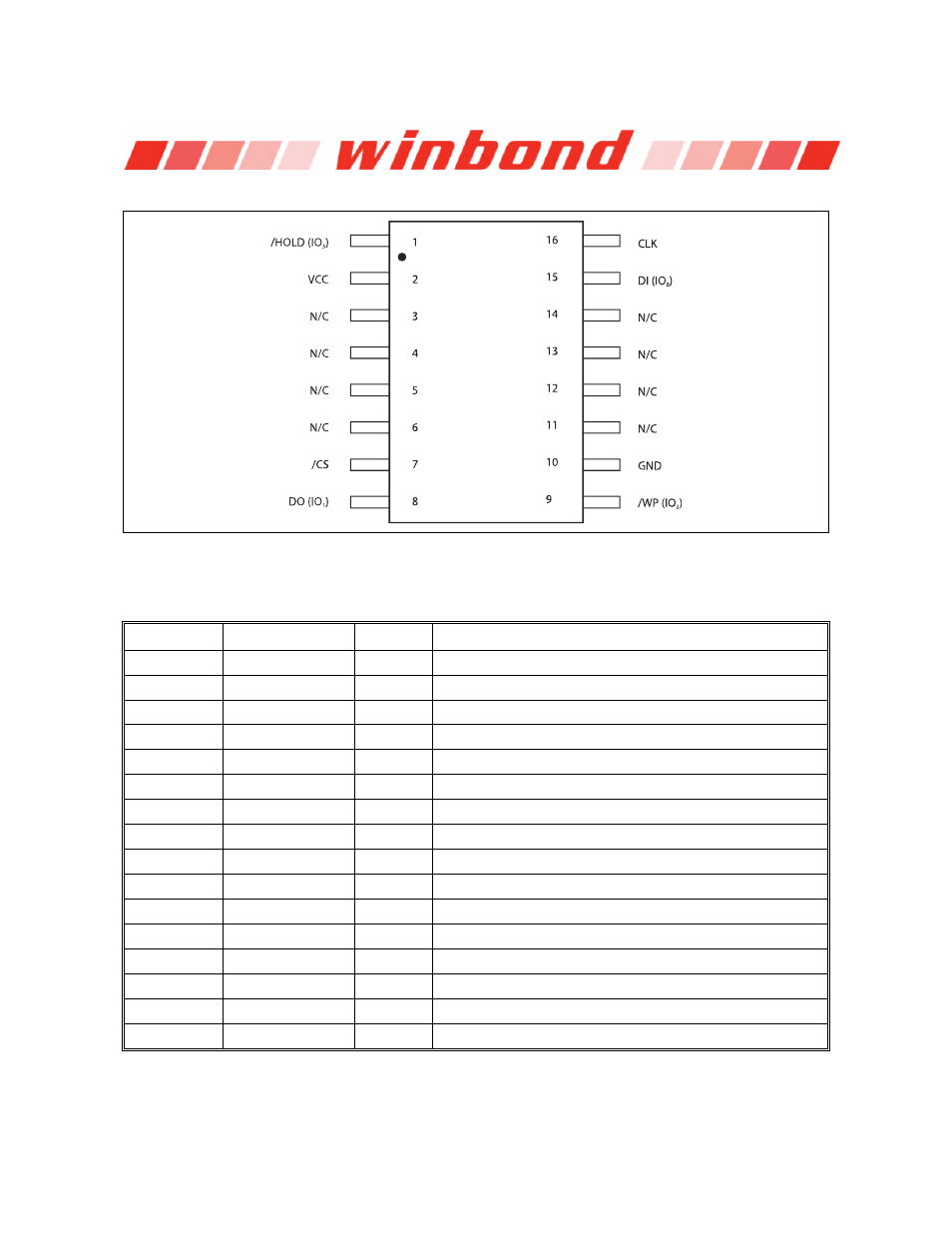

Figure 1c. W25Q16 and W25Q32 Pin Assignments, 16-pin SOIC 300-mil (Package Code SF)

7. PIN DESCRIPTION SOIC 300-MIL

PAD NO.

PAD NAME

I/O

FUNCTION

1 /HOLD

(IO3)

I/O

Hold Input (Data Input Output 3)*

2 VCC

Power

Supply

3 N/C

Connect

4 N/C

Connect

5 N/C

Connect

6 N/C

Connect

7 /CS

Chip Select Input

DO (IO1)

I/O

Data Output (Data Input Output 1)*

9 /WP

(IO2)

I/O

Write Protect Input (Data Input Output 2)*

10 GND

Ground

11 N/C

Connect

12 N/C

Connect

13 N/C

Connect

14 N/C

Connect

DI (IO0)

I/O

Data Input (Data Input Output 0)*

CLK

Serial Clock Input

*1 IO0 and IO1 are used for Dual and Quad instructions

*2 IO0 – IO3 are used for Quad instructions
