W25Q80, W25Q16, W25Q32
Publication Release Date: June 20, 2007
- 49 - Advanced - Revision A5
11.6 AC Measurement Conditions
SPEC
PARAMETER SYMBOL
MIN MAX
UNIT
Load Capacitance C L 30 pF
Input Rise and Fall Times T R , T F 5 ns
Input Pulse Voltages V IN 0.2 VCC to 0.8 VCC V
Input Timing Reference Voltages IN 0.3 VCC to 0.7 VCC V
Output Timing Reference Voltages O UT 0.5 VCC to 0.5 VCC V
Note:
1. Output Hi-Z is defined as the point where data out is no longer driven.

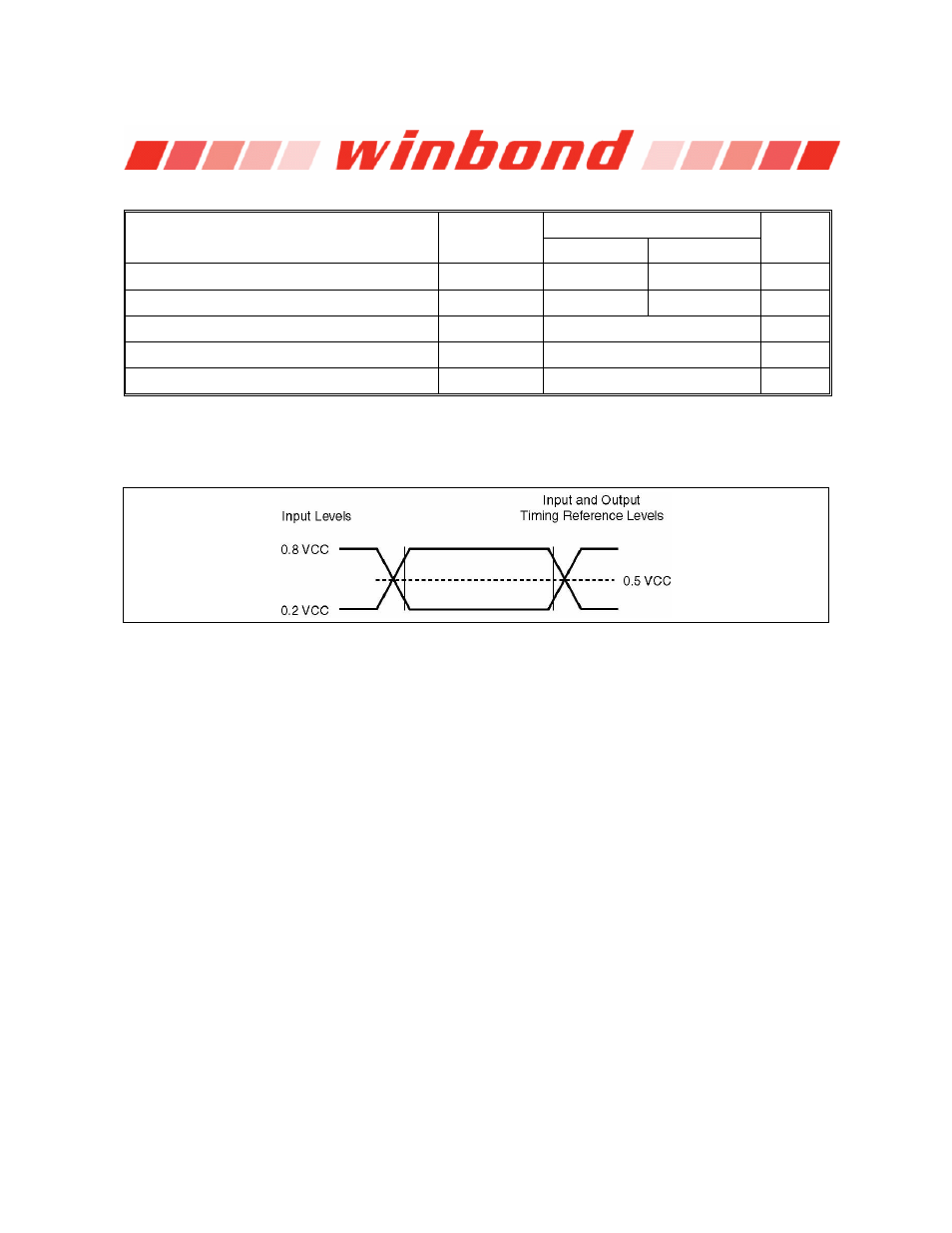

Figure 31. AC Measurement I/O Waveform
