Megabit 2.5-volt only or 2.7-volt only dataflash, Features, Description

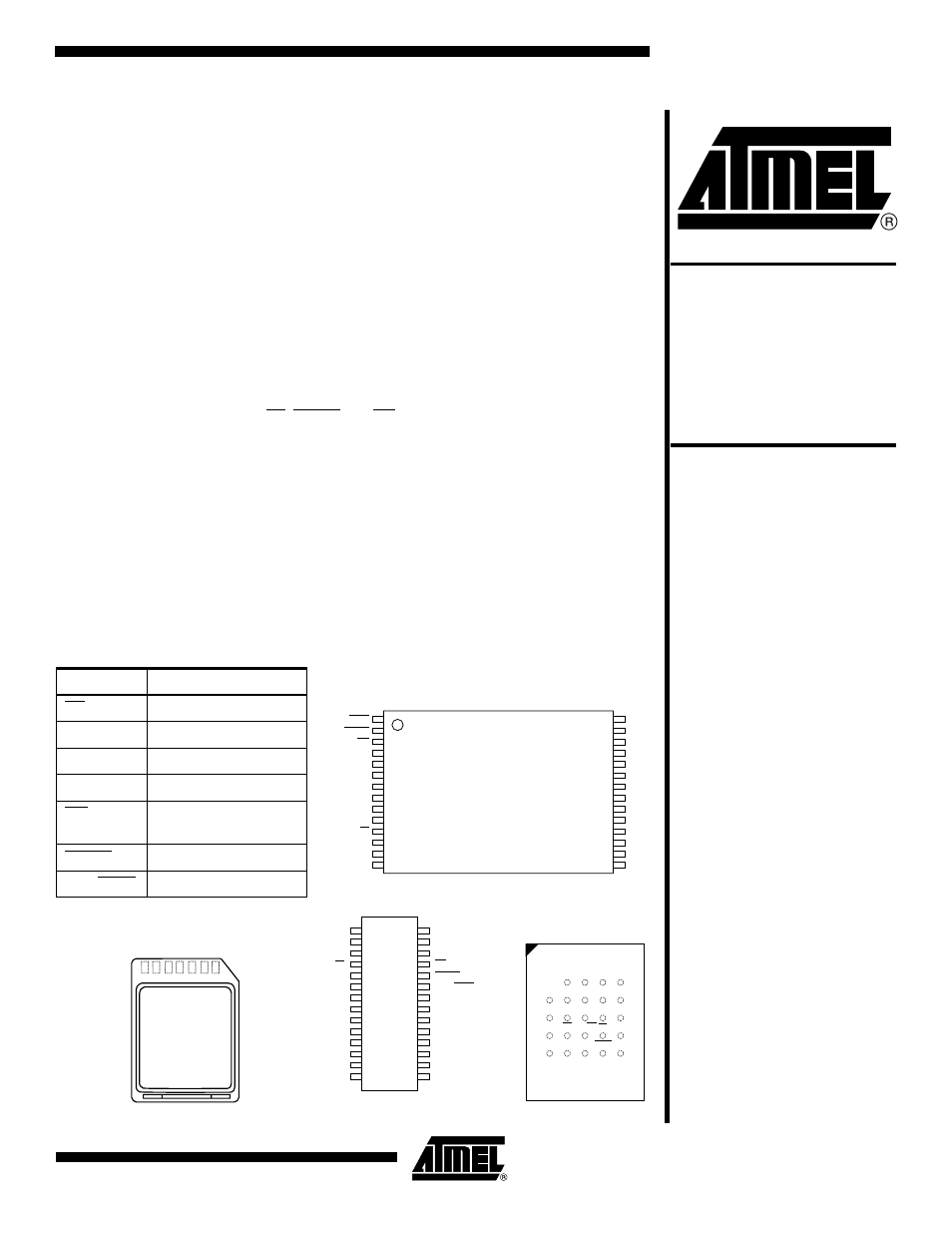

![background image](/manuals/281218/1/background.png)
1
Features
•
Single 2.5V - 3.6V or 2.7V - 3.6V Supply
•
Serial Peripheral Interface (SPI) Compatible
•
20 MHz Max Clock Frequency
•
Page Program Operation
– Single Cycle Reprogram (Erase and Program)
– 4096 Pages (528 Bytes/Page) Main Memory
•
Supports Page and Block Erase Operations
•
Two 528-byte SRAM Data Buffers – Allows Receiving of Data
while Reprogramming of Nonvolatile Memory
•
Continuous Read Capability through Entire Array
– Ideal for Code Shadowing Applications
•
Low Power Dissipation
– 4 mA Active Read Current Typical
– 2 µA CMOS Standby Current Typical
•
Hardware Data Protection Feature
•
100% Compatible to AT45DB161
•
5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins
•
Commercial and Industrial Temperature Ranges
Description
The AT45DB161B is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally
suited for a wide variety of digital voice-, image-, program code- and data-storage
applications. Its 17,301,504 bits of memory are organized as 4096 pages of 528 bytes
each. In addition to the main memory, the AT45DB161B also contains two SRAM
data buffers of 528 bytes each. The buffers allow receiving of data while a page in the
main memory is being reprogrammed, as well as reading or writing a continuous data
16-megabit
2.5-volt Only or
2.7-volt Only
DataFlash
®
AT45DB161B
TSOP Top View
Type 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
RDY/BUSY
RESET
WP
NC
NC
VCC
GND
NC
NC
NC
CS
SCK
SI
SO
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
CBGA Top View
through Package
A
B
C
D
E
1
2
3
4
5
NC
NC
NC
NC
NC
VCC
WP
RESET
NC
NC
GND
RDY/BSY
SI
NC
NC
SCK
CS
SO
NC
NC
NC
NC
NC
NC
SOIC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
GND
NC
NC
CS
SCK
SI
SO
NC
NC
NC
NC
NC
NC
NC
VCC
NC
NC
WP
RESET
RDY/BUSY
NC
NC
NC
NC
NC
NC
NC
NC
Pin Configurations
Pin Name
Function
CS
Chip Select
SCK
Serial Clock
SI
Serial Input
SO
Serial Output
WP
Hardware Page Write
Protect Pin
RESET
Chip Reset
RDY/BUSY
Ready/Busy
DataFlash Card
(1)
Top View through Package
Note:
1.
See AT45DCB002 Datasheet.
7 6 5 4 3 2 1
Rev. 2224E–DFLSH–10/02
