W25Q80, W25Q16, W25Q32

- 6 -

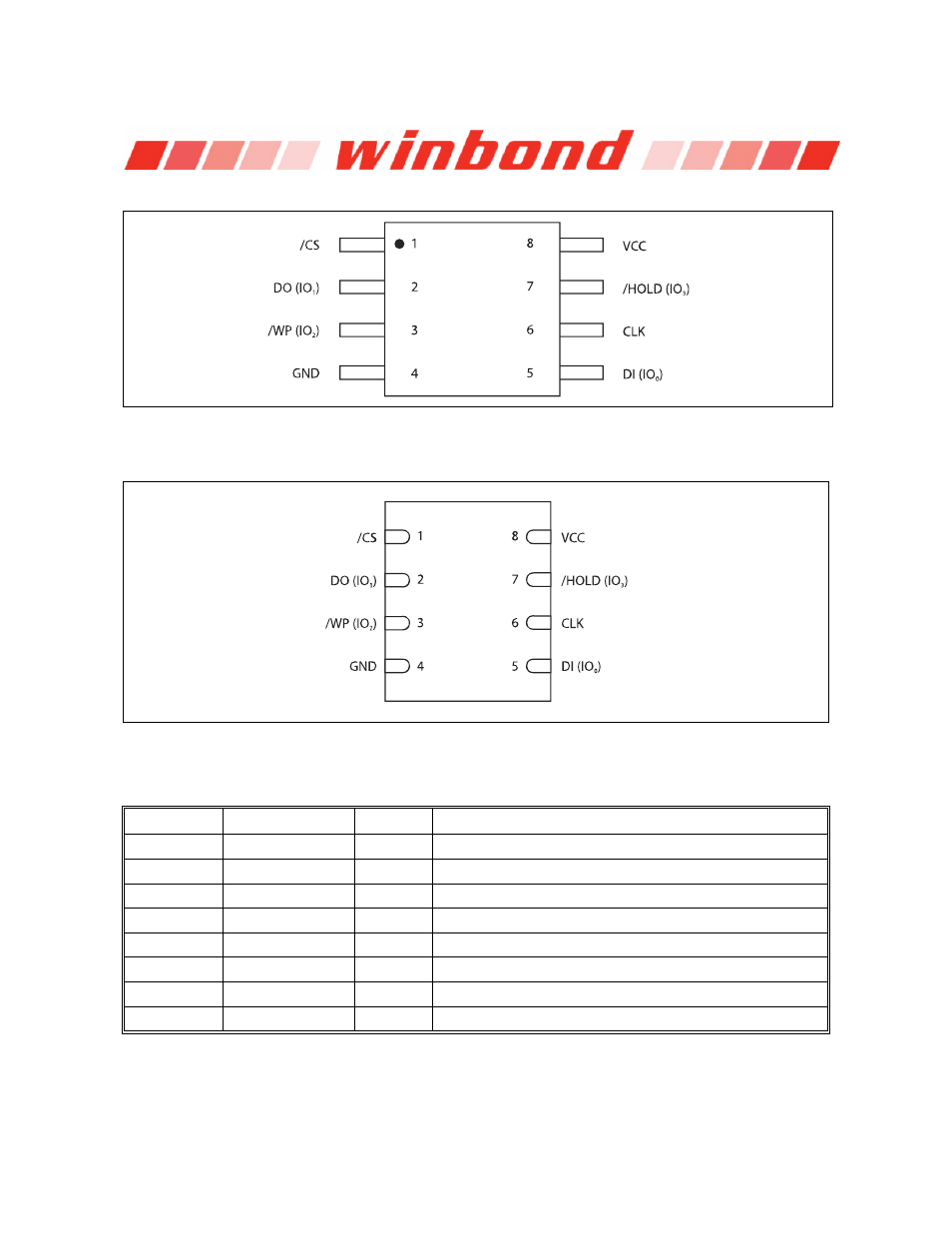

3. PIN CONFIGURATION SOIC 208-MIL

Figure 1a. W25Q80, W25Q16, W25Q32 Pin Assignments, 8-pin SOIC 208-mil (Package Code SS)

4. PAD CONFIGURATION WSON 6X5-MM

Figure 1b. W25Q80, W25Q16 Pad Assignments, 8-pad WSON (Package Code ZP)

5. PIN DESCRIPTION SOIC 208-MIL, AND WSON 6X5-MM

PIN NO.

PIN NAME

I/O

FUNCTION

1 /CS

I

Chip Select Input

2

DO (IO1)

I/O

Data Output (Data Input Output 1)*

1

3 /WP

(IO2)

I/O

Write Protect Input ( Data Input Output 2)*

2

4 GND

Ground

5

DI (IO0)

I/O

Data Input (Data Input Output 0)*

1

6

CLK

I

Serial Clock Input

7 /HOLD

(IO3)

I/O

Hold Input (Data Input Output 3)*

2

8 VCC

Power

Supply

*1 IO0 and IO1 are used for Dual and Quad instructions

*2 IO0 – IO3 are used for Quad instructions
