VEGA VEGADIF 55 4 … 20 mA_HART - Manual (Page 54)

*
*
*
*
*
*
* *
Editor TABLE
Measuring
Table
Display via
HART handheld terminal
only Display via on-site
display only
EXTENDED SETUP
Pressure
TEMP. ENG UNIT TEMP. ENG UNIT TEMP. ENG UNIT
Level
ADJUST DENSITIY
PROCESS DENSITY
SET LRV
SET URV
Flow
LOW FLOW CUT-OFF
SET L. FL. CUT-OFF
SET LRV
SET URV
EDITOR TABLE
TANK CONTENT MIN
TANK CONTENT MAX
TABLE SELECTION
LIN. EDIT MODE MEASURING TABLE
TANK DESCRIPTION
TOTALIZER SETUP
RESET TOTALIZER 1
TOTALIZER 2 UNIT
TOTALIZER 1 UNIT
FACT. U. U. TOTAL. 1
NEG. FLOW TOT. 1
TOT. 2 USER UNIT
FACT. U. U. TOTAL. 2
NEG. FLOW TOT. 2
TOT. 1 USER UNIT
LINEARISATION
Level measuring
mode only Level measuring
mode only Flow measuring
mode only
g
X-VAL.
Y-VAL.
LINE-NUMB
ACTIVE LIN. TAB. X
ACTIVE LIN. TAB Y
TANK DESCRIPTION
TAB. ACTIVATE
LINEARISATION
TANK CONTENT MIN
TANK CONTENT MAX
TABLE SELECTION
EDITOR TABLE

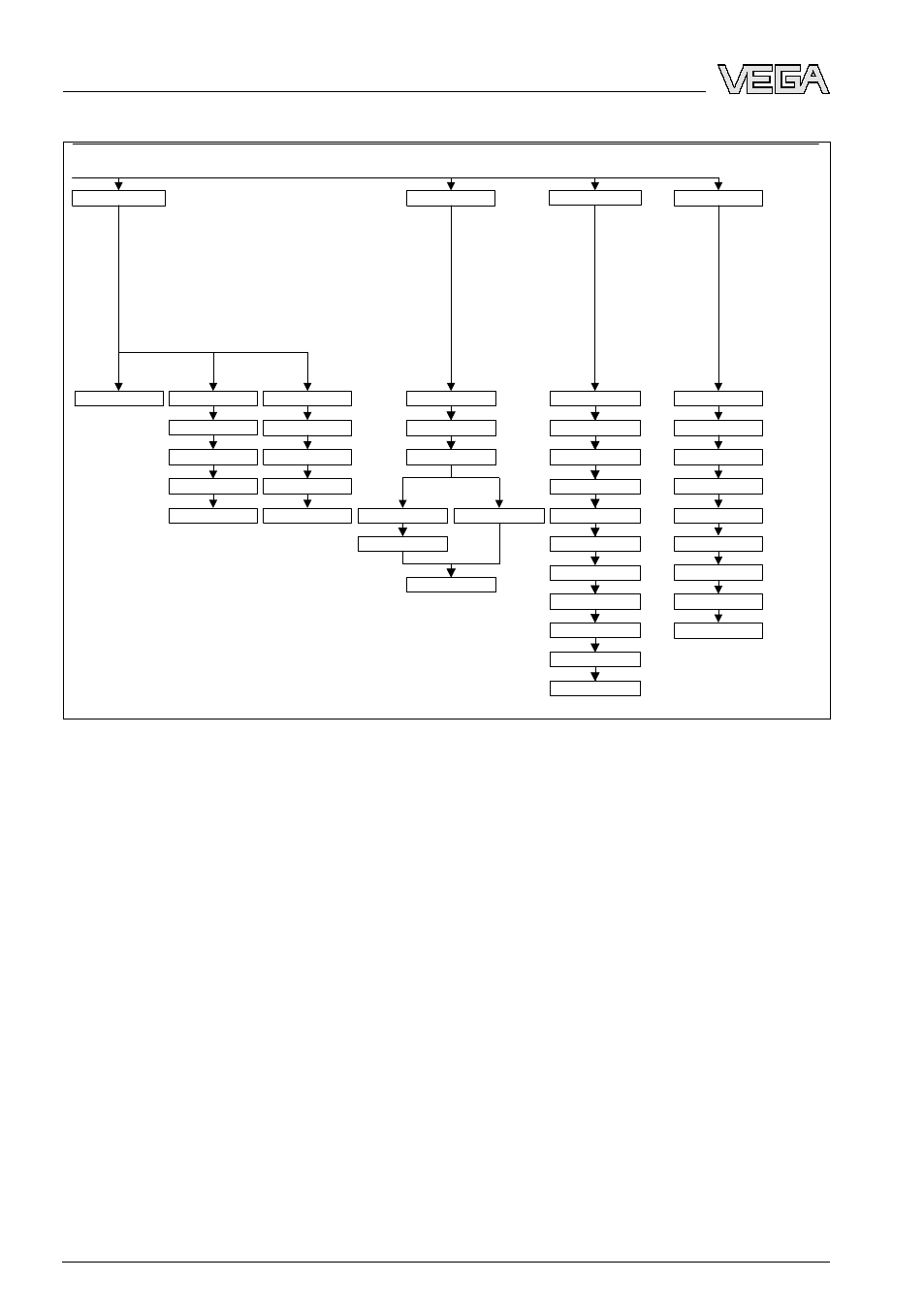

Fig. 59: Menu schematic part 3*: Extended adjustment pressure, level and flow, linearization, adjustment sum
counter
* T here are parameters which are displayed only if other parameters
are correspondingly set. For example, the parameter TOTALIZER 1 is
only displayed, if the option "CUSTOMER UNIT" was selected for the
parameter TOTALIZER. These parameters are marked with a "*".
