8 VEGACOM 558 Ethernet
Mounting
2 Mounting
Coding
A mechanical coding system avoids later
interchanging of various module cards in the
carrier or in the housing type 505.
The coding system consists of:
- two coded pins in the multipoint connector
- two holes in the multiple plug of
VEGACOM.
The coded pins are attached to the module
(multipoint connector). The multipoint connec-
tor is equipped with the coded pins by the
user according to the following illustrations.

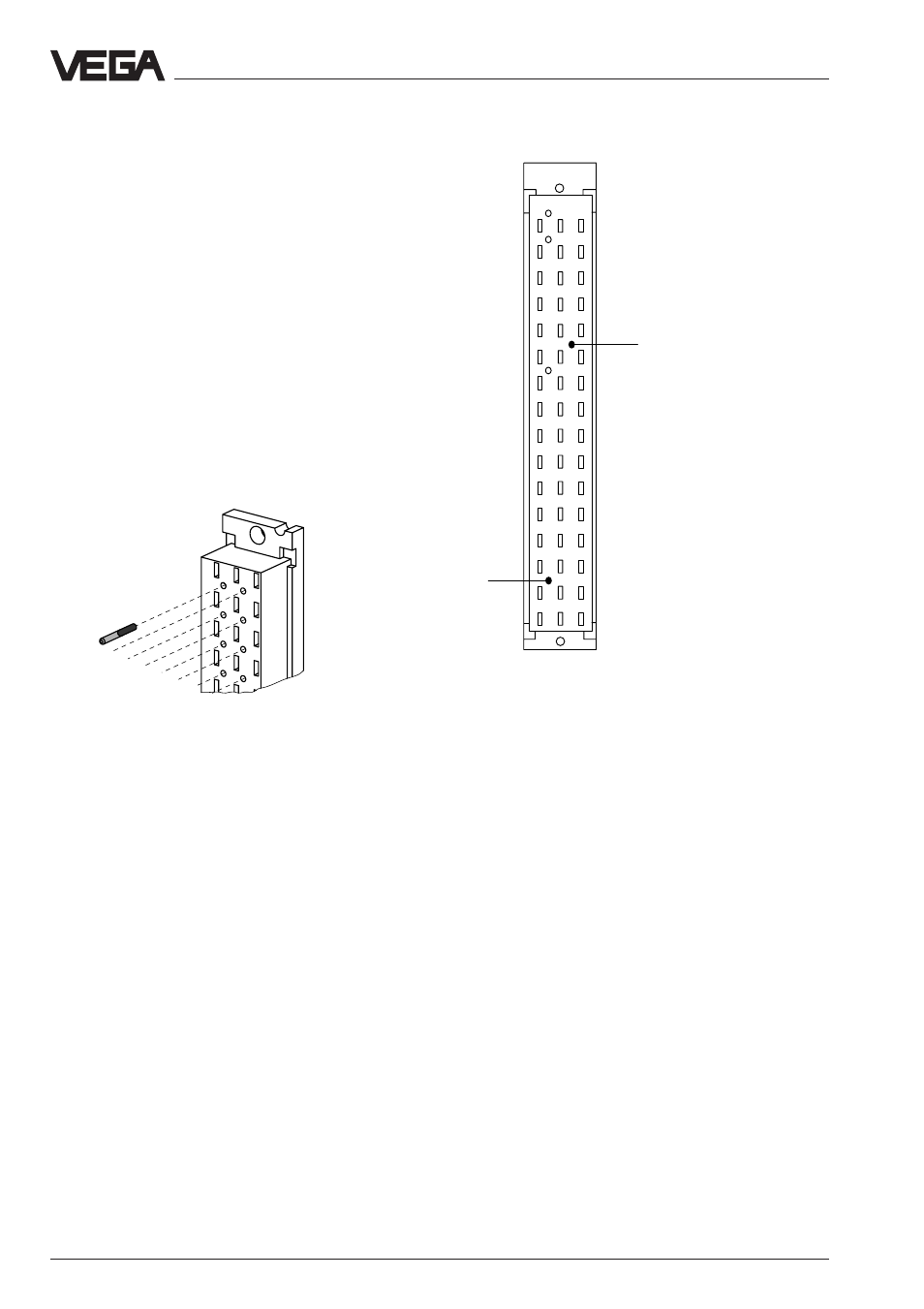

Coded pin
Positioning of the coded pins on the multipoint con-
nector
o 9 o
z b d
o 1 o
a c
a29
o 3 o
o 5 o
o 7 o
o11o
o13o
o15o
o17o
o19o
o21o
o23o
o25o
o27o
o29o
o31o
c11
