VEGACOM 558 Ethernet 15
Configuration of VEGACOM 558

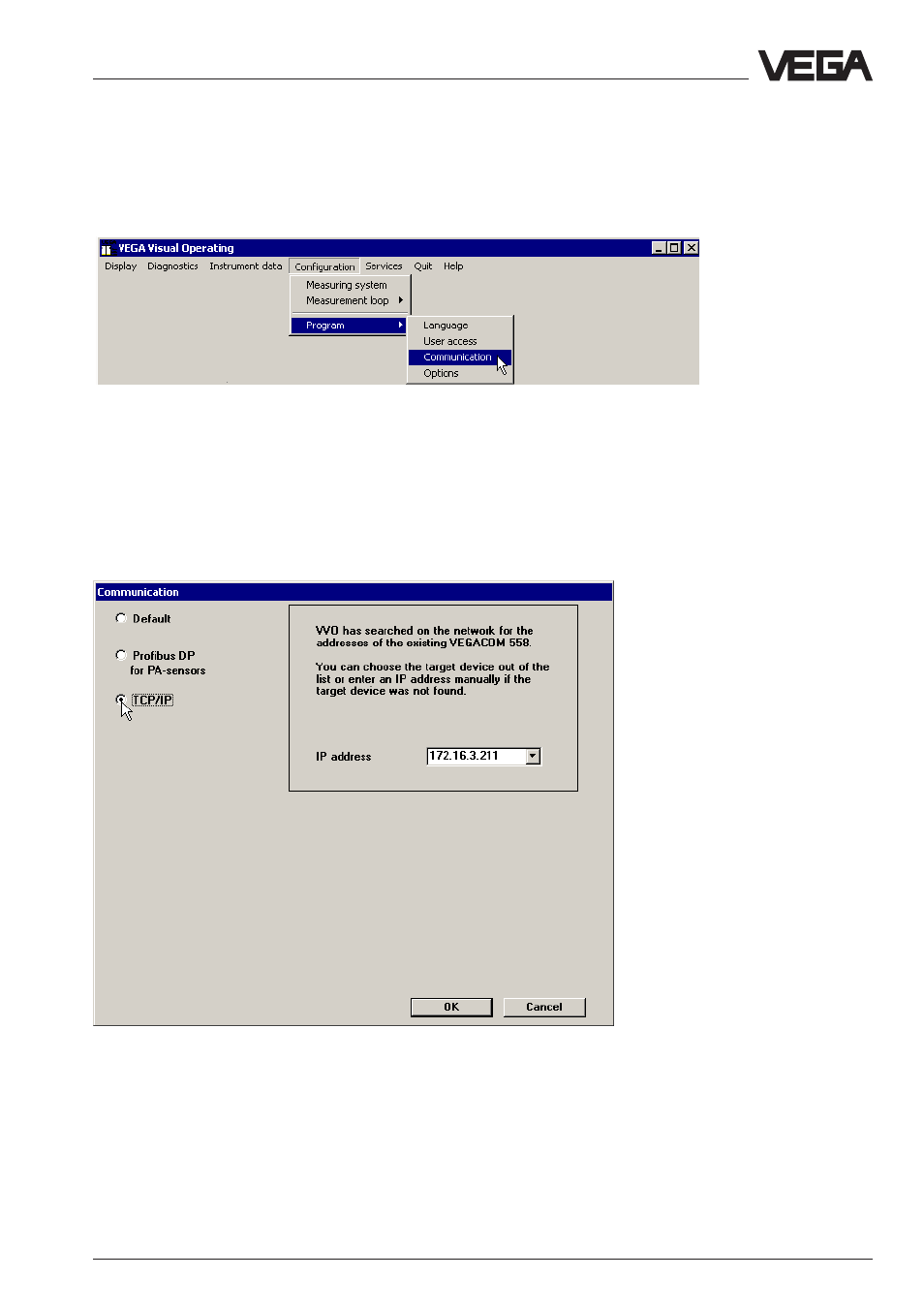

5.1 Adjust communication mode with VVO
During installation, VVO is set to "serial communication" (standard). For
access via Ethernet to VEGACOM, VVO must be switched over. Click in
the VVO main window to
Configuration > Program > Communication .
Choose in the window "Communication" TCP/IP . VVO searches the net-
work for existing VEGACOMs and enters the result (IP addresses) in
the list box. Then the requested VEGACOM can be selected out of the
list. If it is not found by VVO (because it is probably switched off or not
already connected), the IP address must be entered manually. After
confirmation with
OK, VVO searches the network and makes a connec-
tion to the instrument.
If a connection to a VEGACOM 558 (whose IP address has already
been entered) should be made at a later time, you only have to select it
from the list.
