Communication with VEGACOM
4 Communication with VEGACOM
4.1 Ways to connect

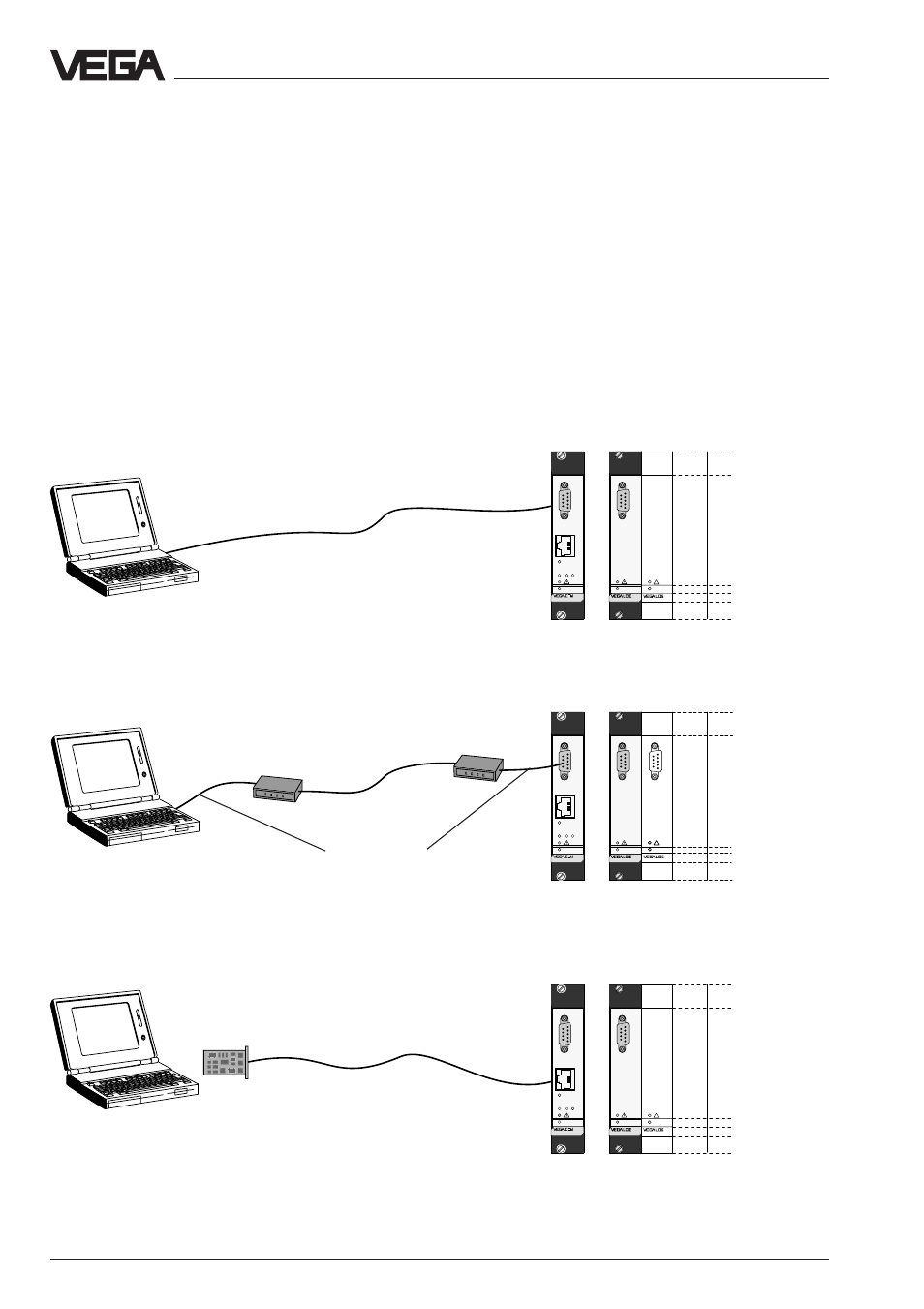

There are a number of ways to enable com-
munication with VEGACOM 558:
- a direct standard connection with the PC
(RS232)
- a standard connection via modems and
telephone network with the PC (RS232)
- a connection via a network (Ethernet)
- a connection via internet
Cross-over cable
RS 232 connection cable
Ethernet card
RS 232 (VVO, VV)
Ethernet (HTTP, FTP,
Telnet, VVO, VV)
on
PC
3 2 1
Ethernet
558
on
571 CPU 571 CPU
VEGACOM
RS 232 (VVO, VV)
Telephone
network
Modem
Local
modem
RS 232 cable
