Page 25
VEGACOM 557 Modbus
25
on
VEGAMET
513
!
ESC
OK
-
+
100
%
CONNECT
on
VEGAMET
513
!
ESC
OK
-
+
100
%
CONNECT
on
VEGAMET
513
!
ESC
OK
-
+
100
%
CONNECT
on
VEGAMET
513
!
ESC
OK
-
+
100
%
CONNECT
If switch 1 is set to position "ON“, the meas-
ured values will be grouped acc. to DCS
indices or channels.

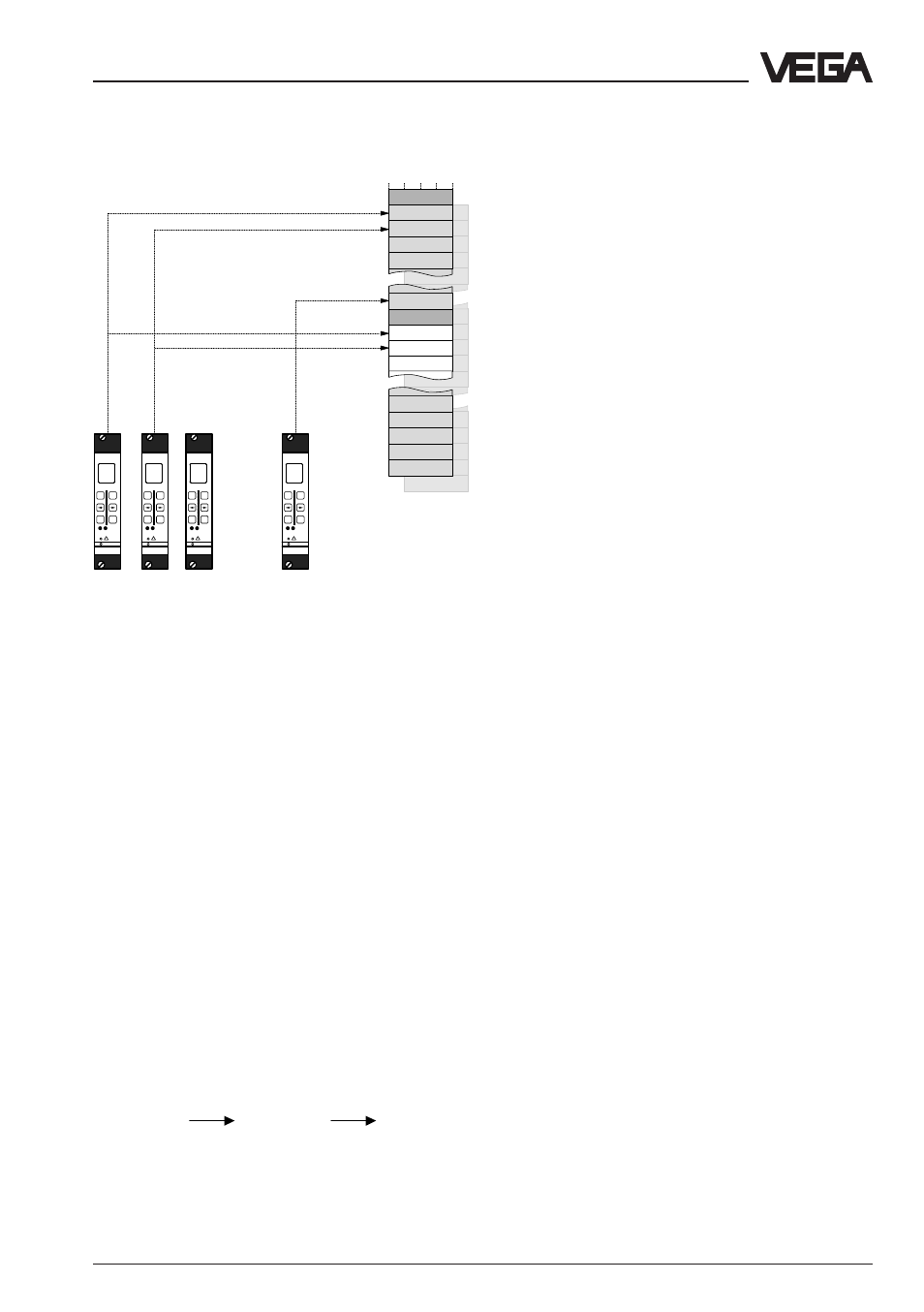

The following illustrations show in detail the
possible memory mappings for the storage
of measured values when connecting VEGA-
COM 557 to DISBUS.
Note:
When addressing register words, all ad-
dresses between 0 and 65 535 can be used
for VEGACOM 557. For access to the inter-
mediate storage, VEGACOM 557 generally
uses only the last 3 digits of the address.
This means:
Register
Register
Register
address in
address on
address in
Modicon
Modbus
VEGACOM
557
30 001
30 000
000
30 017
30 016
016
34 001
34 000
000
34 017
34 016
016
Grouping of measured values acc. to DCS indices or
channels
all DCS outputs with index =1
all DCS outputs with index =2
Data image in VEGACOM 557
