1.7 Indicating and adjustment ele-
ments
As diagnostic aid, VEGACOM 557 is
equipped with three LEDs. These are located
on the instrument front panel. In addition, the
basic board, as well as the additional board
of VEGACOM 557 are equipped with a
number of switches (DIP switch or hook
switch) for configuration of the available inter-
faces.

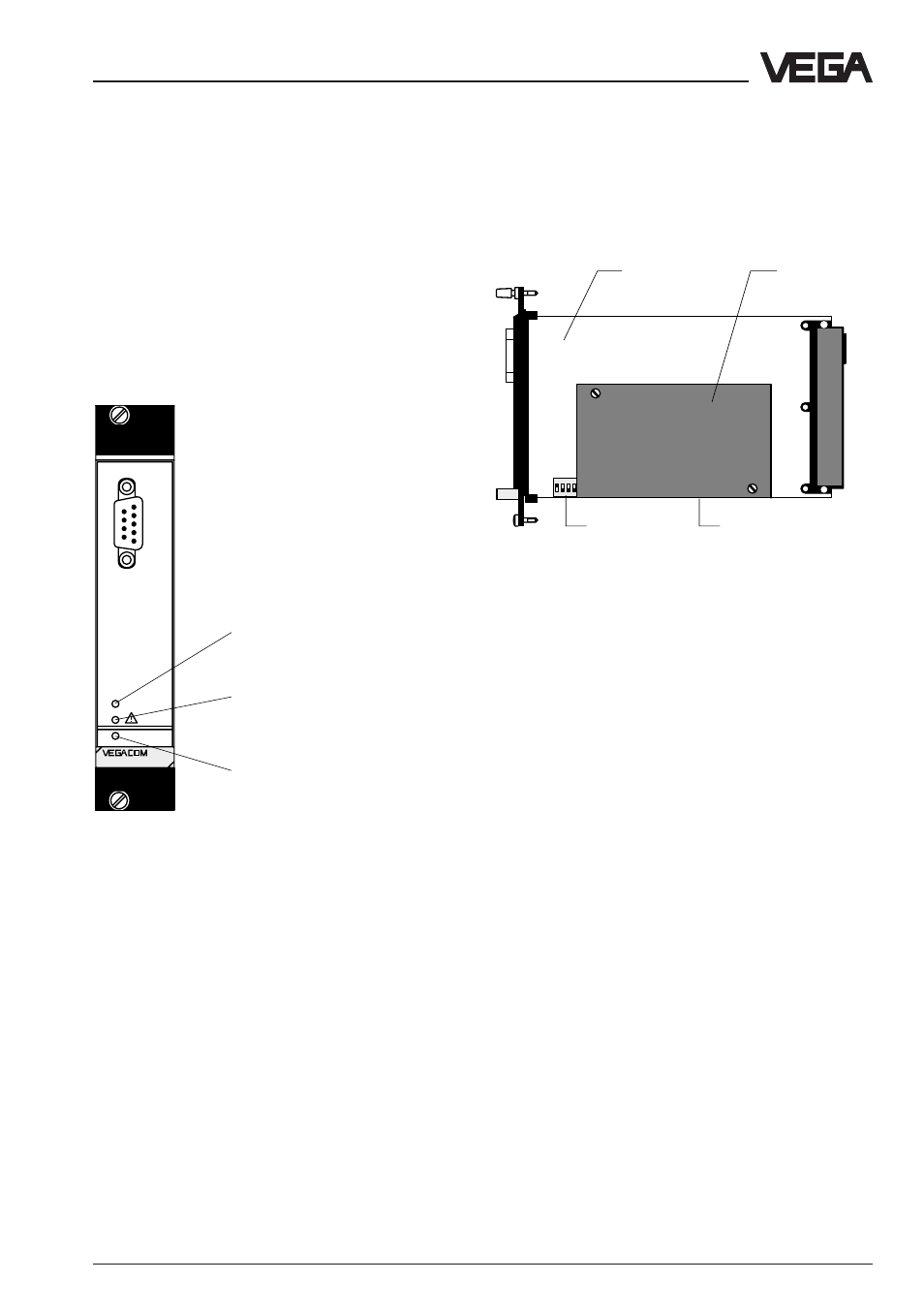

Indicating elements/Diagnostics LEDs
Modbus activity
Front of VEGACOM 557
2 3 4
ON
1
DIL switch
on additional
board DIL switch
on basic board
Side view of VEGACOM 557
Product description
Meaning of the LEDs:
VEGA ASCII active:
- green LED lights in case of valid data ex-
change
Fault signal:
- red LED flashing: DISBUS/LOGBUS-error
- irregularly flashing: no PC/DCS outputs
assigned
- permanent light: hardware error or special
function "Freeze Mode“
Voltage supply:
- green LED lights, operating voltage on.
Adjustment elements
The adjustment elements are located on the
basic board. A 6-pole DIL switch block on
the basic board is used for adjustment of the
front PC interface.
Special function “Freeze Mode“
For diagnostic purposes on VEGA process-
ing systems VEGAMET and VEGALOG, the
process image can be “frozen“ in VEGACOM
557 with the adjustment software VVO. This
enables the possibility of carrying out mainte-
nance work on the VEGA system without
disturbing the higher-priority processing
system.
For activating the Freeze Modes, a PC must
be connected directly to the PC interface of
VEGACOM 557 and the Freeze Mode must
be switched on under VVO in the menu "Con-
figuration - Measuring system“.
Attention:
Before activating this function, it must be
ensured that during this mode, no disastrous
consequences are to be expected for pro-
duction processes (during this mode, no
level values, etc., are updated).
