4-2.1.3-ME
Gas sampling and gas conditioning technology
19

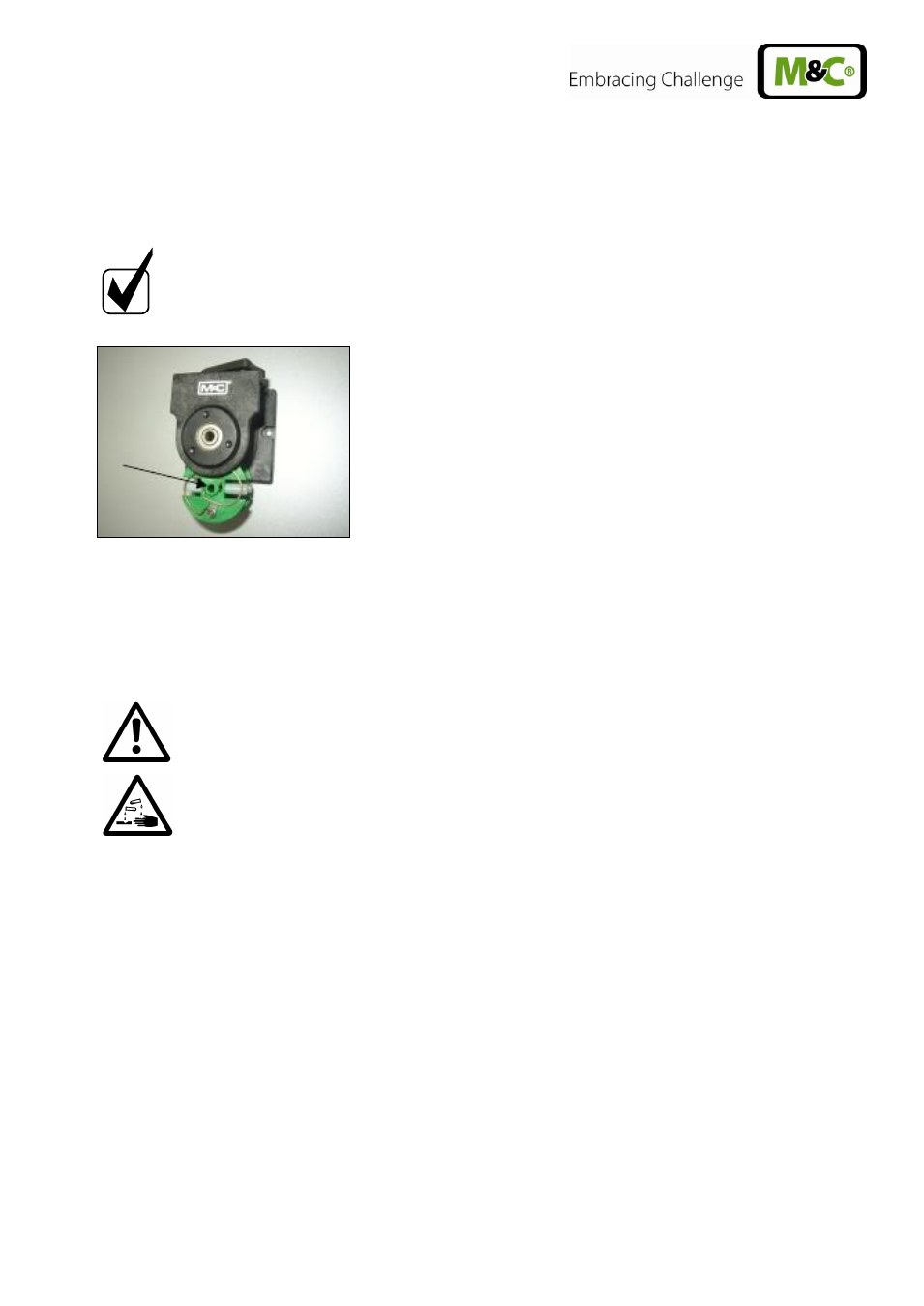

Make sure that contact pulleys roll easily on the axis. After remounting the axis with contact
pulley into the driver the spring has to be mounted as shown in Figure 8. Please pay attention
to the alignment of the dent.
Remounting happens in reverse order.
N O T E !
While mounting pay at
tention to the fit of ‘rotational axisdriver’ and
check that the plunged boss at the shaft bore points to the front of the
pump head.
Use genuine spare parts only !
15.3.3 CLEANING OF THE PUMP HEAD
We recommend to clean the single parts with a dry cloth. Principally, you should not use any
solvents for cleaning because they could affect the synthetic material. In case there is oil-free
compressed air available, the parts can be blown through.
W A R N I N G !
Aggressive medium residues possible.
During dismountage, rapair or cleaning of the pump, wear
protective glasses and proper protective clothing!
16
OPERATING OF THE INTEGRATED ELECTRONIC TEMPERATURE REGULATOR
During normal operation, the display of the temperature regulator shows the actual cooling
temperature.
Figure 8 shows the front view of the temperature regulator.
