18 Gas sampling and gas conditioning technology 4-2.1.3-ME

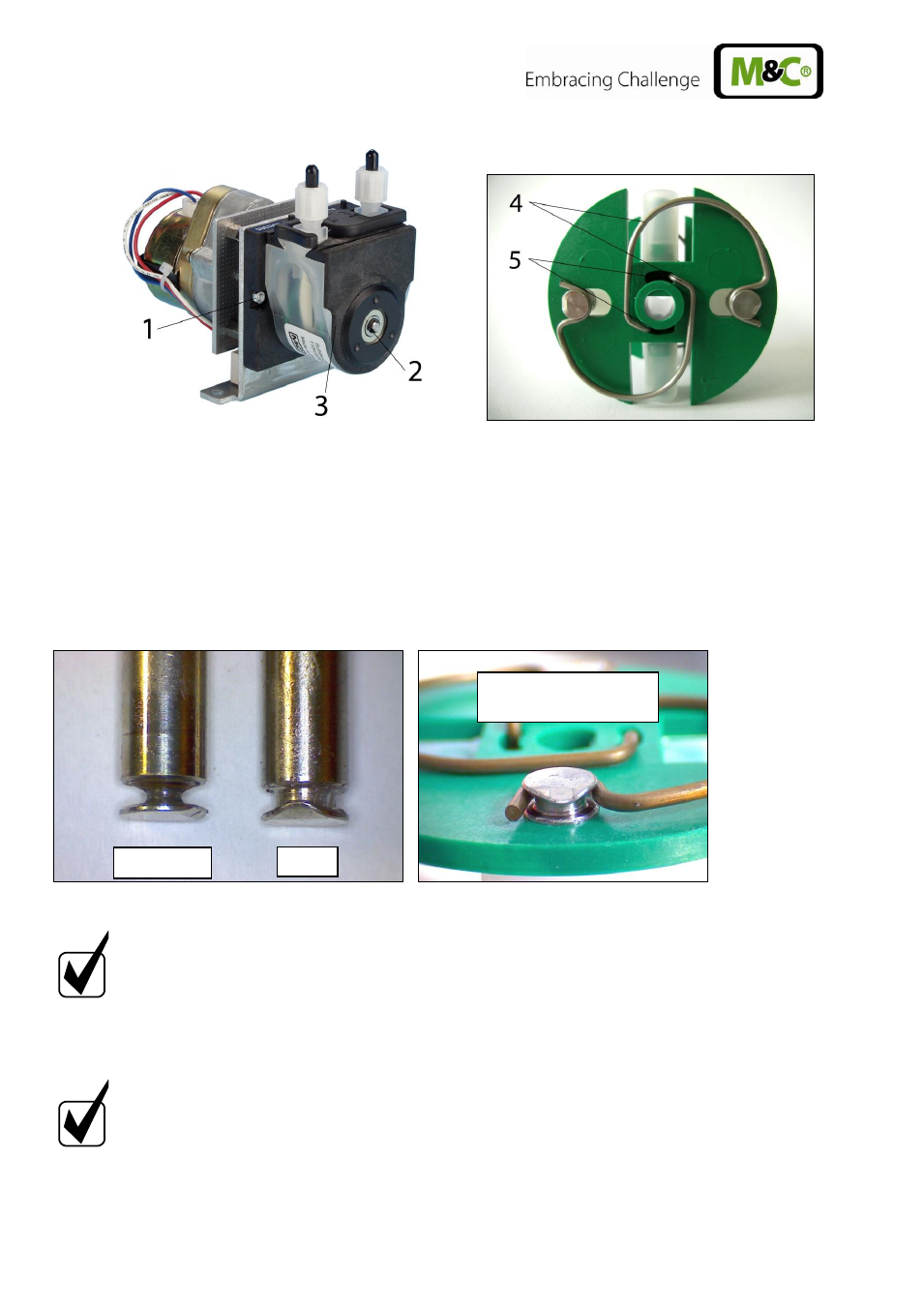

Figure 7 Disassembly of pump head and driver

Draw the pump head  out of the motor shaft

Take driver out of the pump head

The removal of the springs (4 pcs.) away from the driver is easily possible without the aid of
any tools. For this take spring out of the groove  near to the shaft bore.

Dismount roller axes and change contact pulleys. Take care that axes are not worn out by the
springs and have damaged the dent at the axes front end. In case of abrasion the axes have to
be changed (see Fehler! Verweisquelle konnte nicht gefunden werden.).
Figure 8 Check of axes and rolls
N O T E !
The springs may occur in different coulerings. This does not constitute a
quality defect. But make sure that the right spring strength is used. This
can be identified by the spring wire diameter.
The „standard version for
Novoprene pump hoses “ (part no. 90P1010) has a diameter of 1,1mm and
the strengthened version for FPM-, Acidflex- or Masterflex-hoses “ (part
no. 90P1015) has a diameter of 1,2mm.
N O T E !
At first delivery two different types of springs are mounted in the driver
(right and left springs). When spare springs are ordered, for simplified
storage only one type will be delivered (right spring) that can be replaced
without any problems and guarantees full functionality when all four
springs are replaced.
The dent prevents
rotation of the axis
new worn out
