8

Gas sampling and gas conditioning technology

3-1.10-ME

7

FUNCTION OF THE M&C JET-STREAM HEAT EXCHANGER

The ECP20-1 is equipped with one Jet-Stream heat exchanger for a flow rate of 250l/h while the
ECP20-2 has two heat exchangers in series for maximum flow of 500l/h.

The Jet-Stream heat exchangers made of Duran glass, optional PVDF or stainless steel are located in
a heat-insulated cooling block. All the heat exchangers are easily accessible and are arranged in such

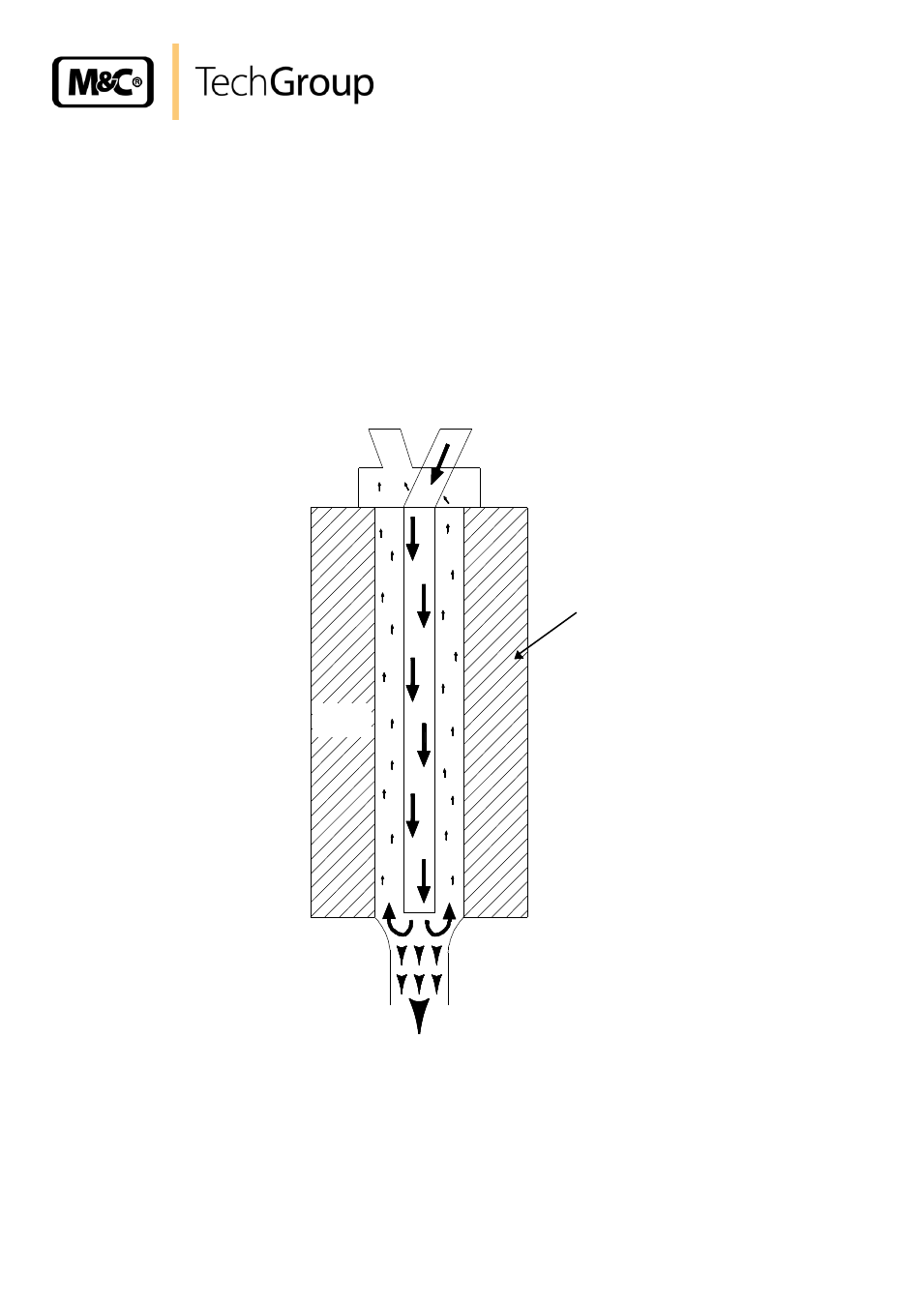

a way that they can be removed very simply. Figure 2 shows a schematic diagram of the functioning of
the heat exchanger.

+5°C

Sample gas

out

Sample gas

in

Condensate

out

Cooling-
block

Figure 2

Functioning diagram of the heat exchanger
