13
Gas sampling and gas conditioning technology 2-1.9.6EXMD

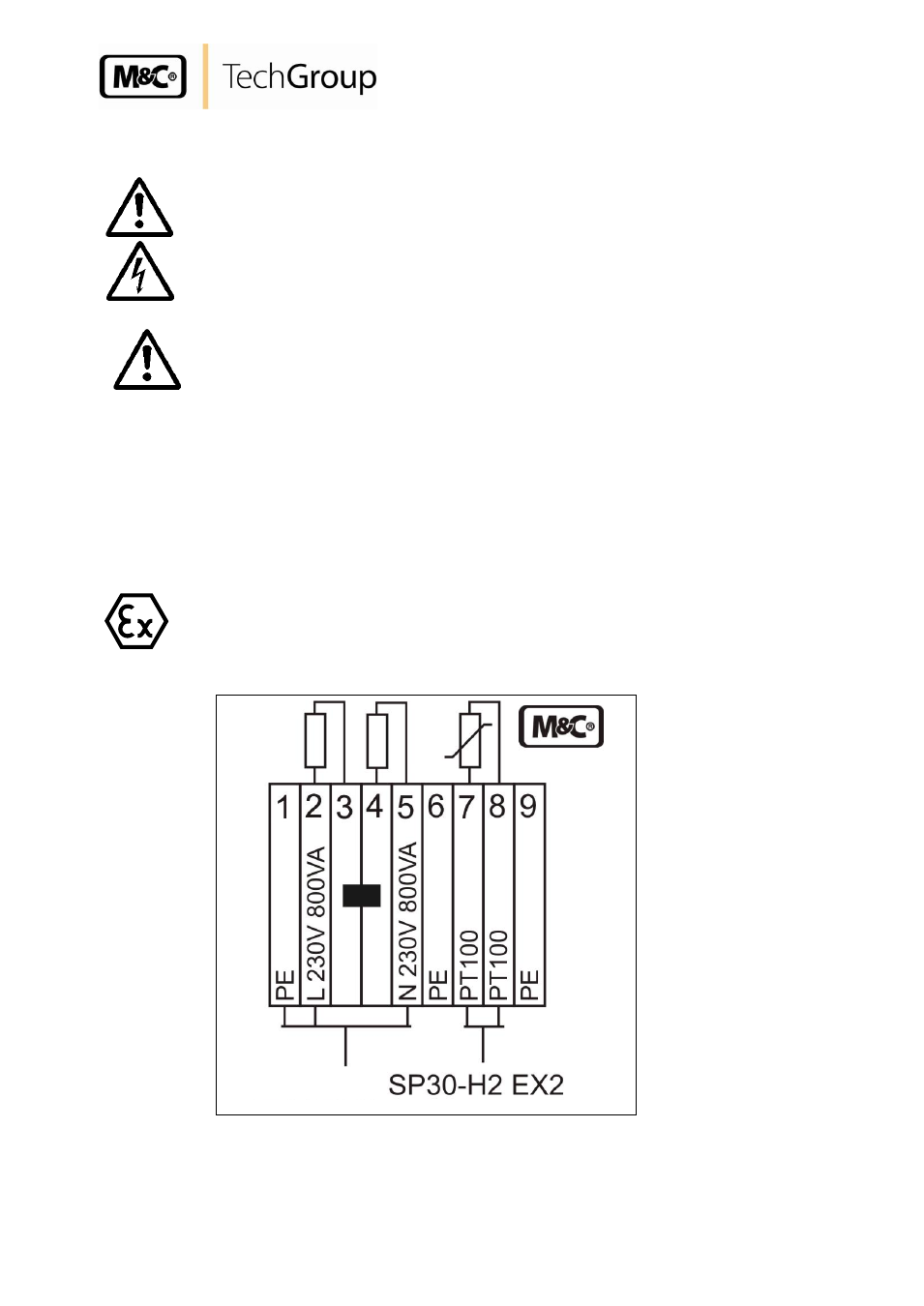

13.1 ELECTRICAL CONNECTION OF THE HEATED SAMPLE TUBE
W A R N I N G !
The used cables for the connection of the heating must have an
outer diameter of 6-12mm corresponding to the clamping range of
the cable glands!
W A R N I N G !
The max. admissible ambient temperature for the connection box
of the sample tubes SP30-H../EX2 and SP30-H1.1-V/EX2 is +70°C.
Temperature resistant cable have to be used corresponding to the
max. temperature at the installation site.

Remove lid of the connection box. In the lid there is also the electrical wiring plan.

Insert the power cable (min. 3 x 1,5 mm
2
) coming from the external temperature controller
through the cable gland and connect it at the corresponding terminals 2, 5 and 6.

Insert the temperature sensor cable through the other cable gland and connect it to the
terminals 7 and 8.

Remount lid.
N O T E !
Function and correctness of the temperature control (temperature
class) is in the sole responsibility of the installer and operator.
Connection
