Electrical connections, Figure 3, Mounting of the heated sample tube sp30-h../ex2 – M&C TechGroup SP 30-H.._EX2 Operator's manual User Manual
Page 12

12
Gas sampling and gas conditioning technology
2-1.9.6EXME
Figure 3

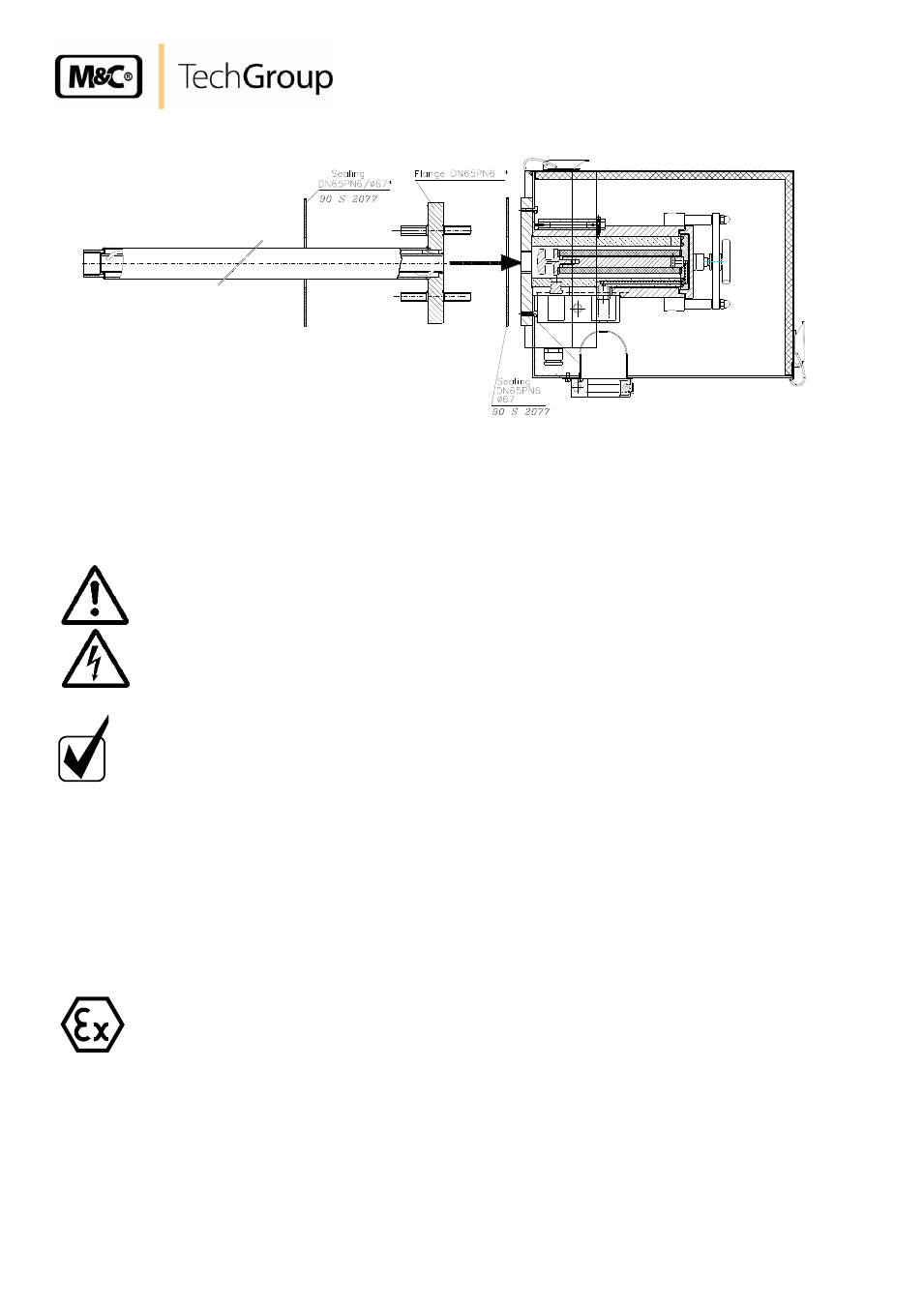

Mounting of the heated sample tube SP30-H../EX2
13
ELECTRICAL CONNECTIONS
W A R N I N G !
When connecting the equipment, please ensure that the supply
voltage is identical with the information provided on the model
type plate.
N O T E !
Attention must be paid to the requirements of IEC 364 (DIN VDE
0100) when setting high-power electrical units with nominal
voltages of up to 1000 V, together with the associated standards
and stipulations.
In any case we recommend the use of temperature resistant cable !
A main switch and matching fuse must be provided externally!
The main circuit must be equipped with a fuse corresponding to
the nominal current (over current protection); for electrical details
see technical data.
It is recommended to use the low temperature alarm. In case of an
alarm the flow can be stopped and the components downstream
the probe are safe for demage.
N O T E !
Function and correctness of the temperature control (temperature
class) is in the sole responsibility of the installer and operator.
