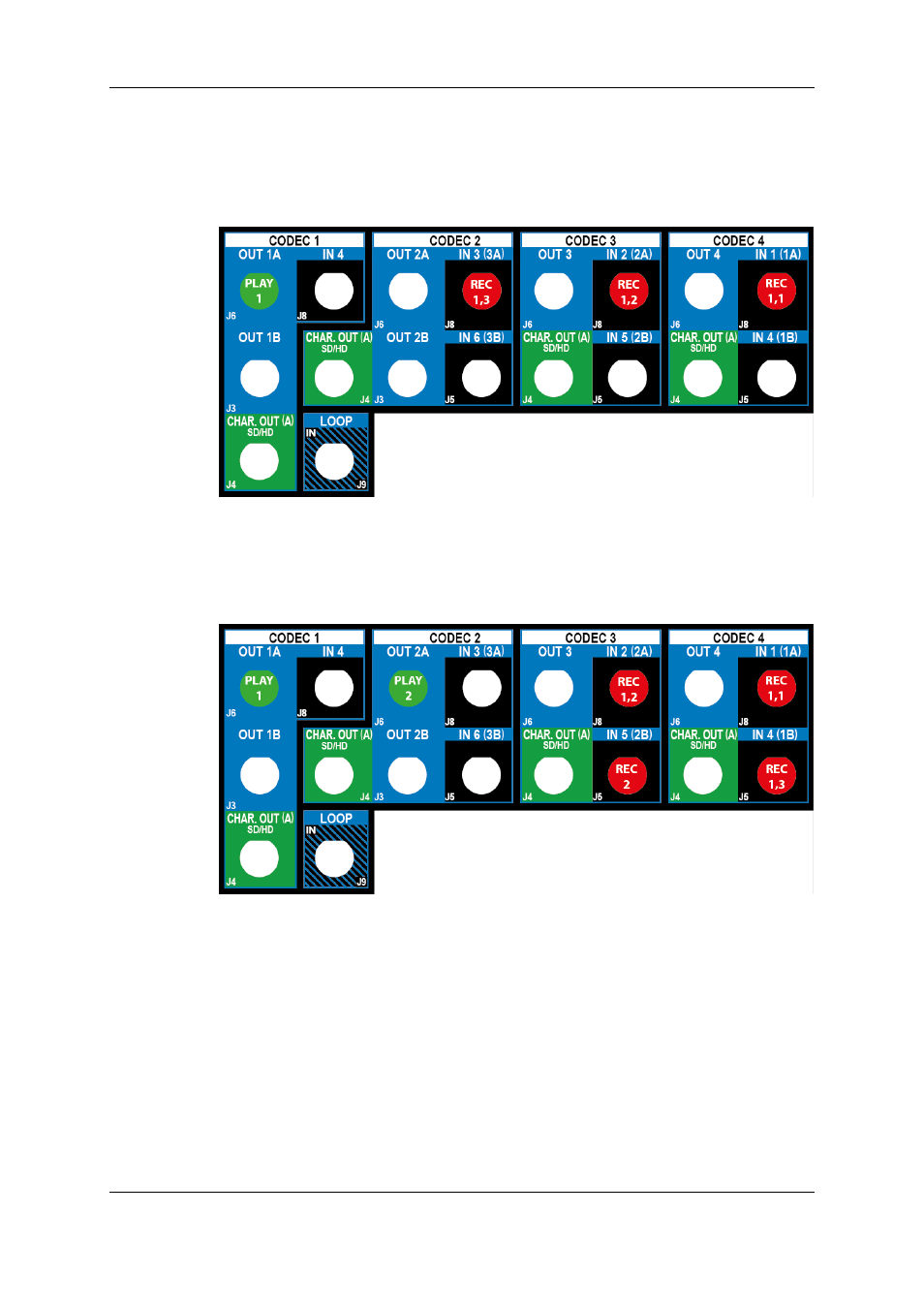

Example: 1SLSM 3PH + 1PLAY

The BNC connectors to be used as record and play channels in an SLSM configuration
with 1SLSM 3PH + 1PLAY need to be cabled as shown below:

Example: 1SLSM 3PH + 1REC + 2PLAY (2R/CM)

The BNC connectors to be used as record and play channels in an SLSM configuration
with 1SLSM 3PH + 1REC + 2PLAY in 2R/CM mode need to be cabled as shown below:

63

3. Multicam Configuration

EVS Broadcast Equipment S.A. - November 2012

Issue 11.01.A
