Example: 4REC + 2PLAY 2R/CM

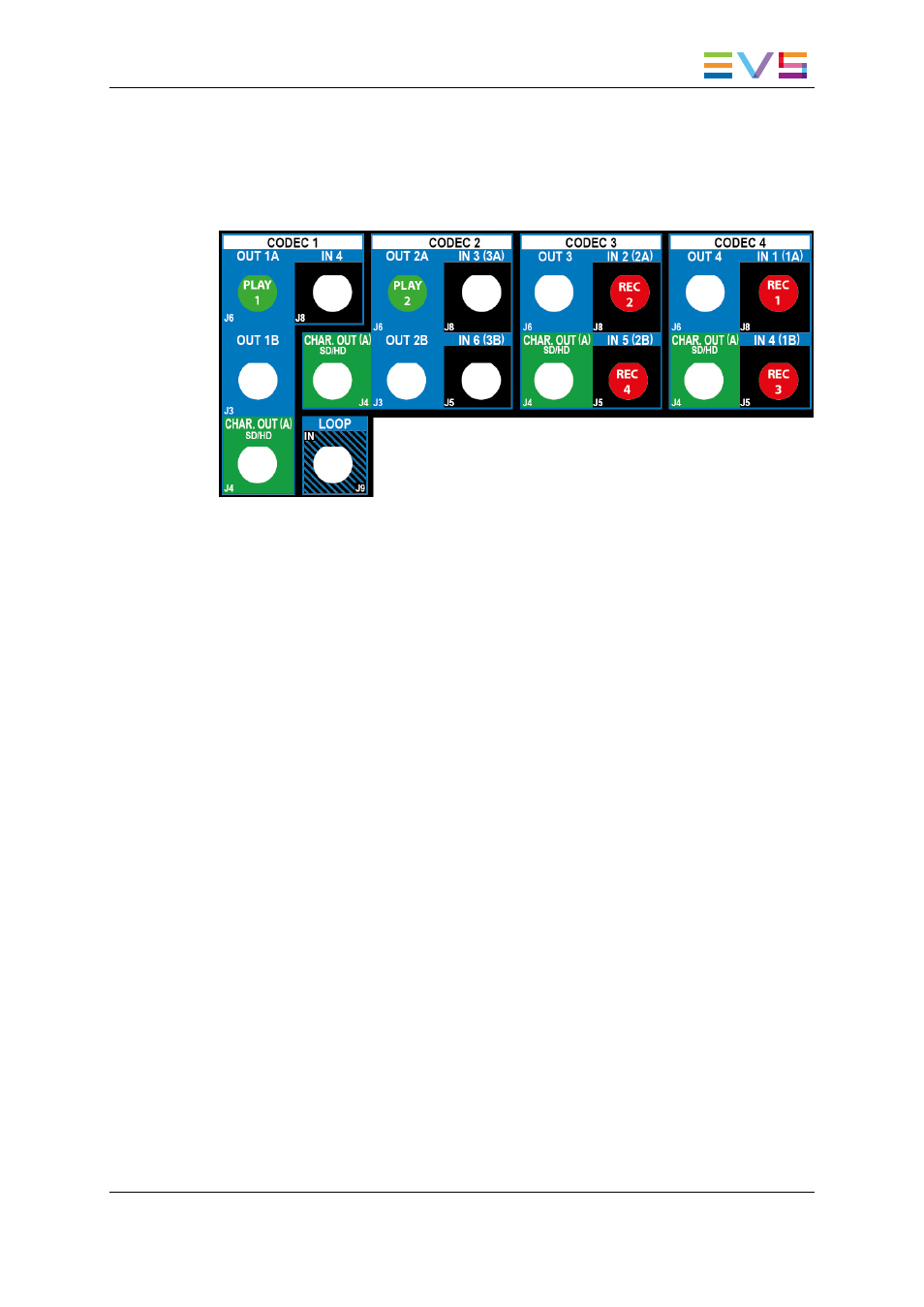

The BNC connectors to be used as record and play channels in a 4REC 2PLAY 2R/CM
configuration need to be cabled as shown below:
