Curb layout drawing, Table 34 – curb layout dimensions (cm), Fig. 10 – curb layout drawing – York ECO R-22 User Manual
Page 69
FORM 100.50-EG3 (802)
69
YORK INTERNATIONAL
Curb Layout Drawing

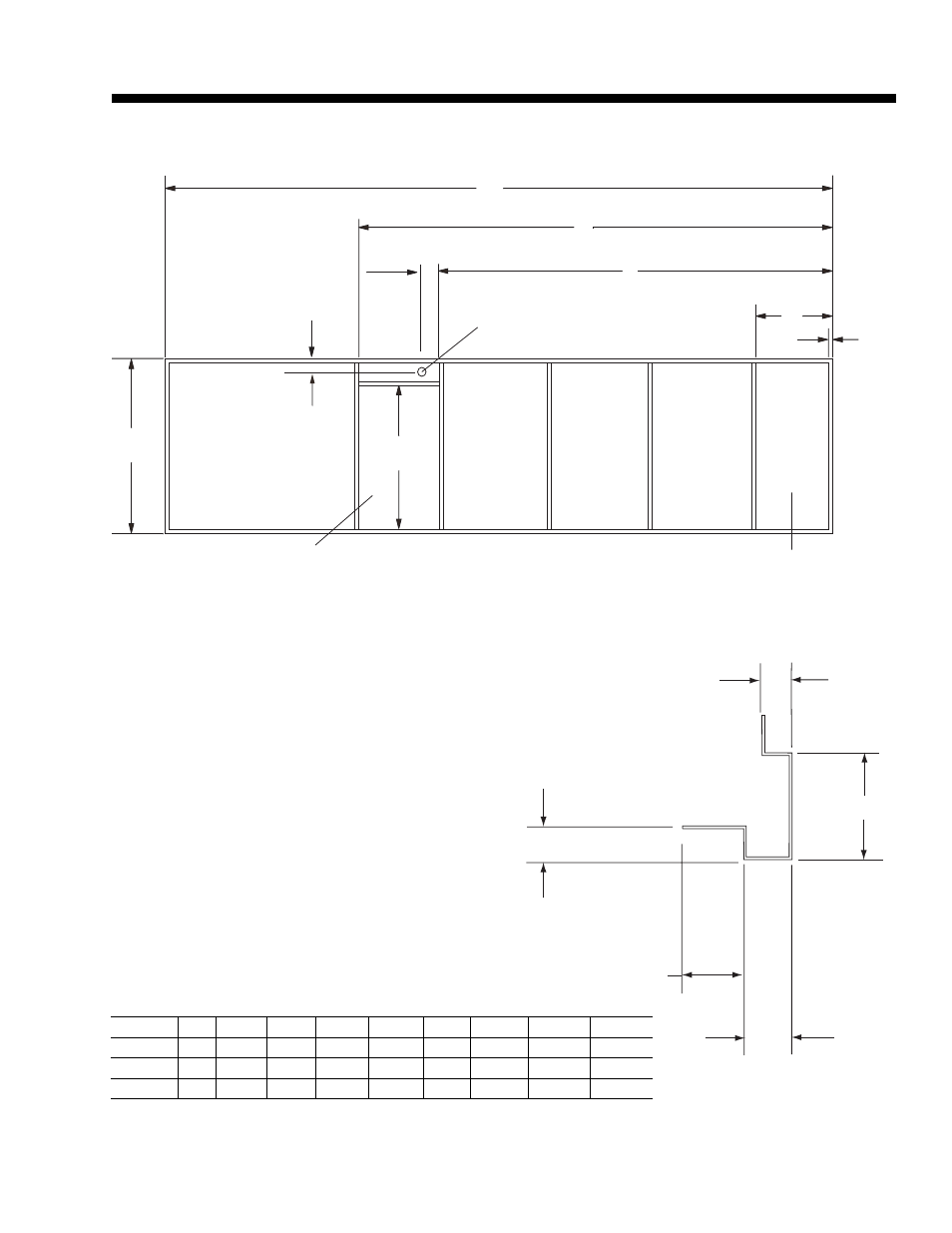

FIG. 10 – CURB LAYOUT DRAWING
3.81
6.67
5.08
11.75
3.17
LD07884
UNIT BASERAIL PROFILE
W
L
D
C
B
A
E
Supply Opening
Return Opening
Condenser
Section
6.35 Gas Outlet
3.81 MPT Connection
G
H
LD07885
MODEL
A
B
C
D
E
G
H
L
W
50-65
5.08
95.89
495.3
596.9 181.77
40.64
26.03
861.06
220.98
70-85
5.08
127
627.38 736.6 181.77
45.72
26.03
1140.46
220.98
90-95
5.08 142.88 701.04 822.96 181.77
60.96
26.03
1226.82
220.98
TABLE 34 – CURB LAYOUT DIMENSIONS (CM)
