YORK INTERNATIONAL

68

General Arrangement Drawing

–

70-95 Ton Models (ONLY)

OPTIONAL SIDE RETURN

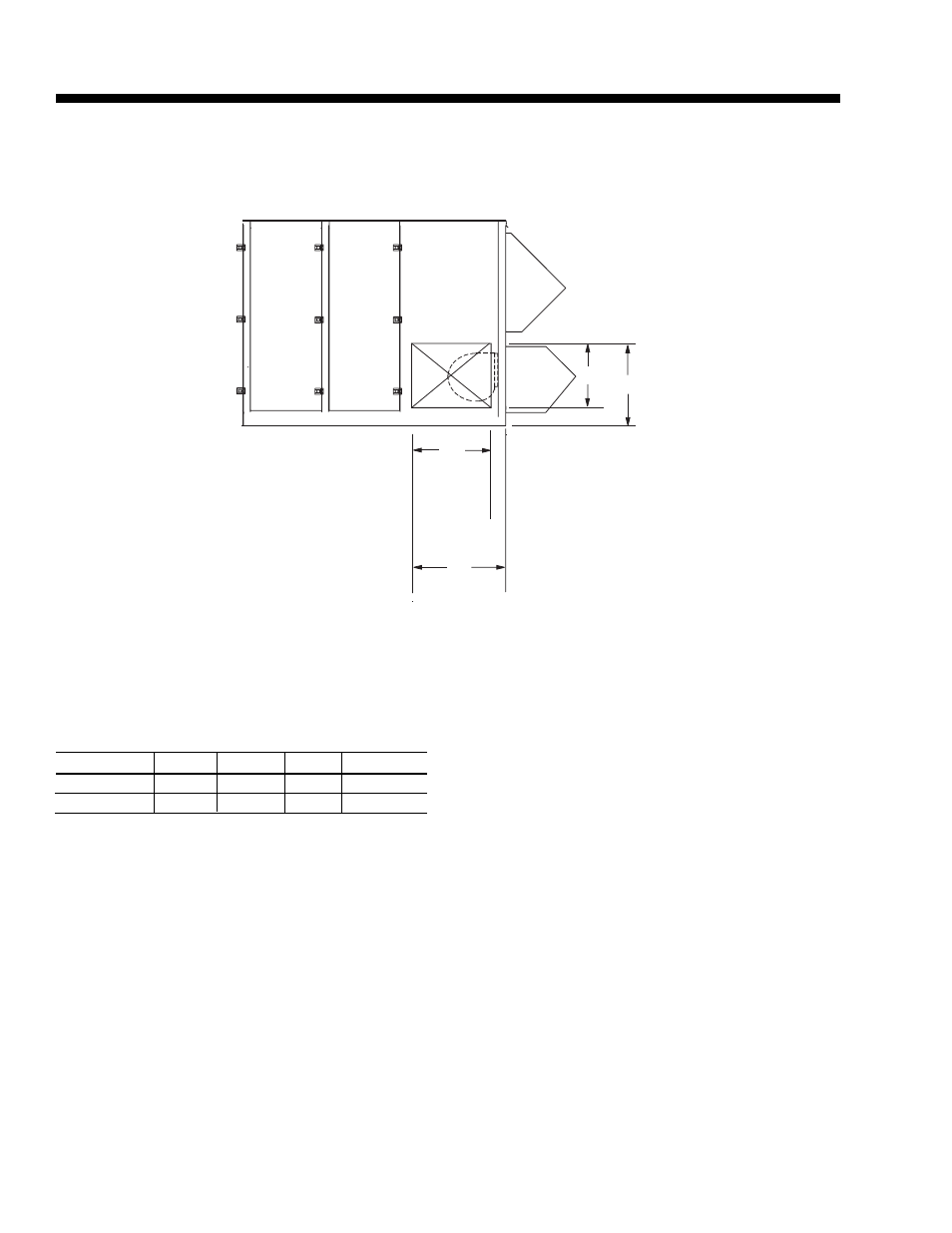

FIG. 9 – GENERAL ARRANGEMENT DRAWING – 70-95 TON MODEL (ONLY)

TABLE 33 – OPTIONAL SIDE RETURN (CM)

NOTE:

1. Left side shown, RH side available (mirror image).

B

A

C

D

LD07313

MODEL

A

B

C

D

70-85

157.80

147.32

101.6

128.91

90-95

174.62

164.14

105.73

131.13
