YORK INTERNATIONAL 66
A
L
H
B
C
D
E
F
G
J
K
R
T
S
W Y
P
M
N
U
V BB
AA
CC
DD
3.175 FPT
COUPLING
DRAIN
CONNECTION
TOP VIEW
LEFT SIDE VIEW FRONT REAR
General Arrangement Drawing
– 70-95 Ton Models
BOTTOM SUPPLY / BOTTOM RETURN
LD07882

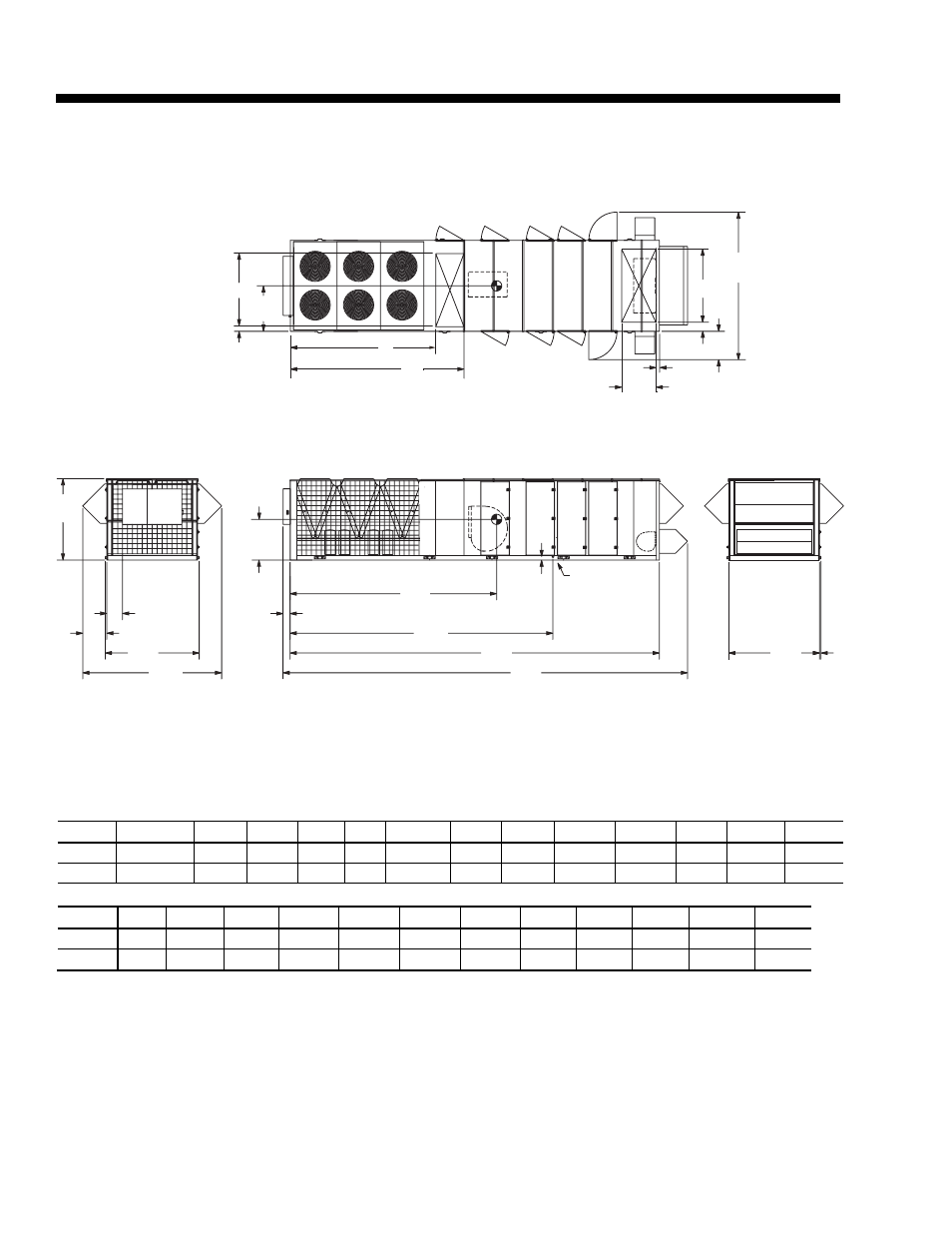

FIG. 7 – GENERAL ARRANGEMENT DRAWING – 70-95 TON MODEL
TABLE 31 – BOTTOM SUPPLY / BOTTOM RETURN (ALL DIMENSIONS ARE IN CM)
MODEL A B C D E F G H J K L M N
70-85 350.04 58.1 241.61 49.69 96.52 24.61 574.04 235.27 814.07 1260.48 1153.16 519.43 410.21
90-95 350.04 58.1 241.61 49.69 96.52 24.61 614.68 235.27 826.77 1351.28 1239.52 532.13 410.21
MODEL P R S T U V W Y AA BB CC DD
70-85 6.033 121.92 87.63 408.94 179.39 11.75 233.68 3.97 210.19 11.75 121.92 11.75
90-95 6.033 121.92 72.39 378.46 179.39 11.75 233.68 3.97 210.19 11.75 137.16 11.75
NOTES:
1. Standard configuration.
2. Center of gravity information is based on a base cooling only unit equipped with power exhaust and economizer options.
