YORK INTERNATIONAL 64
A
L
H
B
C
D
E
F
G
J
K
R
Y
T
S
M
N
P
U
V BB
AA
CC
DD
W
3.175 FPT
COUPLING
DRAIN
CONNECTION
TOP VIEW
LEFT SIDE VIEW FRONT REAR
General Arrangement Drawing –
50-65 Ton Models
LD07880
BOTTOM SUPPLY / BOTTOM RETURN

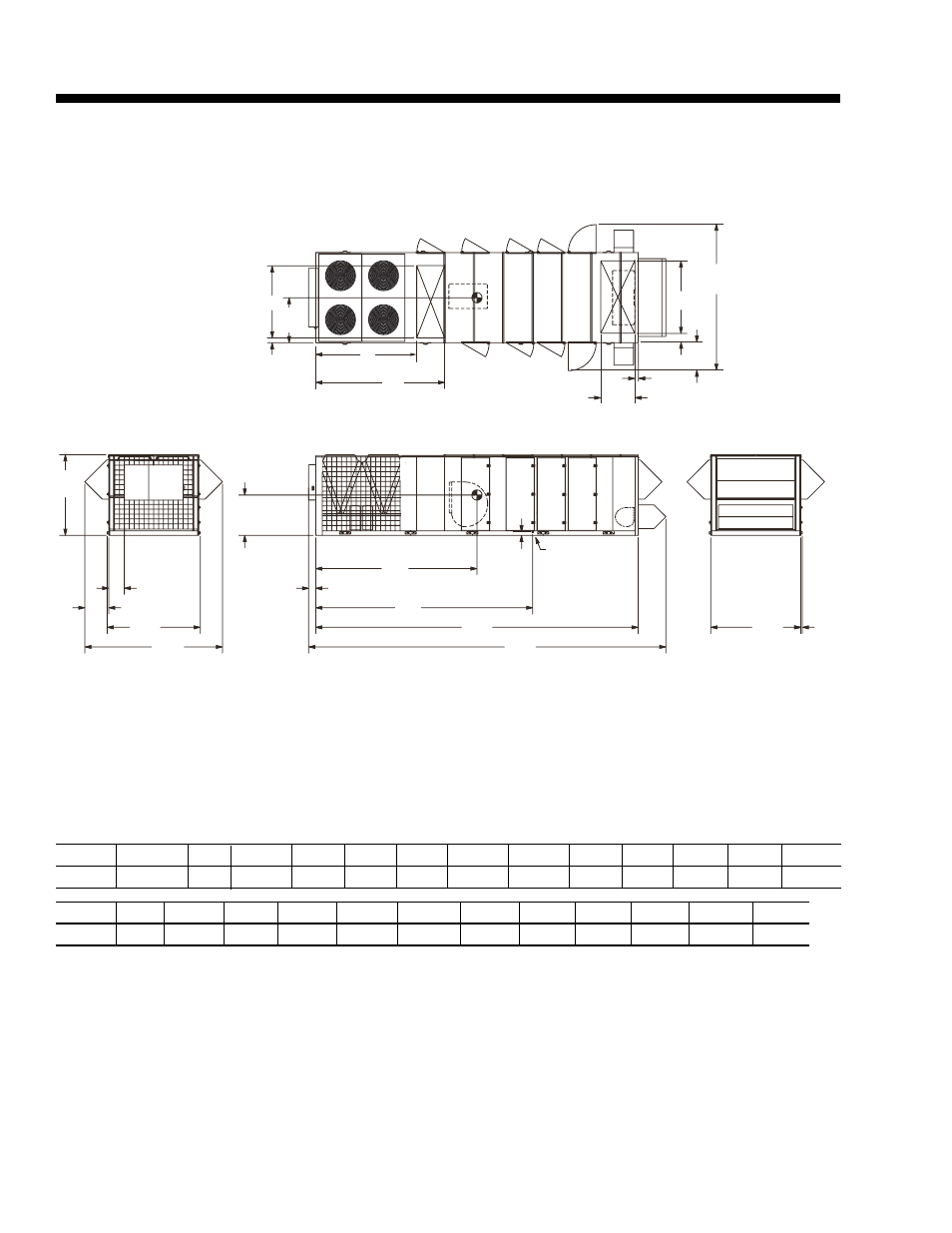

FIG. 5 – GENERAL ARRANGEMENT DRAWING – 50-65 TON MODEL
NOTES:
1. Standard configuration.
2. Center of gravity information is based on a base cooling only unit equipped with power exhaust and economizer options.
MODEL A B C D E F G H J K L M N
50-65 350.04 58.1 241.61 49.69 91.44 24.61 485.14 209.87 600.7 973.30 873.76 369.89 270.83
TABLE 29 – BOTTOM SUPPLY / BOTTOM RETURN (ALL DIMENSIONS ARE IN CM)
MODEL P R S T U V W Y AA BB CC DD
50-65 6.03 124.46 72.39 378.46 179.38 11.75 233.68 3.97 210.18 11.75 90.33 11.75
