Chapter 2 Hardware
V300 User’s Guide
34

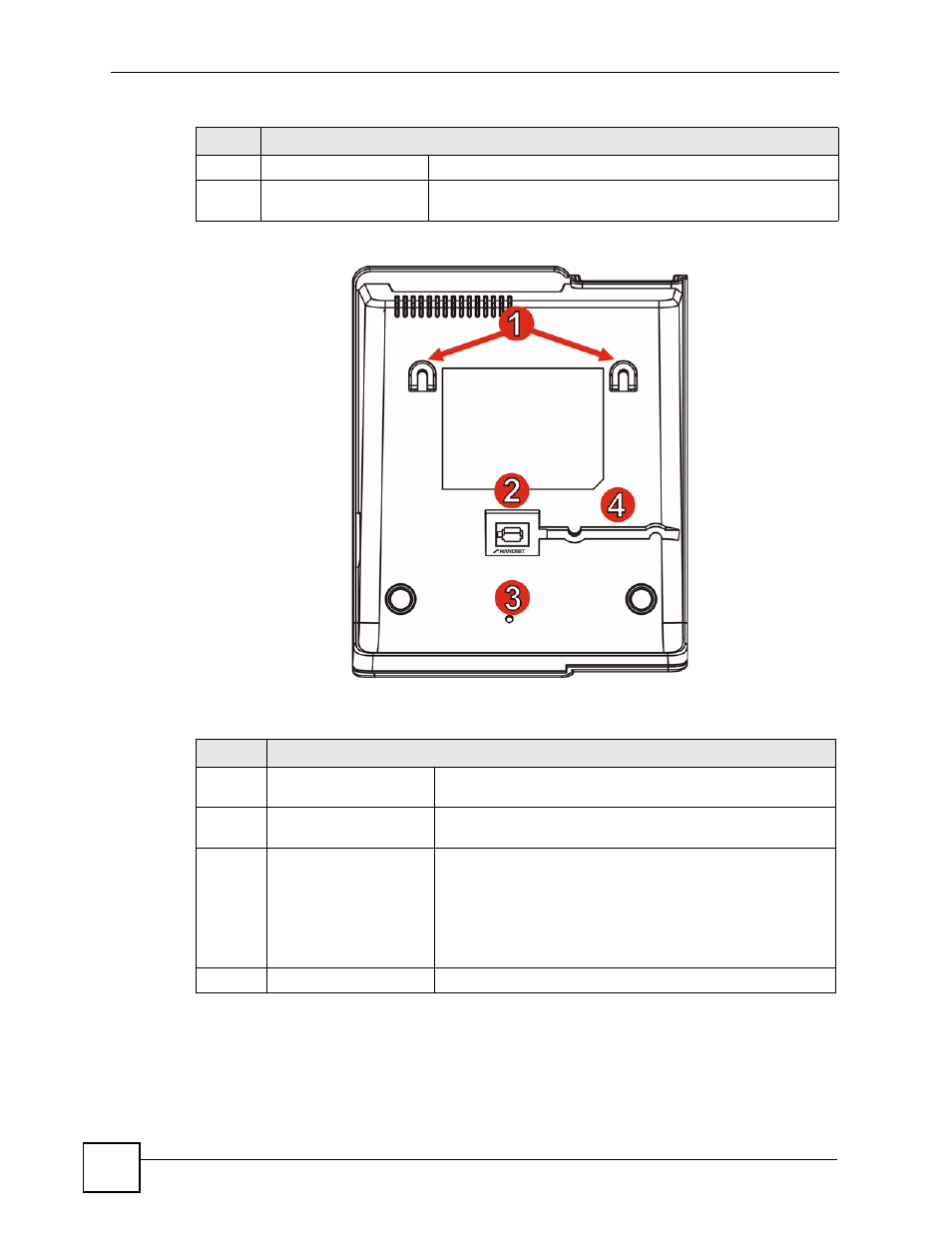

Figure 7 Base Panel Hardware
The following table describes the rear panel hardware.
2.1.1 The LCD Screen
When the V300 is on, the LCD (Liquid Crystal Display) screen shows either the status screen,
a phonebook screen, or a configuration menu.
2 LAN port Use an Ethernet cable to connect to your network.
3 PC port Use an Ethernet cable to connect a computer for configuration,
or to access the Internet.
Table 4 Base Panel Hardware
LABEL DESCRIPTION
1 Wall-mounting holes Use these to hang the V300 on a wall. See the wall-mounting
appendix for details.
2 Handset port Use this to attach the included handset cable’s RJ-11
connector.
3 Reset button Use this to return the V300 to its factory default settings. See
the appendix on product specifications for the default settings.
Note: If you do this, all configuration changes and
data on the V300 are lost, including
phonebook records.
4 Cable channel Clip the V300’s handset cable into this.
