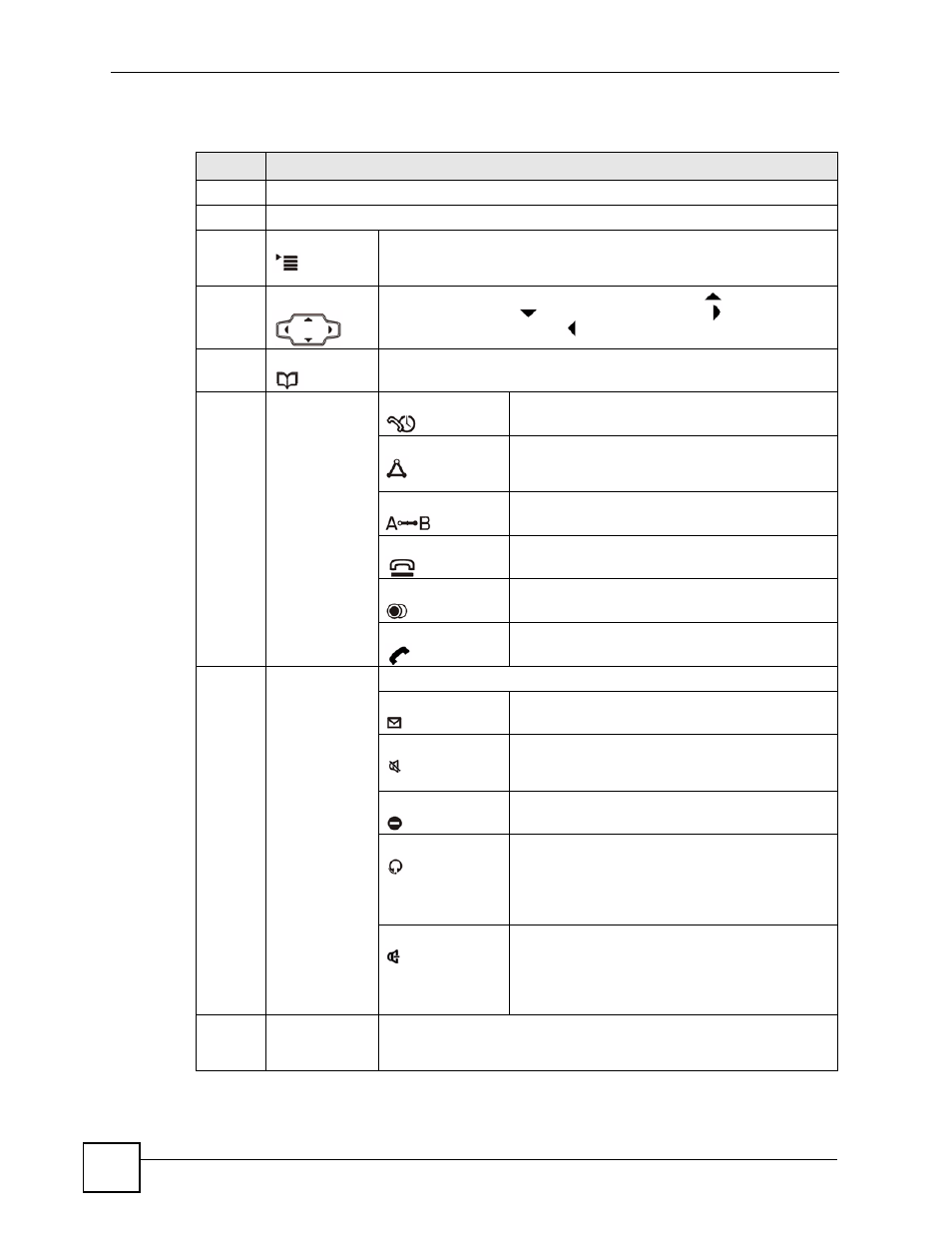

The following table describes the front panel hardware.

Table 1 Front Panel Hardware

LABEL

DESCRIPTION

Handset cradle.

LCD (Liquid Crystal Display) screen.

Press this to display the V300’s configuration menu. When the menu

displays, you can press this key again to exit the menu. The menu is not

accessible when a call is in progress.

Navigator

Use this to move around the V300’s screens. Press

to go up one line

in a menu, and press

to go down one line. Press to move one

space to the right, and press to move one space to the left.

Phonebook

Use this to display the list of contacts stored in the V300. You can add,

edit and delete phonebook entries from this screen.

Action keys

HOLD

Use this to put a call on hold. Press it a second time

to take the call off hold.

CONFERENCE

Use this to set up a conference call between the

V300 and two other phones, or to split a

conference call you set up into two separate calls.

TRANSFER

Use this to transfer a call to another phone.

HANG UP

Use this to end a call.

REDIAL

Use this to dial the last number that was called from

the V300.

SEND

Use this to start a call, once you have entered the

phone number.

Function keys

The LEDs (lights) in these keys illuminate when they are active.

VOICEMAIL

Use this to check your voicemail messages, once

the voicemail number is configured in the V300.

MUTE

Use this to mute the current call. The V300 no

longer transmits a signal, but you can still hear the

incoming signal.

DND

Use this to toggle the Do Not Disturb function on or

off.

HEADSET

Use this to activate a line using the headset, or to

transfer a call to the headset when using the

handset or the speakerphone.
When a line is active and you are using the

headset, press this key to hang up.

SPEAKER

Use this to activate a line using the speakerphone,

or to transfer a call to the speakerphone when

using the handset or the headset.
When a line is active and you are using the

speakerphone, press this key to hang up.

Alphanumeric

keypad

Use this to enter numbers, letters and symbols. Use the # key to switch

between Number mode, Uppercase mode, Lowercase mode and

Symbol mode.
