S e t t i n g U p t h e D o c u P r i n t 4 5 1 2 / 4 5 1 2 N
S e t t i n g U p G u i d e ❖ 3
Selecting a
Printer
Location
Select a printer location that meets the minimum space requirements
shown in Figure 1. Set the printer on a flat, stable surface away from
direct sunlight and electrical interference.
In selecting a location for the printer, you should also consider the
following:
• Is the Control Panel accessible for viewing and use?
• Is there enough clearance above and around the printer to replace
consumables?
• Is there enough clearance above the printer to add the optional High
Capacity Feeder? It adds 155 mm (6.5 in.) to the height of the
printer.
• Is there enough clearance around the printer to install options on the
controller board (accessed from the rear)?
• Is there enough clearance around the printer should it ever require
servicing? (If not, you may need to relocate the printer for
servicing.)

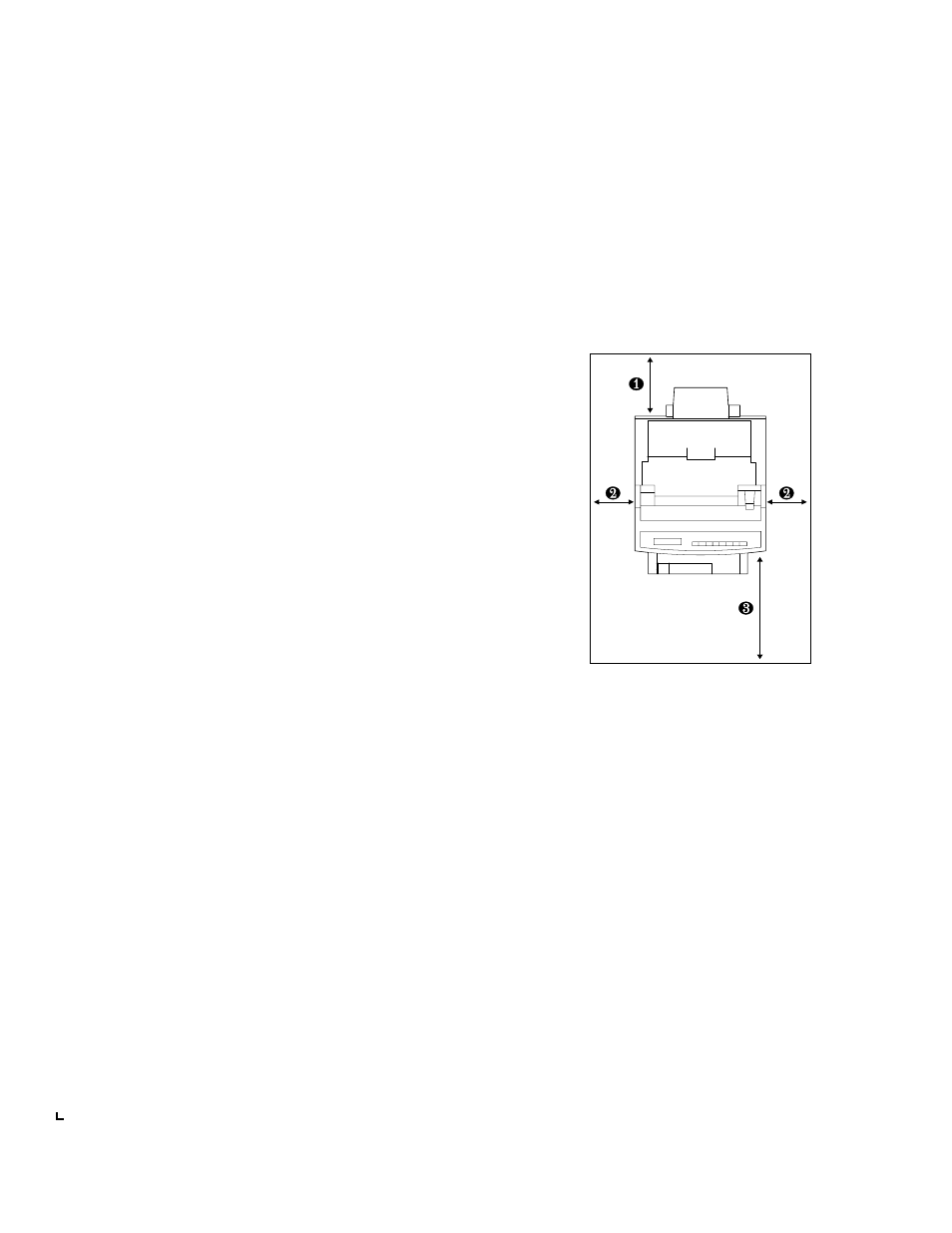

Figure 1 Minimum space
requirements around
the printer
Top View
1 8 in. (203 mm)
2 4 in. (102 mm)
3 20 in. (508 mm)
