M a n u a l F e e d G u i d e L o a d i n g
C h a p t e r 2 : P a p e r H a n d l i n g ❖ 2-9
Manual Feed
Guide Loading
To print sizes of paper that the paper trays cannot accommodate, or to
print other media such as envelopes, adhesive labels or transparencies,
you will need to feed the media into the printer manually.
Fitting and
Adjusting the
Manual Feed Guide
If the manual feed guide is not attached to the manual feed slot on the
front of the printer, start with Step 1, below. Otherwise, skip to Step 2.
Proper orientation of media in the manual feed guide is discussed in the
following sections.

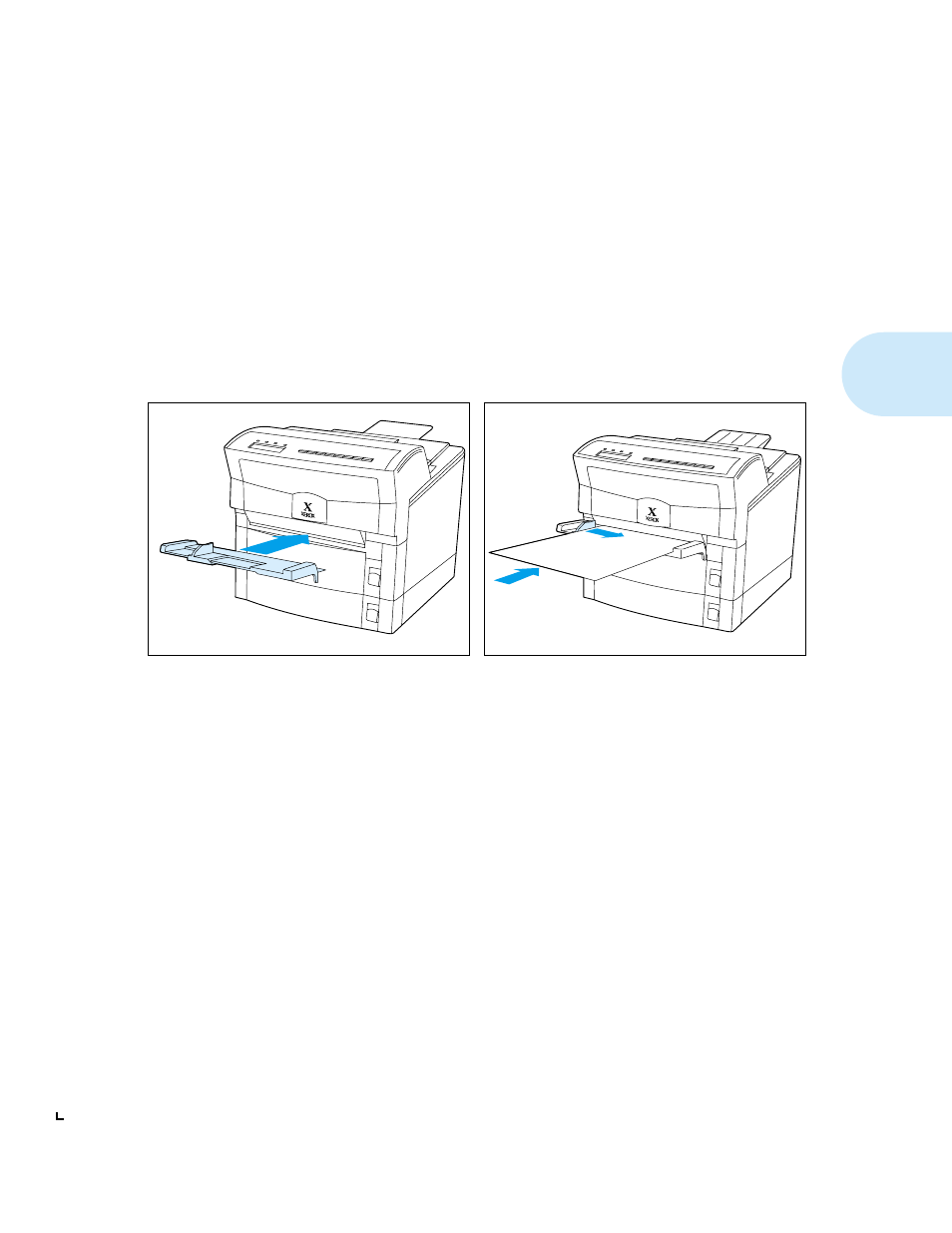

1 Insert the manual feed guide into the manual feed
slot on the front of the printer.
It should rest on its support brackets in an almost
horizontal position.
2 Place the item you want to print on the manual
feed guide, lined up along the right edge. Then
move the adjustable edge guide gently against the
left edge of the item to be printed.
