P o s t S c r i p t B o a r d

A p p e n d i x B : I n s t a l l i n g O p t i o n s B-7

4

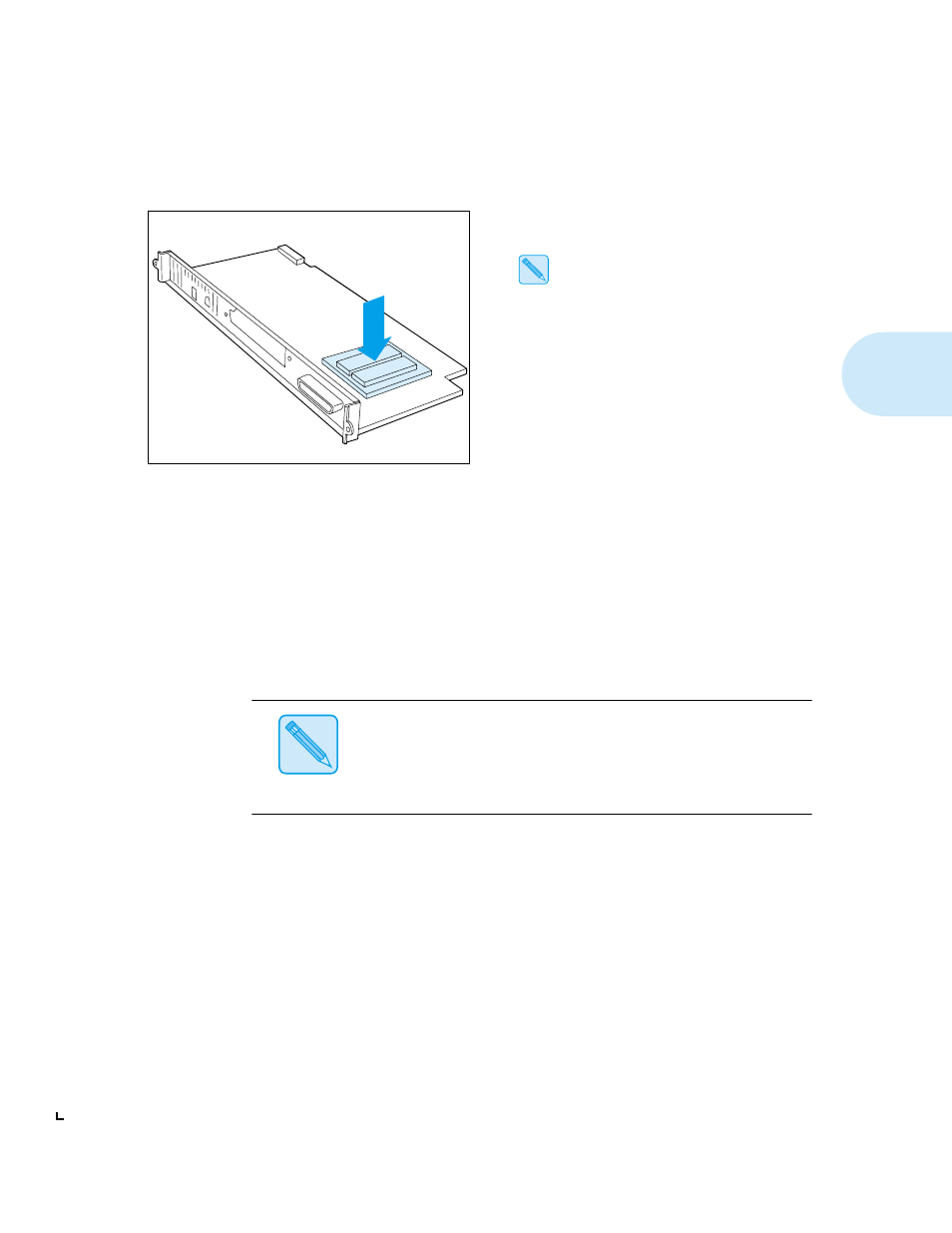

Locate the socket on the right side of the
controller board.

There is a plug on the bottom of the
PostScript board that fits into the socket.
There is also a plastic post fitted on the
bottom of the PostScript board near the
edge opposite the connector. The plastic
post fits into a hole at the side of the

controller board.

Line up the PostScript board plug with the
controller board socket and the plastic post

with its locating hole. Then push the board
into place.

5

Reinstall the controller board by sliding it carefully along the guide rails in the printer and gently
pushing it back into place. When it is properly seated, replace the retaining screws.

6

Reconnect all cables to the printer and power it ON.

7

Print out a Configuration Sheet (see page 3-17) to check that the printer recognizes the PostScript
board.

Note

Keep the original packaging material in case you ever need to remove

the option.
