I n t r o d u c t i o n
C h a p t e r 1 : I n t r o d u c t i o n ❖ 1-3
Printer
Components
The major printer components are indicated below.

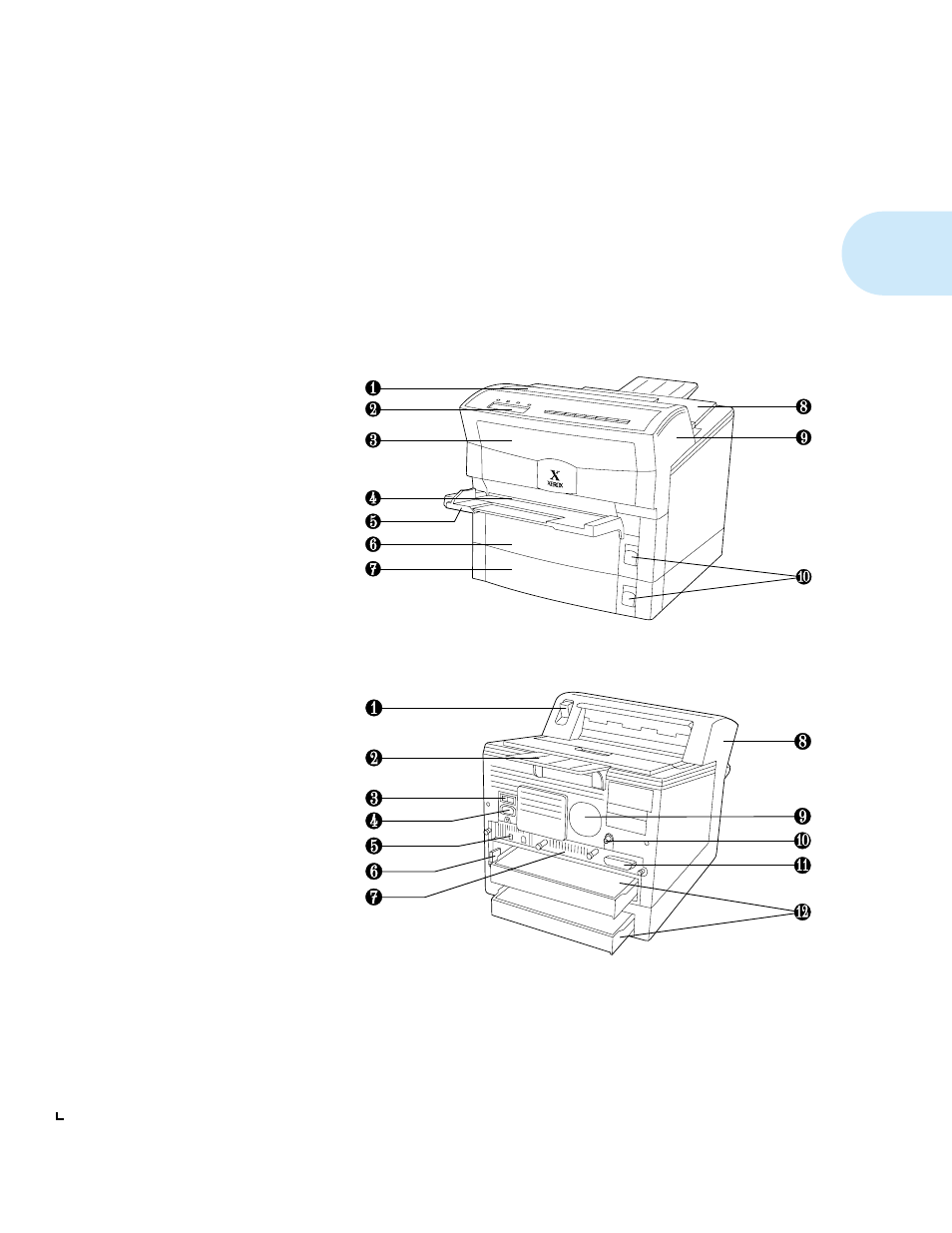

Figure 1.1 Major printer components
Front View
1 Fuser Cover
2 Control Panel Display
3 Front Cover
4 Manual Feed Slot
5 Manual Feed Guide
6 Upper Paper Tray
7 Lower Paper Tray
8 Paper Output Tray
9 Top Cover
10 Tray Release Buttons
Rear View
1 Top Cover Release Lever
2 Tray Extension
3 Power Switch
4 Power Cord Connector
5 High Capacity Feeder
Connector
6 Corotron Cleaner
7 Controller Board
8 Top Cover
9 Cooling Fan Outlet
10 Print Density Adjuster
11 Parallel Interface
12 Paper Trays
