R e p l a c i n g t h e P h o t o c o n d u c t o r / D r u m
C h a p t e r 7 : P r i n t e r M a i n t e n a n c e a n d C o n s u m a b l e s ❖ 7-7

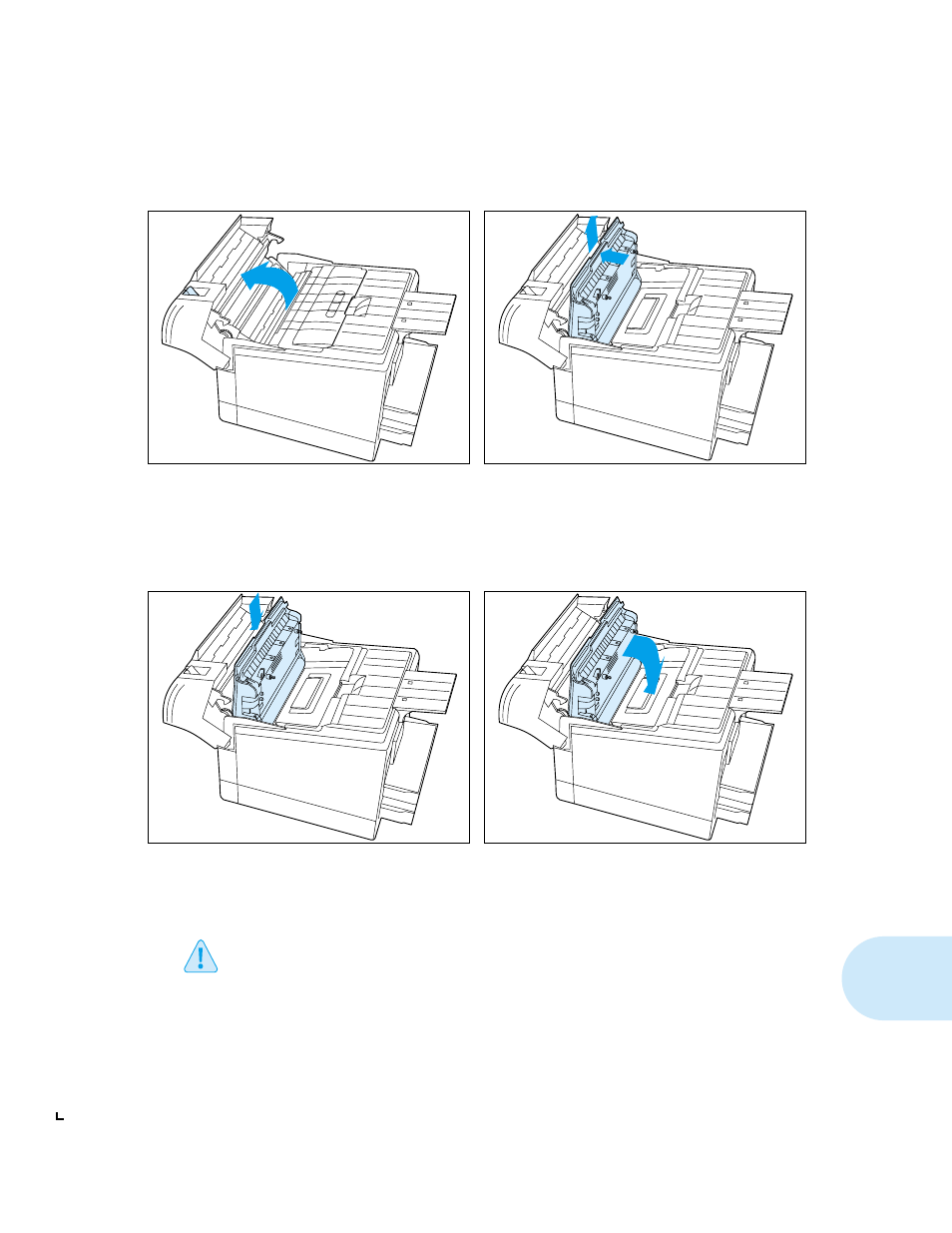

1 Power OFF the printer and open the top cover
by pulling up on the top cover release lever and
pivoting the cover toward the front of the
printer.
2 Pivot the old Photoconductor / Drum up
toward the front of the printer and lift it
straight up and out.
3 Remove the new Photoconductor / Drum from
its wrapper and insert it vertically into the
slots on the sides of the interior.
The Photoconductor / Drum is easily
damaged. Do not touch the drum or
expose it to direct light.
4 Pivot the Photoconductor / Drum down toward
the back of the printer until it falls into place
horizontally.
