Chapter 2 Introducing the Web Configurator

P-2602H(W)(L)-DxA User’s Guide

50

2.2 Web Configurator Main Screen

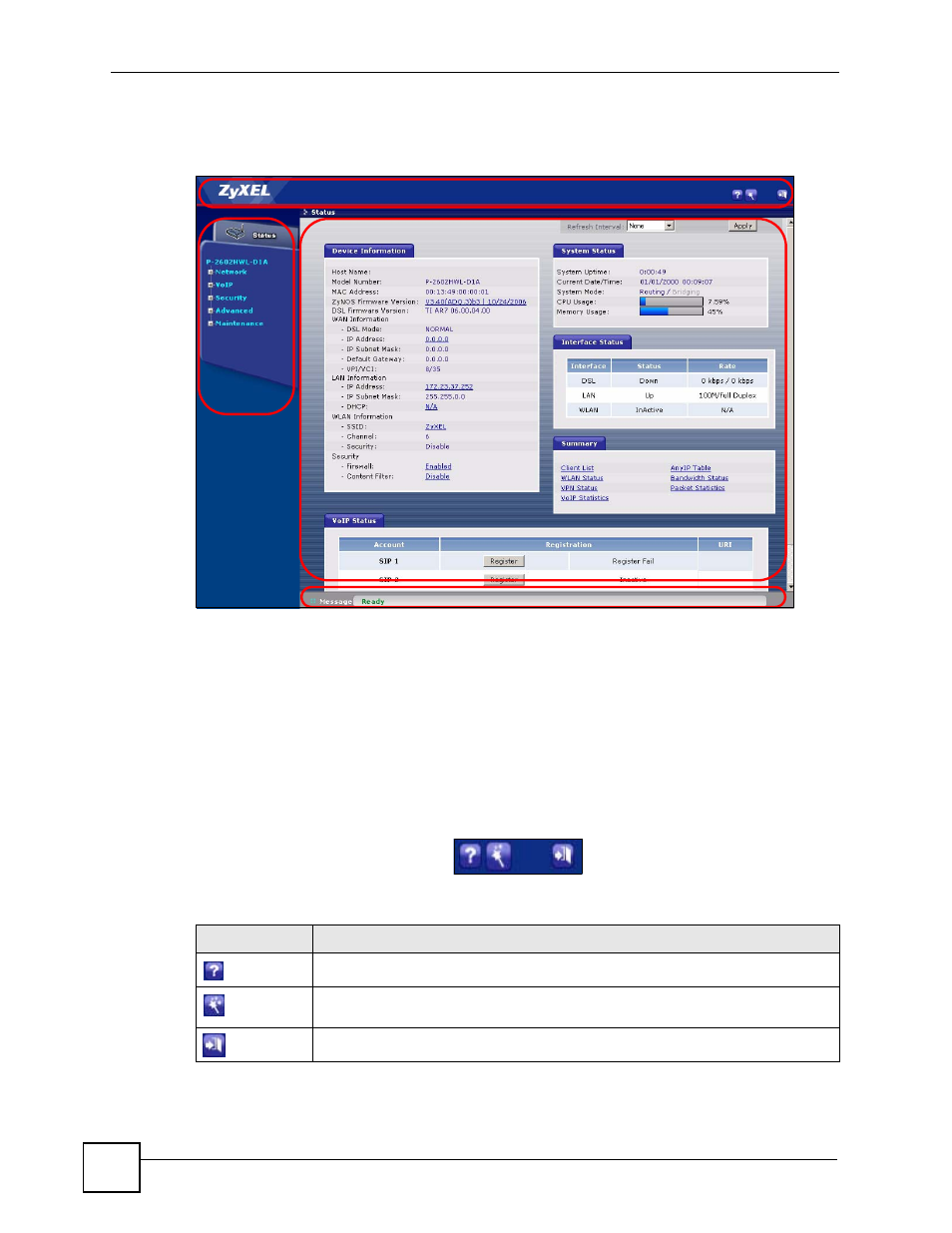

Figure 11 Main Screen

As illustrated above, the main screen is divided into these parts:

• A - title bar
• B - navigation panel
• C - main window
• D - status bar

2.2.1 Title Bar

The title bar allows you to change the language and provides some icons in the upper right
corner.

The icons provide the following functions.

A

B

C

D

Table 3 Web Configurator Icons in the Title Bar

ICON

DESCRIPTION

Help: Click this icon to open up help screens.

Wizards: Click this icon to go to the configuration wizards. See

Chapter 3 on page

57

for more information.

Logout: Click this icon to log out of the web configurator.
