Chapter 27 Tools
P-2602H(W)(L)-DxA User’s Guide
348

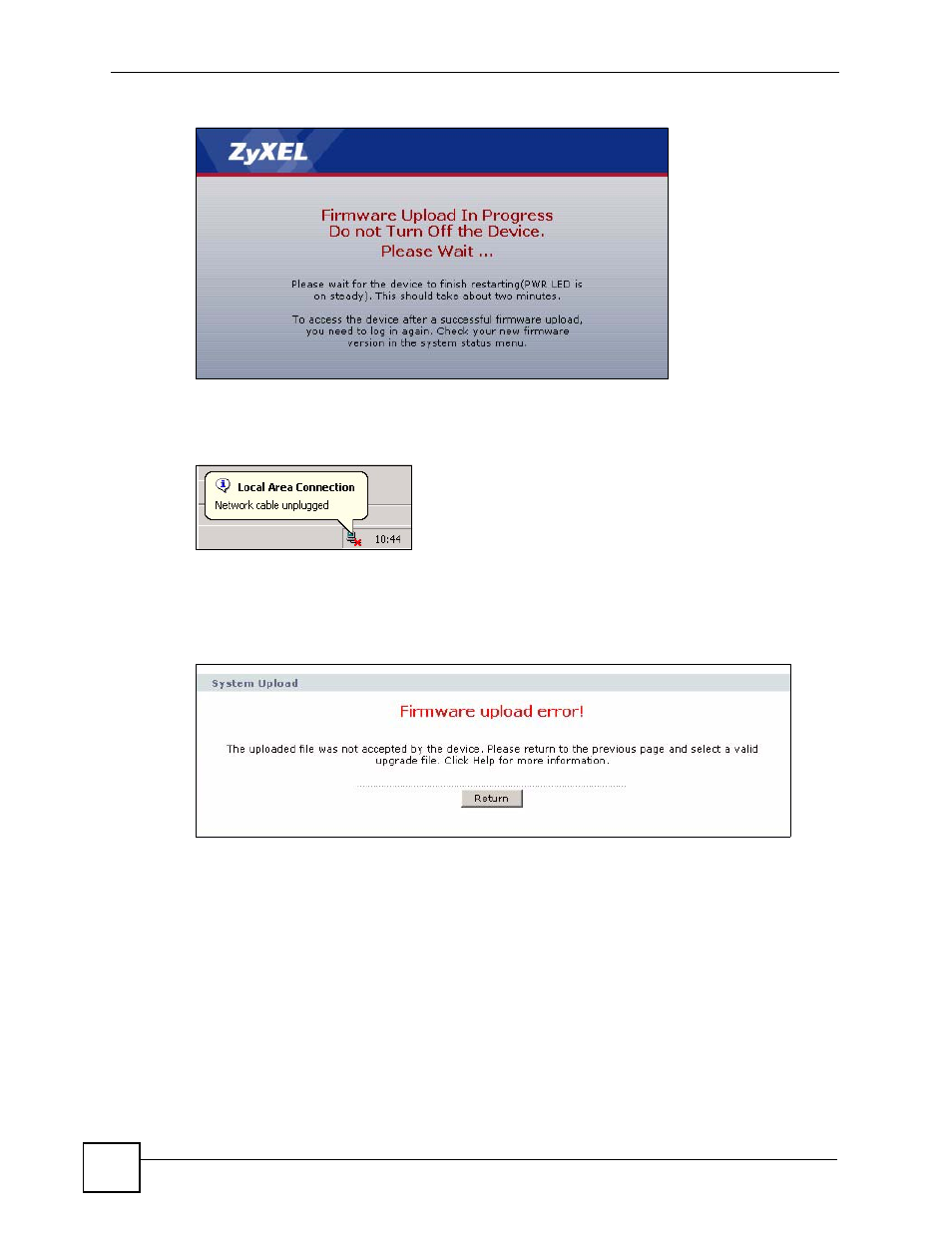

Figure 205 Firmware Upload In Progress
The ZyXEL Device automatically restarts in this time causing a temporary network
disconnect. In some operating systems, you may see the following icon on your desktop.
Figure 206 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the Status screen.
If the upload was not successful, the following screen will appear. Click Return to go back to
the Firmware screen.
Figure 207 Error Message
27.5 Backup and Restore
See Section 27.7 on page 351 and Section 27.8 on page 354 for transferring configuration files
using FTP/TFTP commands.
Click Maintenance > Tools > Configuration. Information related to factory defaults, backup
configuration, and restoring configuration appears in this screen, as shown next.
