Chapter 27 Tools
P-2602H(W)(L)-DxA User’s Guide
350

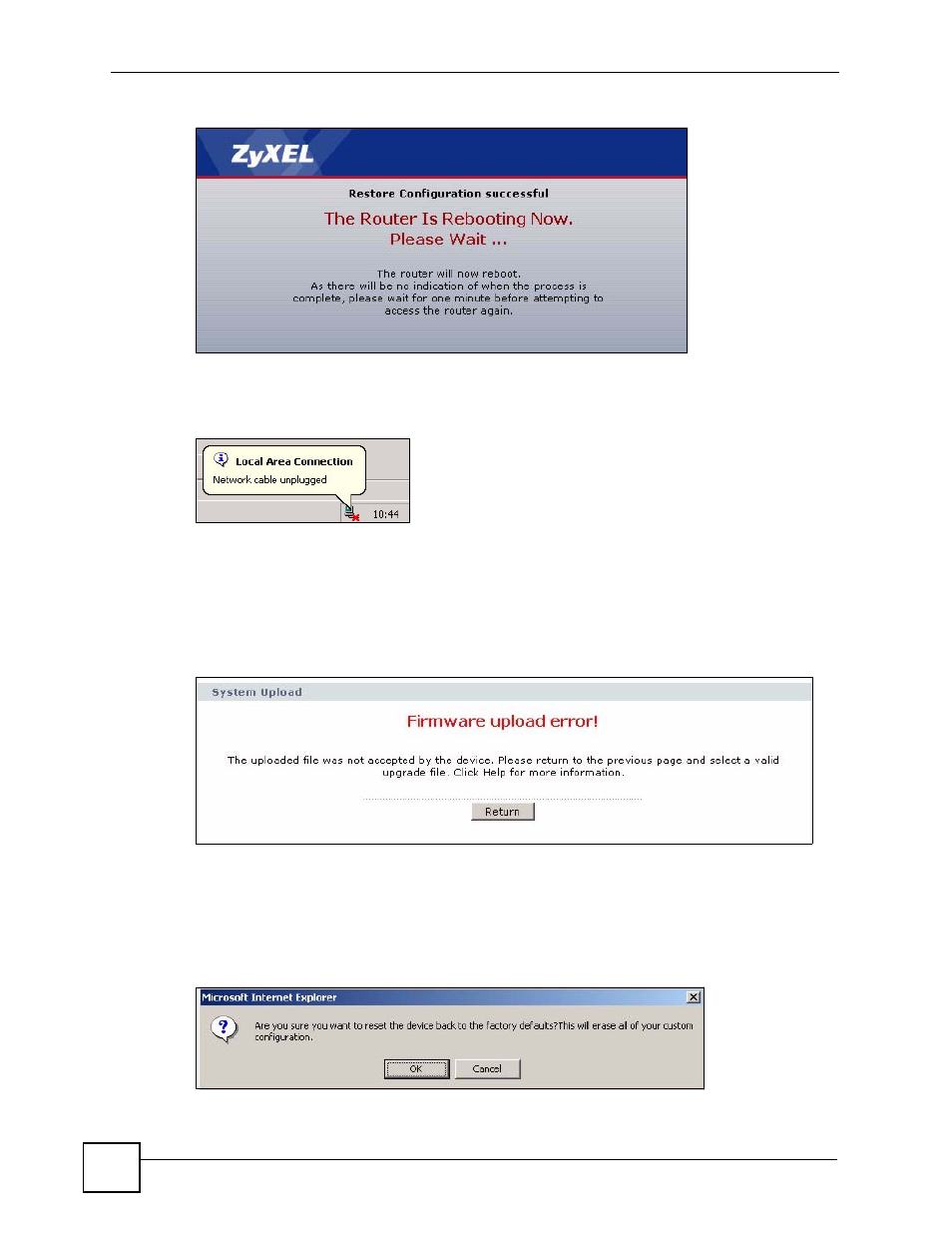

Figure 209 Configuration Upload Successful
The ZyXEL Device automatically restarts in this time causing a temporary network
disconnect. In some operating systems, you may see the following icon on your desktop.
Figure 210 Network Temporarily Disconnected
If you uploaded the default configuration file you may need to change the IP address of your
computer to be in the same subnet as that of the default device IP address (192.168.1.1). See
Appendix B on page 381 for details on how to set up your computer’s IP address.
If the upload was not successful, the following screen will appear. Click Return to go back to
the Configuration screen.
Figure 211 Configuration Upload Error
27.5.3 Reset to Factory Defaults
Click the Reset button to clear all user-entered configuration information and return the
ZyXEL Device to its factory defaults. The following warning screen appears.
Figure 212 Reset Warning Message
