21.7.1 Rule Configuration
Click the Edit icon or User defined in the Service field to configure a bandwidth management
rule. Use bandwidth rules to allocate specific amounts of bandwidth capacity (bandwidth
budgets) to specific applications and/or subnets.

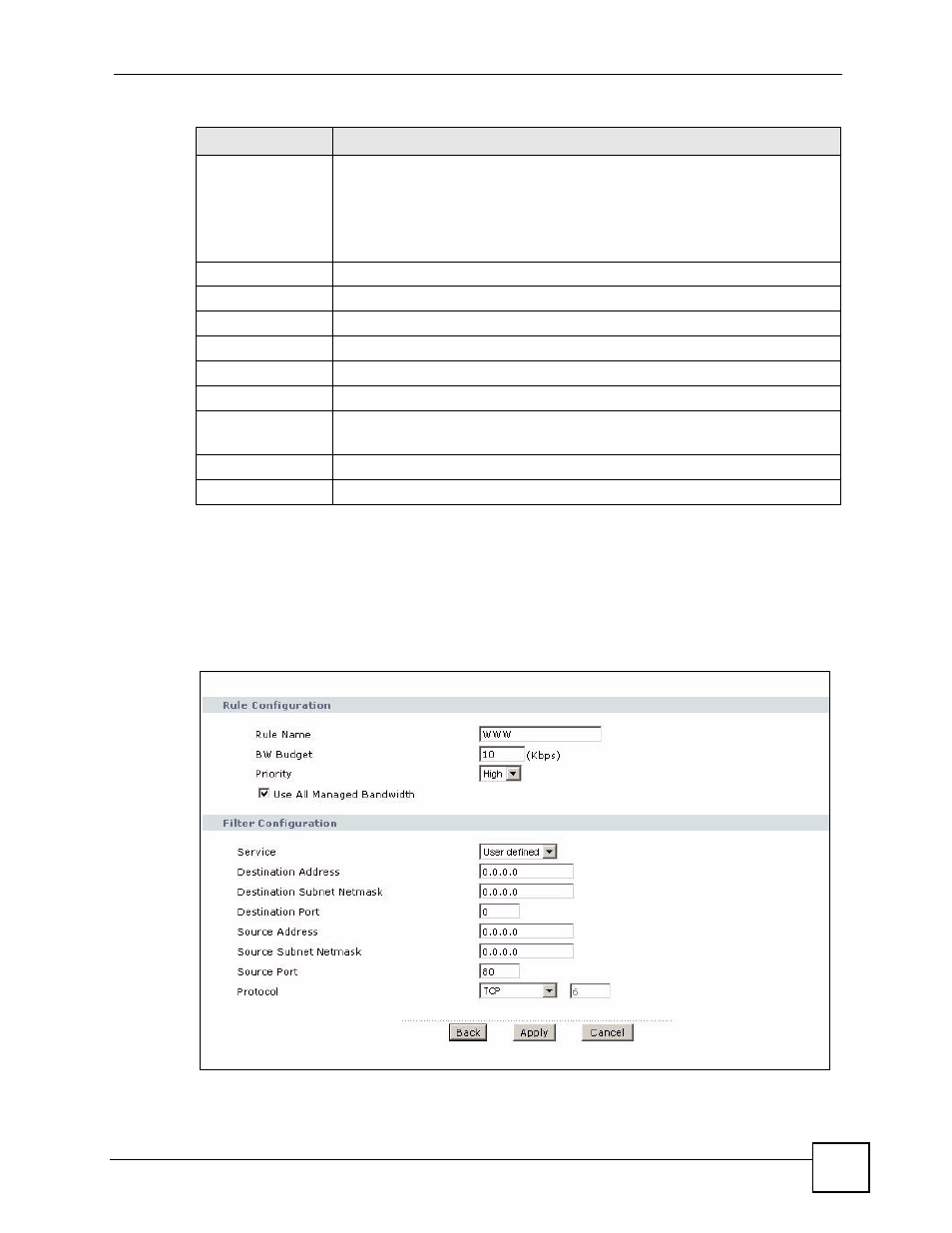

Figure 172 Bandwidth Management Rule Configuration
Bandwidth (kbps) Specify the maximum bandwidth allowed for the rule in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
rule.
If you want to leave some bandwidth for traffic that does not match a bandwidth
filter, make sure that the interface’s root class has more bandwidth than the sum
of the bandwidths of the interface’s bandwidth management rules.
Add Click this button to save your rule. It displays in the following table.
# This is the number of an individual bandwidth management rule.
Rule Name This is the name of the rule.
Destination Port This is the port number of the destination. 0 means any destination port.
Priority This is the priority of this rule.
Bandwidth (kbps) This is the maximum bandwidth allowed for the rule in kbps.
Modify Click the Edit icon to go to the screen where you can edit the rule.
Click the Remove icon to delete an existing rule.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 122 Bandwidth Management: Rule Setup (continued)
LABEL DESCRIPTION
