21.7 Bandwidth Management Rule Setup
You must use the Bandwidth Management General screen to enable bandwidth
management before you can configure rules.
Click Advanced > Bandwidth MGMT > Rule Setup to open the following screen.

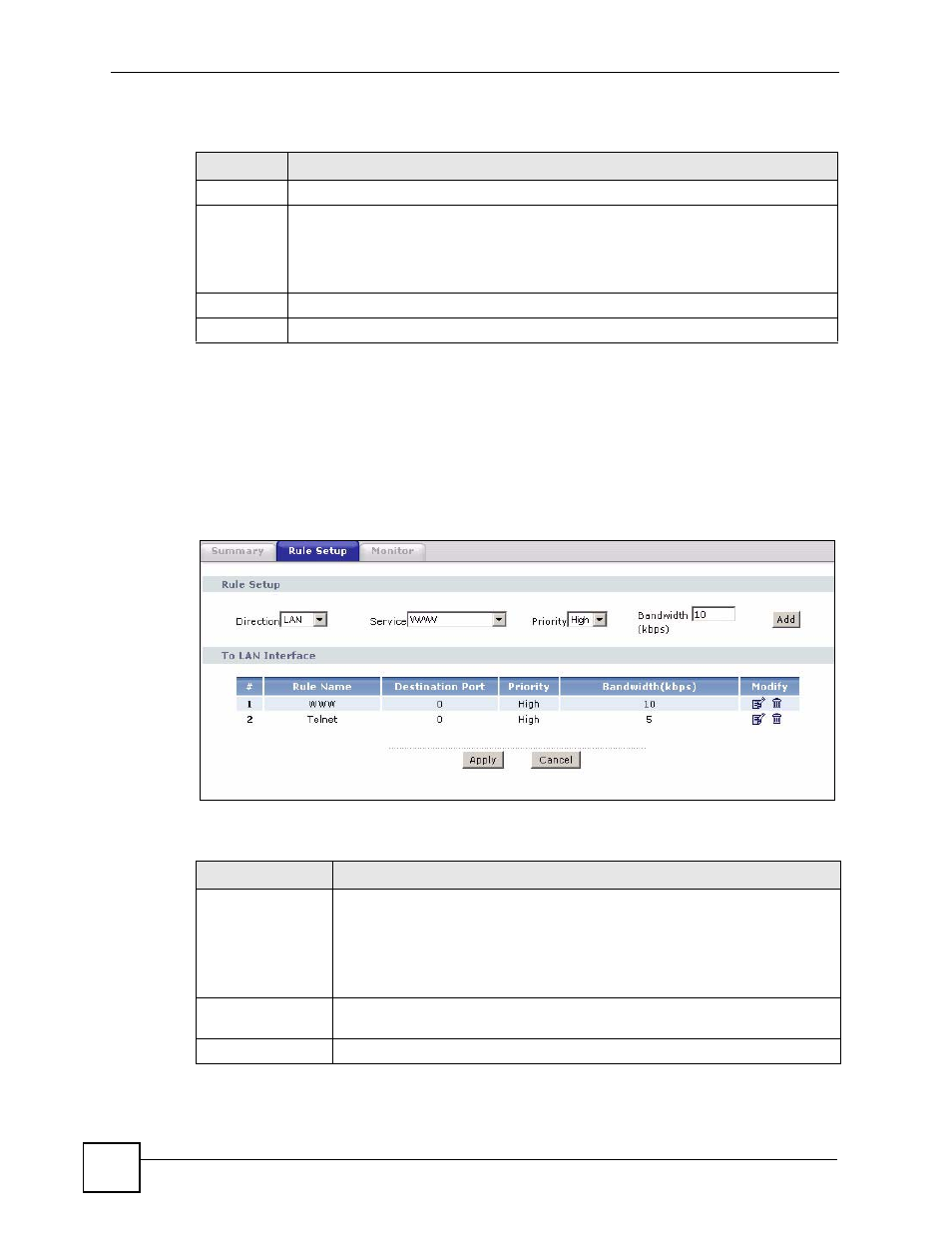

Figure 171 Bandwidth Management: Rule Setup
The following table describes the labels in this screen.
Table 121 Bandwidth Management: General
LABEL DESCRIPTION
Active Select the check box to enable bandwidth management.
Auto
Classifier
Select the check box to enable Automatic Traffic Classifier (ATC). ATC assigns each
packet to a bandwidth management class based on its size, since time-sensitive
applications such as VoIP tend to have smaller packet sizes than non-time sensitive
applications such as FTP. When ATC is enabled, traffic with a smaller packet size is
assigned a higher priority than traffic with a larger packet size.
Apply Click Apply to save your settings back to the ZyXEL Device.
Cancel Click Cancel to begin configuring this screen afresh.
Table 122 Bandwidth Management: Rule Setup
LABEL DESCRIPTION
Direction Select LAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the LAN.
Select WAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the WAN.
Select WLAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the WLAN.
Service Select a service for your rule or you can select User define to go to the screen
where you can define your own.
Priority Select a priority from the drop down list box. Choose High, Mid or Low.
