Chapter 6 Tutorials

XGS-4526 User’s Guide

68

the system name, VLAN ID and port number in the DHCP request. Client A
connects to the Switch’s port 2 in VLAN 102.

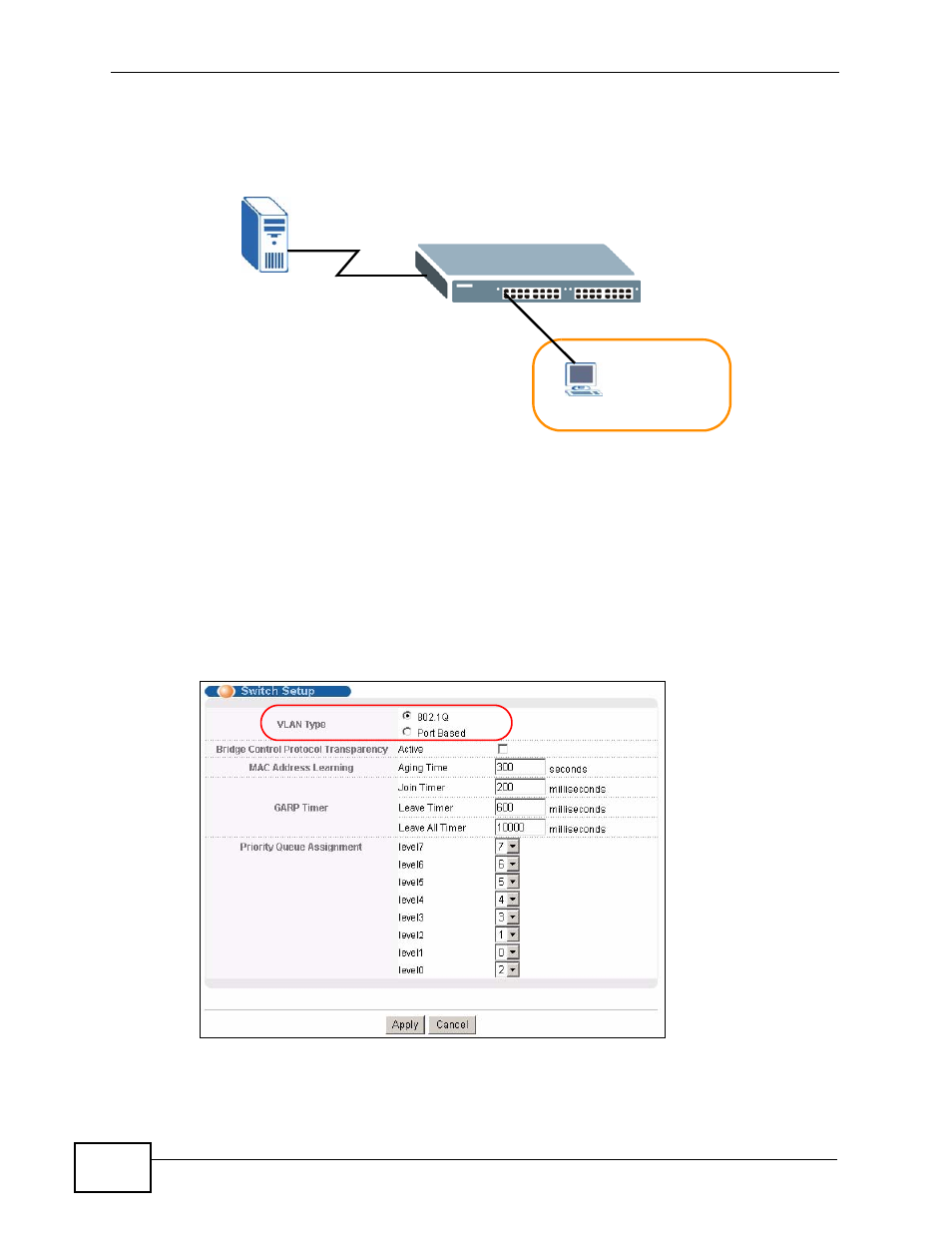

Figure 30 Tutorial: DHCP Relay Scenario

6.2.2 Creating a VLAN

Follow the steps below to configure port 2 as a member of VLAN 102.

1

Access the web configurator through the Switch’s management port.

2

Go to Basic Setting > Switch Setup and set the VLAN type to 802.1Q. Click
Apply to save the settings to the run-time memory.

Figure 31 Tutorial: Set VLAN Type to 802.1Q

3

Click Advanced Application > VLAN > Static VLAN.

VLAN 102

DHCP Server

Port 2

PVID=102

172.16.1.18

A

192.168.2.3
