Chapter 4 The Web Configurator

XGS-4526 User’s Guide

The following figure shows the navigating components of a web configurator
screen.

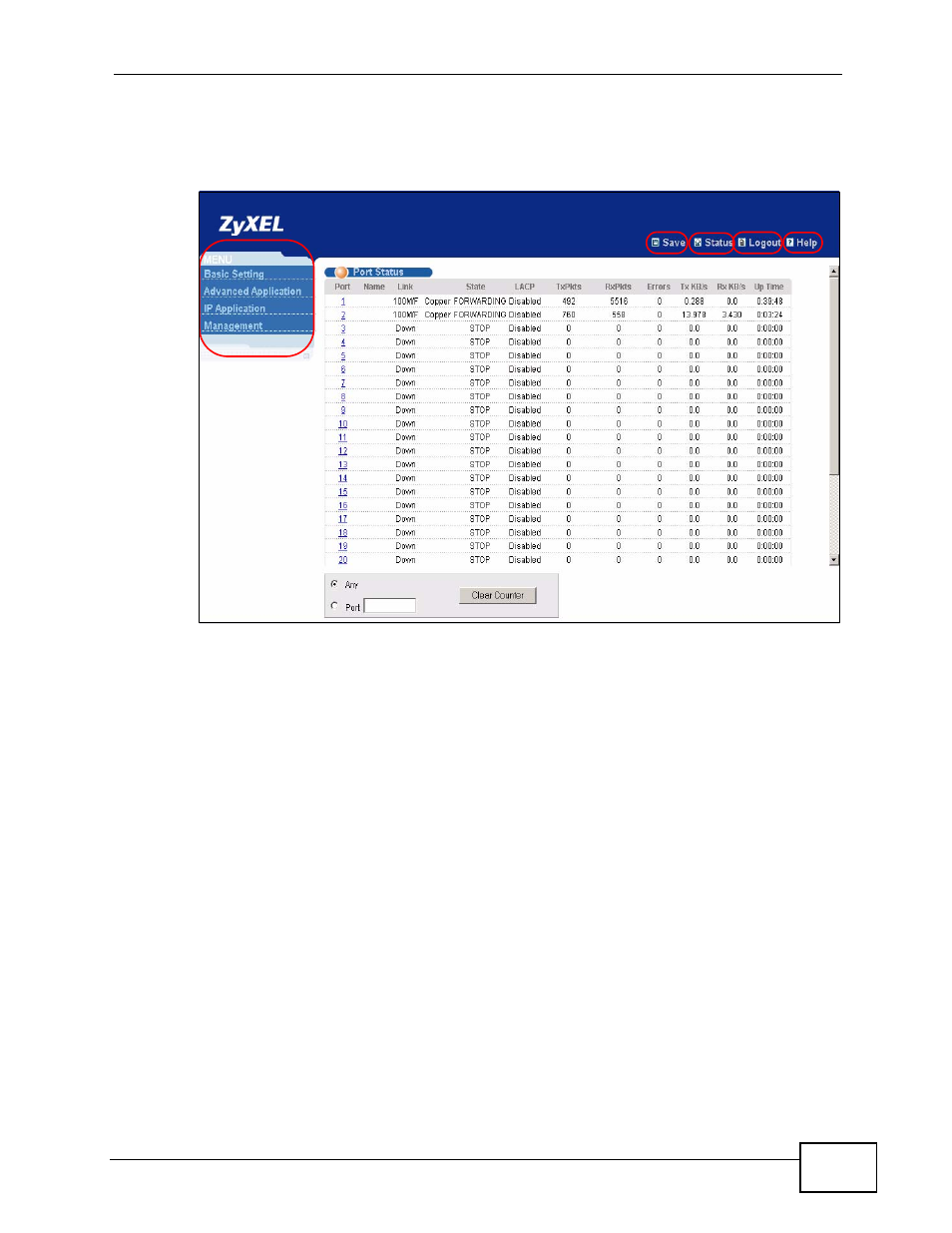

Figure 16 Web Configurator Home Screen (Status)

A - Click the menu items to open submenu links, and then click on a submenu link
to open the screen in the main window.

B, C, D, E - These are quick links which allow you to perform certain tasks no
matter which screen you are currently working in.

B - Click this link to save your configuration into the Switch’s nonvolatile memory.
Nonvolatile memory is saved in the configuration file from which the Switch
booted from and it stays the same even if the Switch’s power is turned off. See

Section 38.3 on page 339

for information on saving your settings to a specific

configuration file.

C - Click this link to go to the status page of the Switch.

D - Click this link to log out of the web configurator.

E - Click this link to display web help pages. The help pages provide descriptions
for all of the configuration screens.
