Chapter 37 VRRP
XGS-4526 User’s Guide
332
37.4.1 One Subnet Network Example
The figure below shows a simple VRRP network with only one virtual router VR1
(VRID =1) and two switches. The network is connected to the WAN via an uplink
gateway G (172.21.1.100). The host computer X is set to use VR1 as the default
gateway.

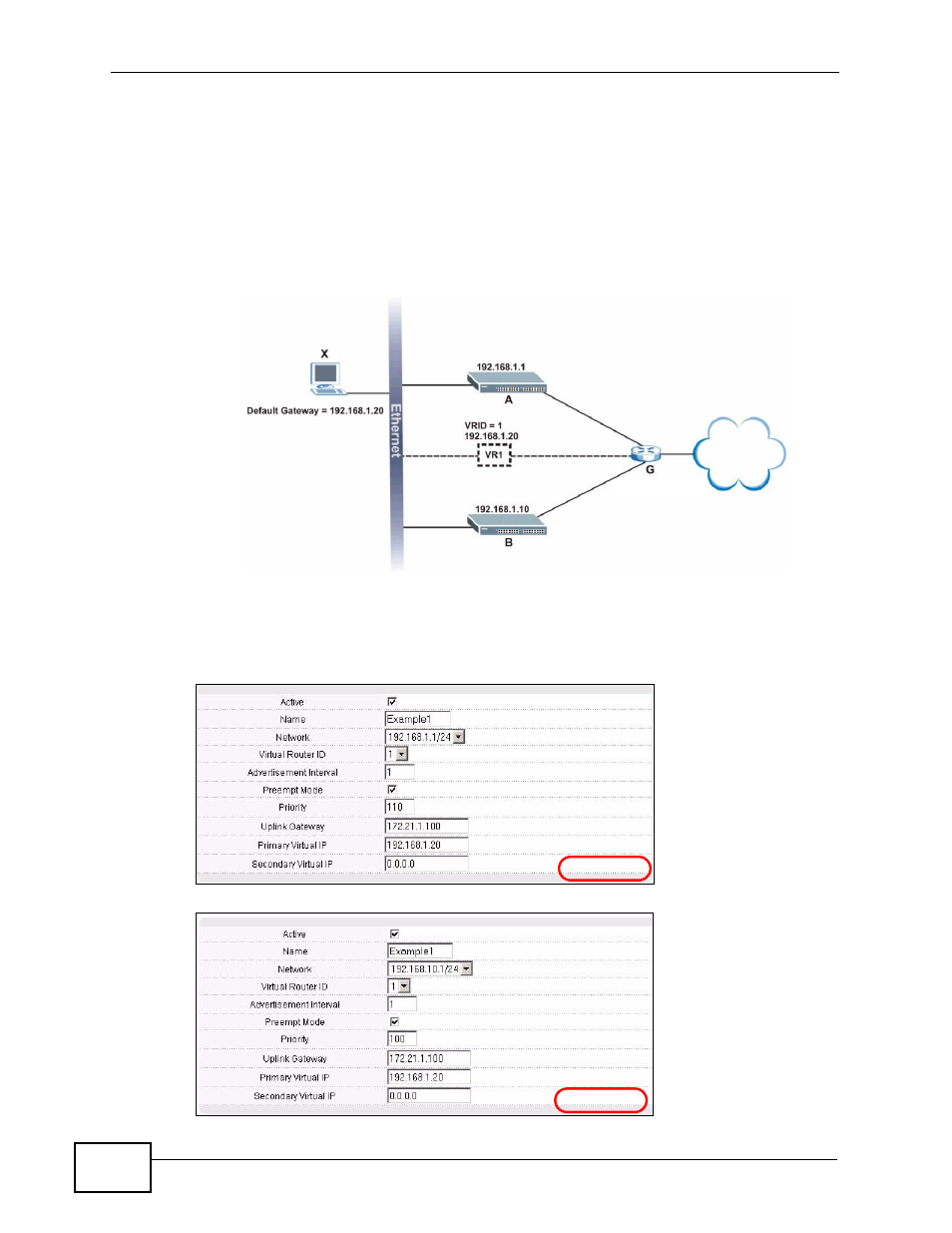

Figure 184 VRRP Configuration Example: One Virtual Router Network
You want to set switch A as the master router. Configure the VRRP parameters in
the VRRP Configuration screens on the switches as shown in the figures below.
Figure 185 VRRP Example 1: VRRP Parameter Settings on Switch A
Figure 186 VRRP Example 1: VRRP Parameter Settings on Switch B
172.21.1.1
172.21.1.
172.21.1.
EXAMPLE
EXAMPLE
