Page 139
Chapter 13 Spanning Tree Protocol
XGS-4526 User’s Guide
139
13.7 Multiple Rapid Spanning Tree Protocol
Status
Click Advanced Application > Spanning Tree Protocol in the navigation panel
to display the status screen as shown next. See
for
more information on MRSTP.
Note: This screen is only available after you activate MRSTP on the Switch.

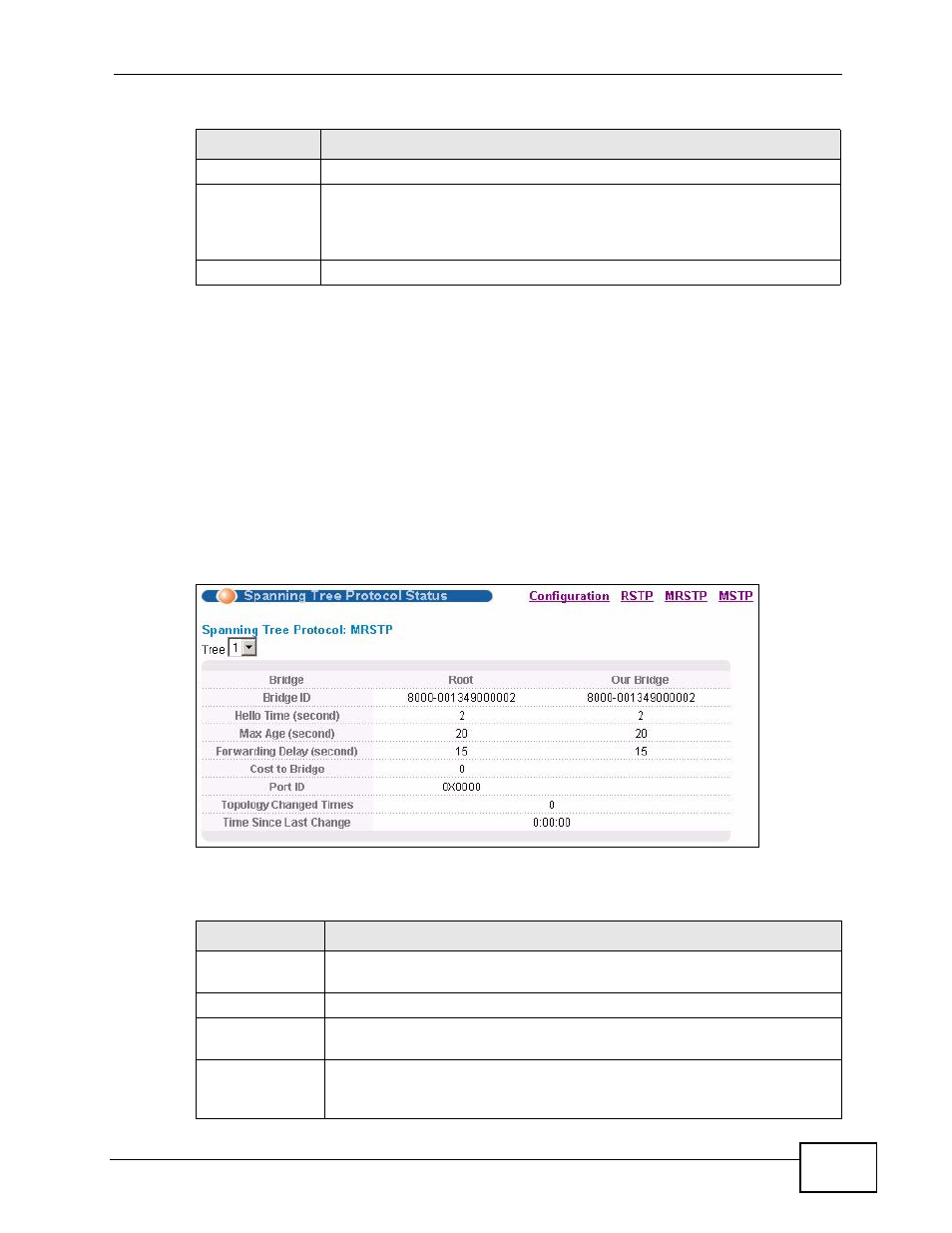

Figure 72 Advanced Application > Spanning Tree Protocol > Status: MRSTP
The following table describes the labels in this screen.
Tree
Select which STP tree configuration this port should participate in.
Apply
Click Apply to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel
Click Cancel to begin configuring this screen afresh.
Table 32 Advanced Application > Spanning Tree Protocol > MRSTP (continued)
LABEL
DESCRIPTION
Table 33 Advanced Application > Spanning Tree Protocol > Status: MRSTP
LABEL
DESCRIPTION
Configuration
Click Configuration to specify which STP mode you want to activate.
Click MRSTP to edit MRSTP settings on the Switch.
Tree
Select which STP tree configuration you want to view.
Bridge
Root refers to the base of the spanning tree (the root bridge). Our
Bridge is this Switch. This Switch may also be the root bridge.
Bridge ID
This is the unique identifier for this bridge, consisting of bridge priority
plus MAC address. This ID is the same for Root and Our Bridge if the
Switch is the root switch.
