9.5.2 Static VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See
for more information on static VLAN. Click on an index
number in the VLAN Status screen to display VLAN details.

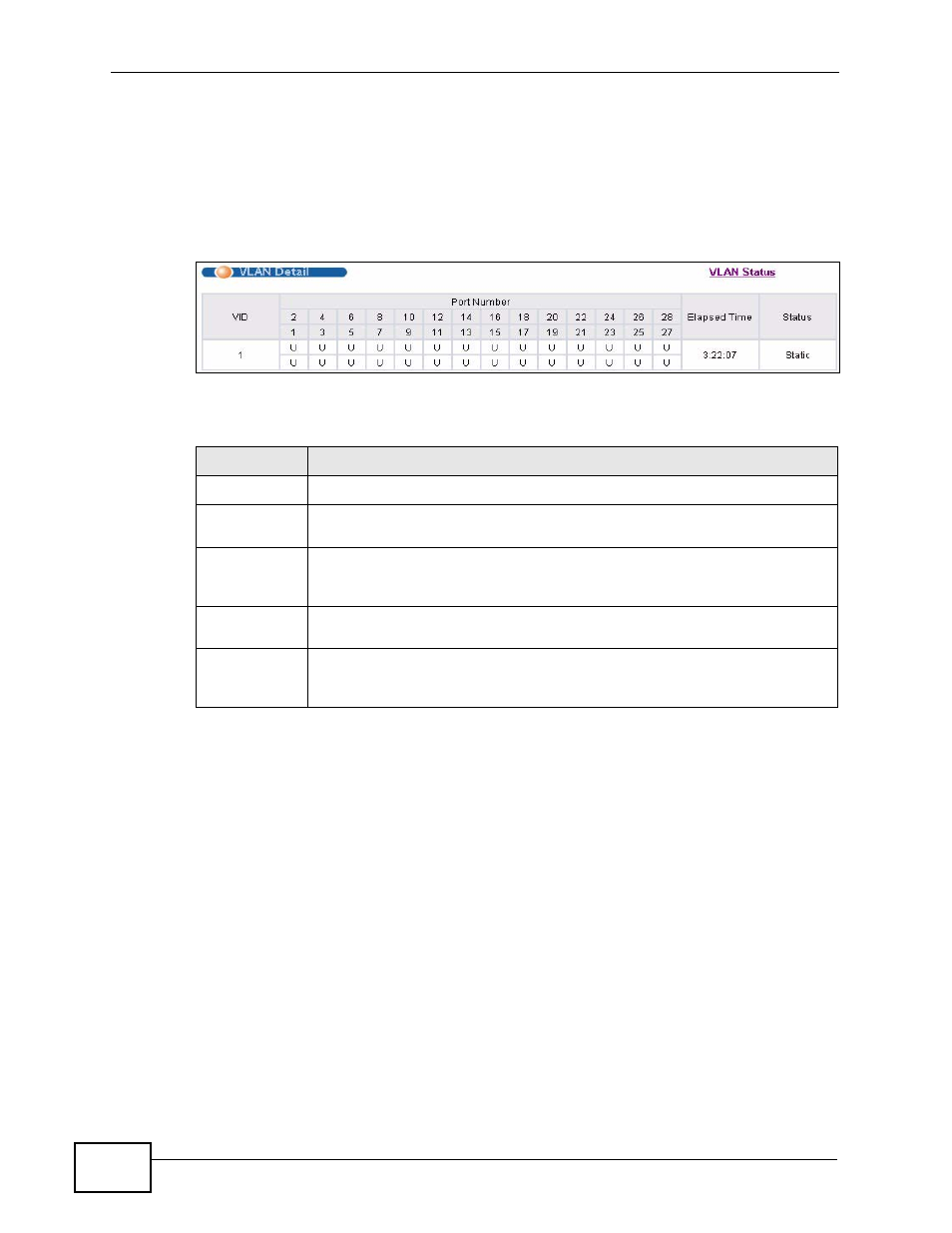

Figure 46 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
9.5.3 Configure a Static VLAN
Use this screen to configure and view 802.1Q VLAN parameters for the Switch.
See
for more information on static VLAN. To configure a
Table 18 Advanced Application > VLAN > VLAN Detail
LABEL
DESCRIPTION
VLAN Status
Click this to go to the VLAN Status screen.
VID
This is the VLAN identification number that was configured in the Static
VLAN screen.
Port Number
This column displays the ports that are participating in a VLAN. A tagged
port is marked as T, an untagged port is marked as U and ports not
participating in a VLAN are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered
or a static VLAN was set up.
Status
This field shows how this VLAN was added to the Switch; dynamic -
using GVRP, static - added as a permanent entry or other - added in
another way such as via Multicast VLAN Registration (MVR).
