Adjust Media Alignment for Rewind Option
The instructions below apply only if the printer has a Rewind option. The liner should be
installed flush against the backplate of the rewind spindle to prevent the media/backing from
winding too loosely.
Perform the adjustments in the order given. Do only what is needed to solve the problem.
To adjust the media alignment for printers with the Rewind option, complete
these steps:

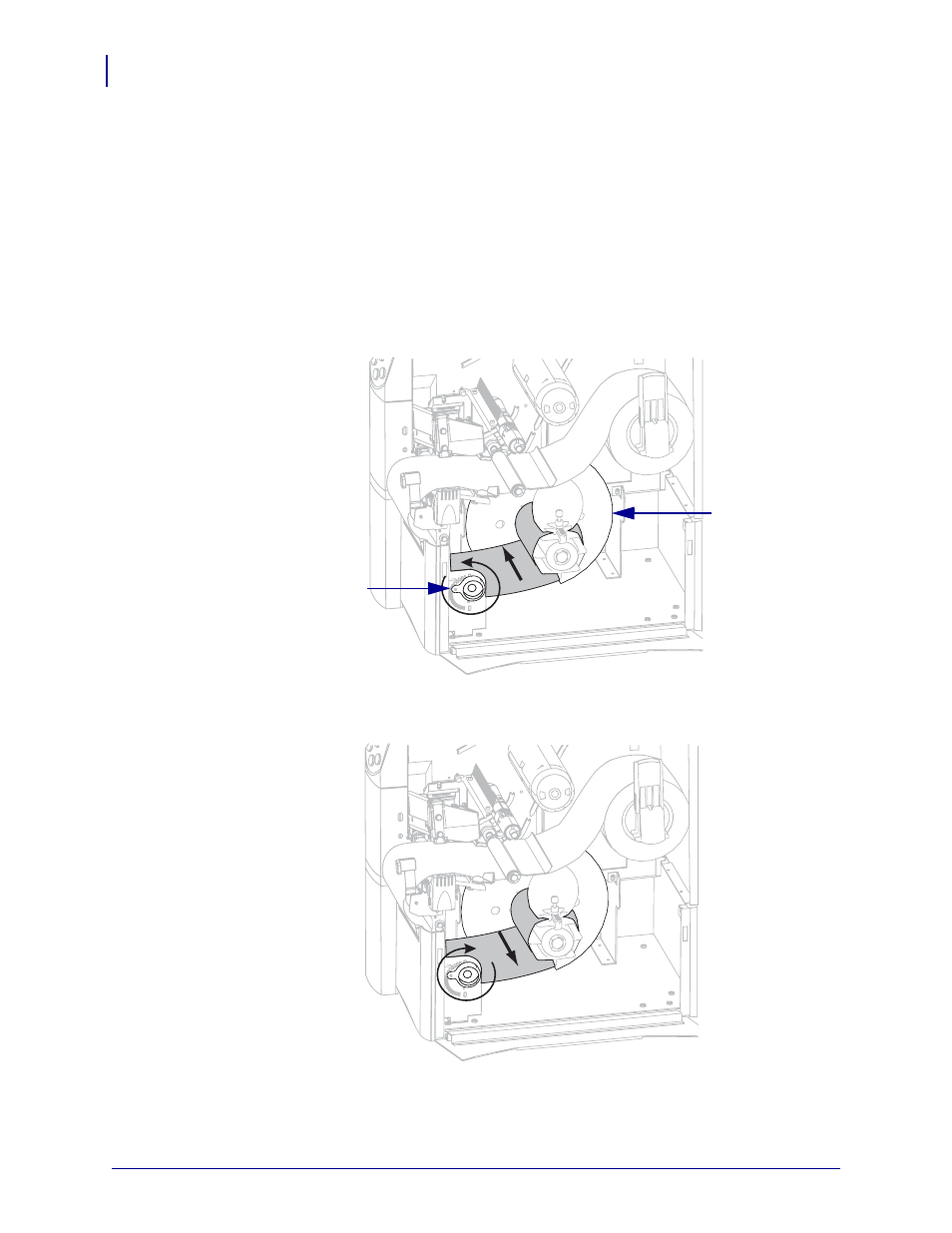

1. Turn the adjustment dial (
1
) clockwise to move the media toward the backplate (
2
).
2. Turn the adjustment dial (
1
) counter clockwise to move the media away from the
backplate (
2
).
1
2
