P a p e r J a m s
C h a p t e r 7 : T r o u b l e s h o o t i n g ❖ 7-31

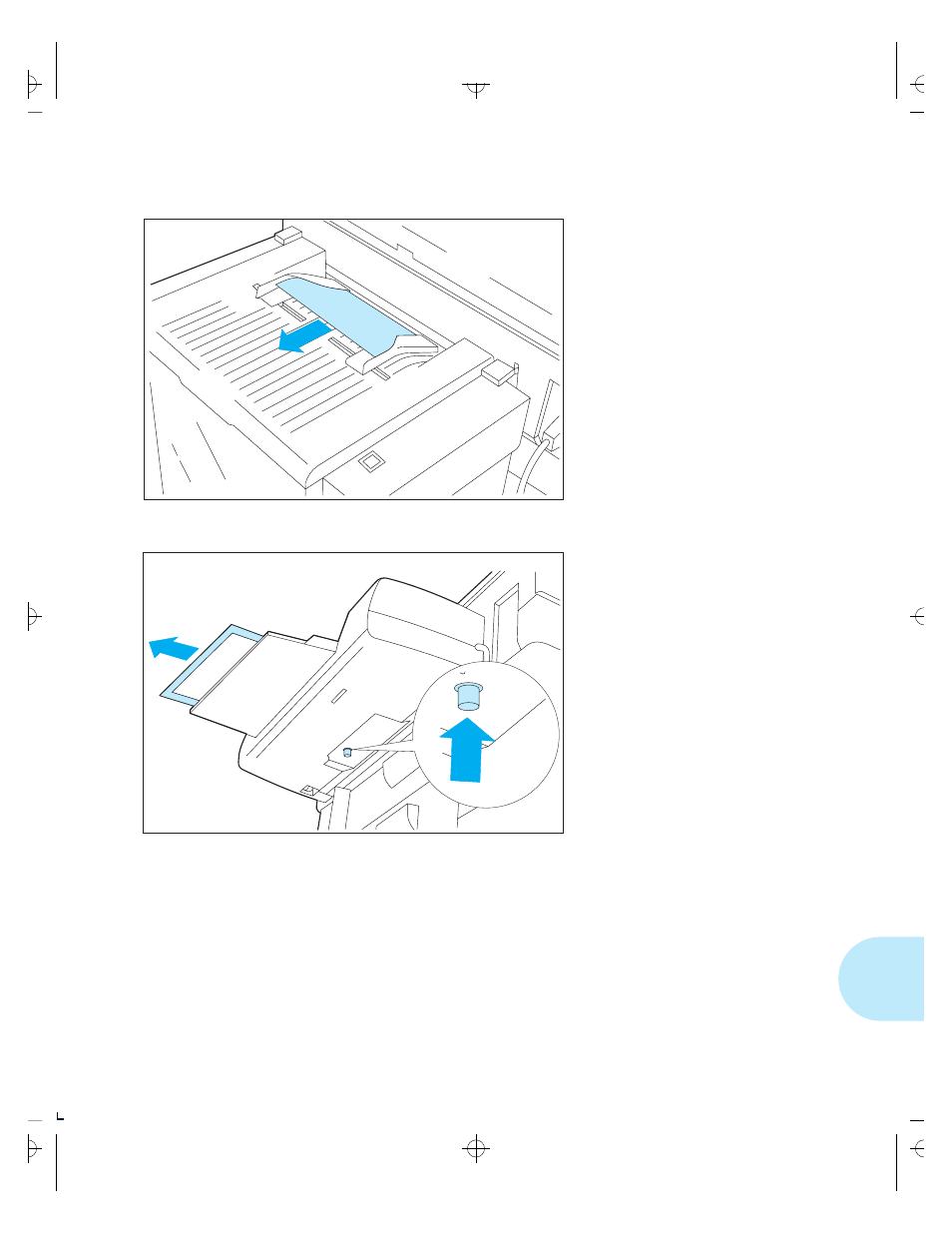

1a If the Single Sheet
Tray feature of the
High-Capacity Feeder
(HCF) is being used,
remove any jammed
paper from the slot by
gently pulling the
paper out of the
printer.
1b If the Multi-sheet
Bypass Feeder (MBF)
is being used, remove
the jammed paper by
pressing the green
paper release button
on the underside of the
feeder while gently
pulling the paper out
of the feeder.
